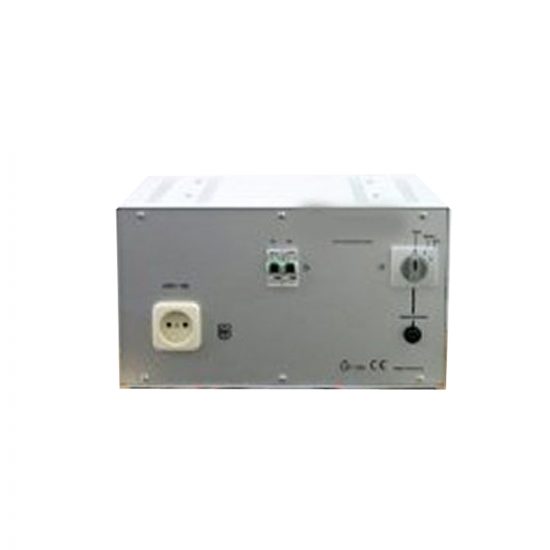

5357.2 Isolation transformer in the housing

AC 230V / 230V / 600VA

Datasheet

Type	5357.2
brief data	AC 230V / 230V / 600VA
description	Isolation transformer in the housing
input voltage	230VAC 50-60Hz
Input/output separation	galvanically isolated, unearthed
output voltage	AC 230V
output current	2.6A
output current duration	2.6A
output power	600VA
continuous power	600VA
short-term resilience	690VA
CV Stability Load 0-100%
CV residual ripple Ueff
settling time
no-load current consumption
connection input	3-pole mains cable with Euro safety plug
connection output	2-pin built-in socket
Device Properties	Isolating transformer in the housing, fuses on the front, illuminated mains switch
cooling	convection
Weight	11
casing	desktop device
Dimensions	183x180x252
Degree of protection/class	IP30/I
color	RAL 7035 light grey/front anodised aluminium
Stability Ua with change Ue
Others
