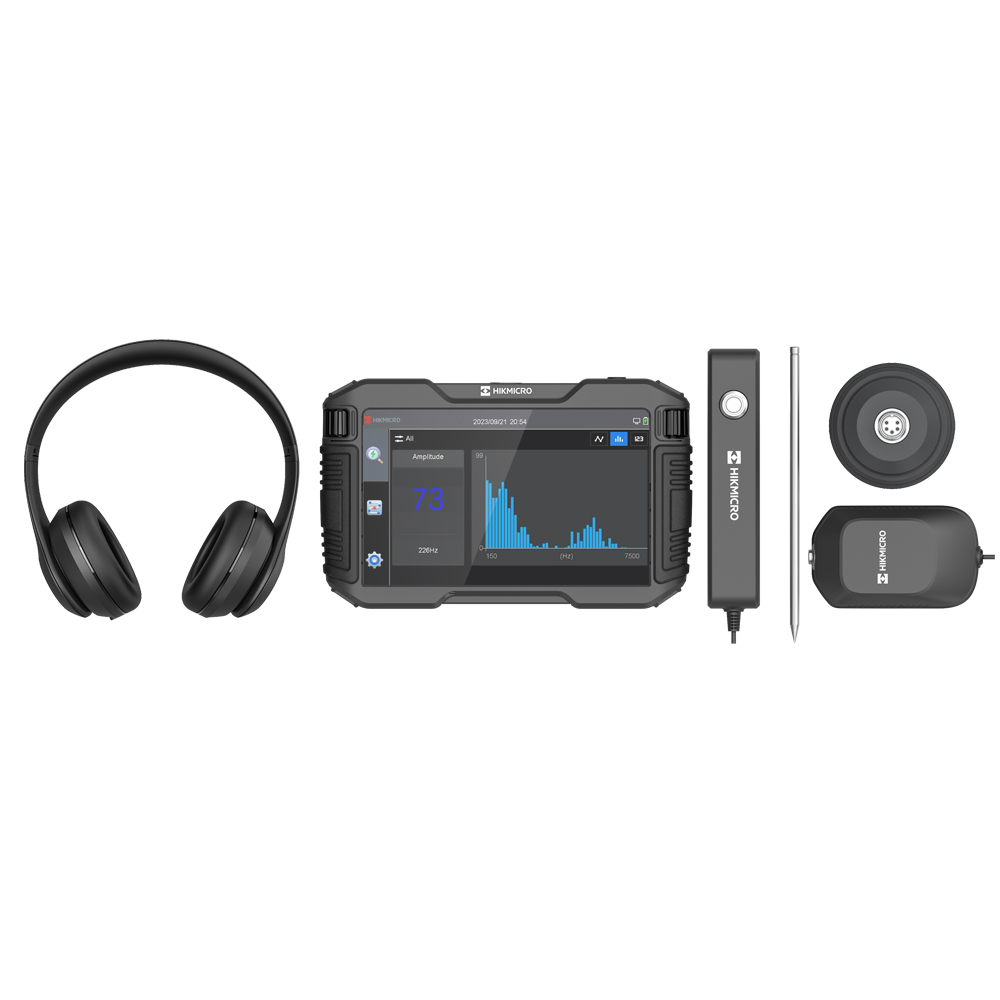

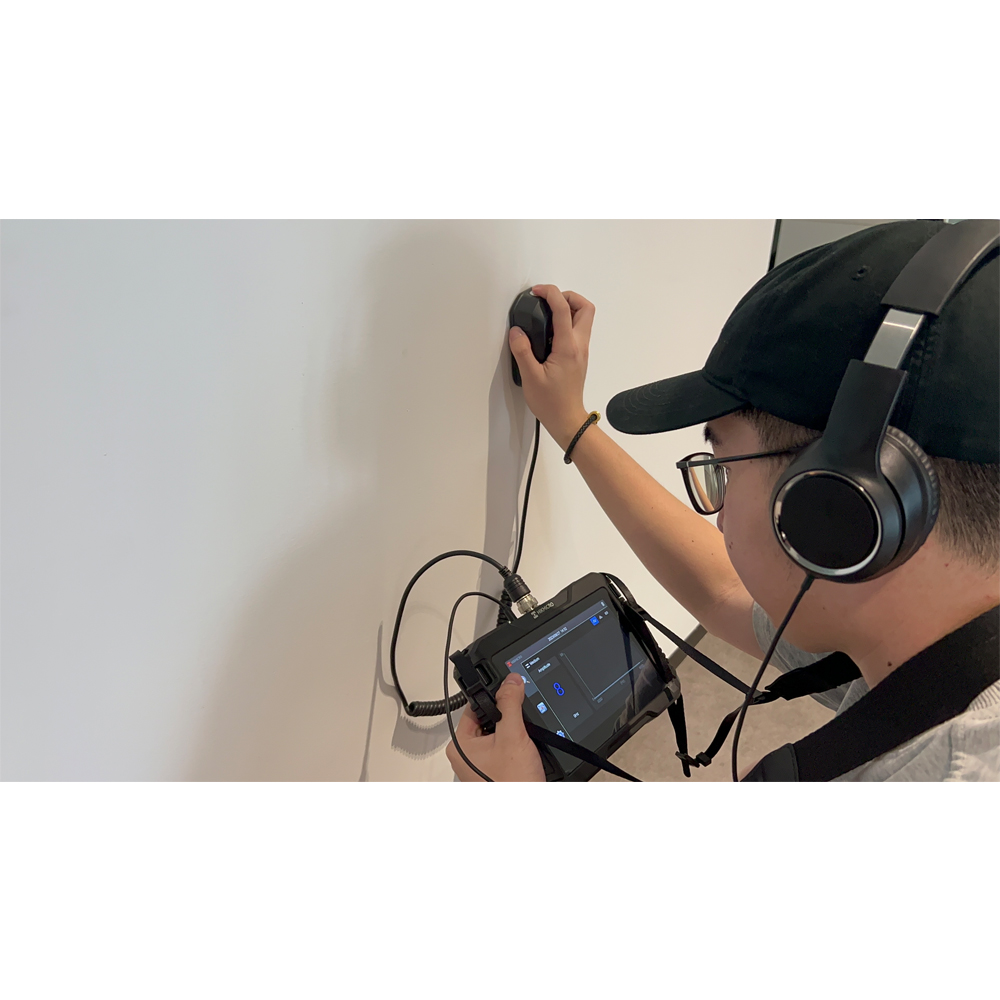

DatasheetThe HIKMICRO Acoustic Leak Detector AD21 is a high-performance device designed for technicians and plumbers
to find leaks in plumbing, water service, and residential or commercial properties. The device has four ranges of
selectable digital bandpass filters, and the amplification is up to 80 dB. The filtration and amplification of the sound
frequencies can help you locate the leakage points accurately. It can be widely used with the handheld sensor and
pick-up sensor correspondingly. Furthermore, it can detect ignored leaks, reducing resource waste and property
loss.
| Acoustic | |
|---|---|
| Frequency range | 150 to 7500 Hz |
| Signal noise ratio | 60 dB |
| Sensitivity | -29 dB, 70 mV/g |

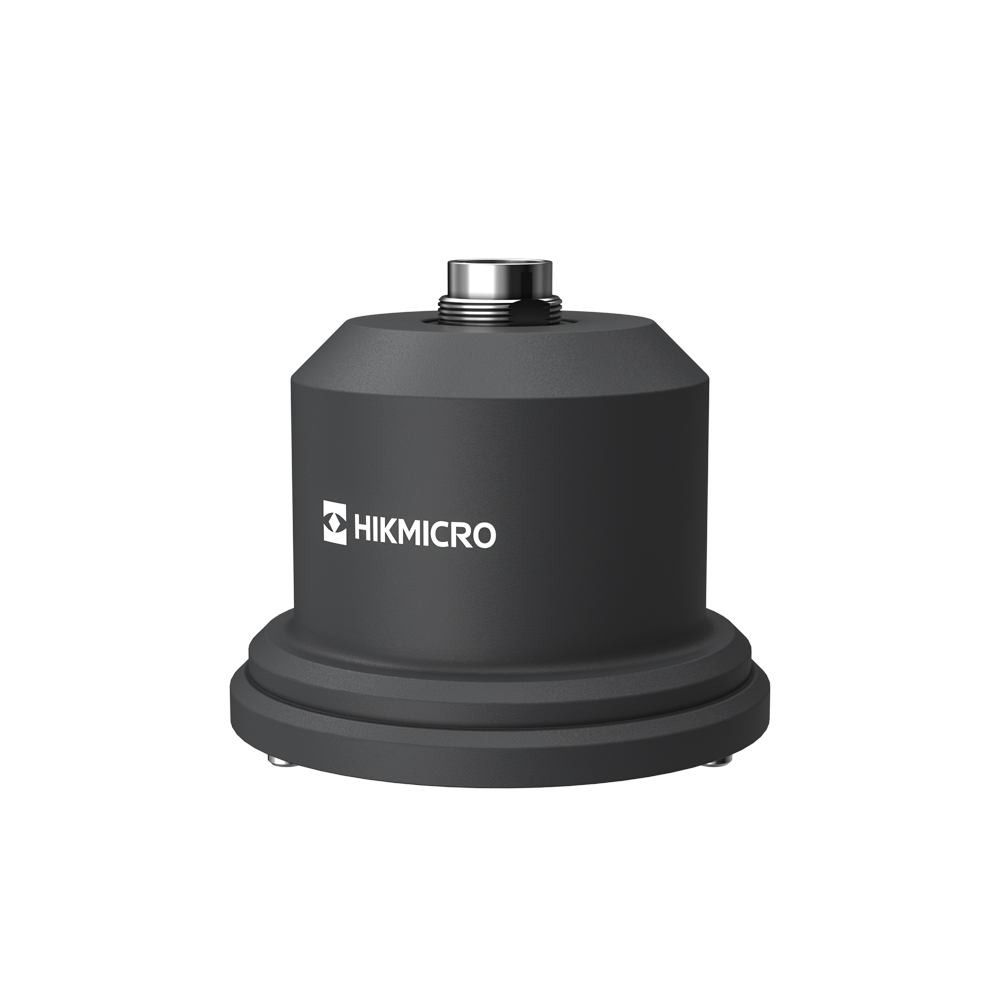

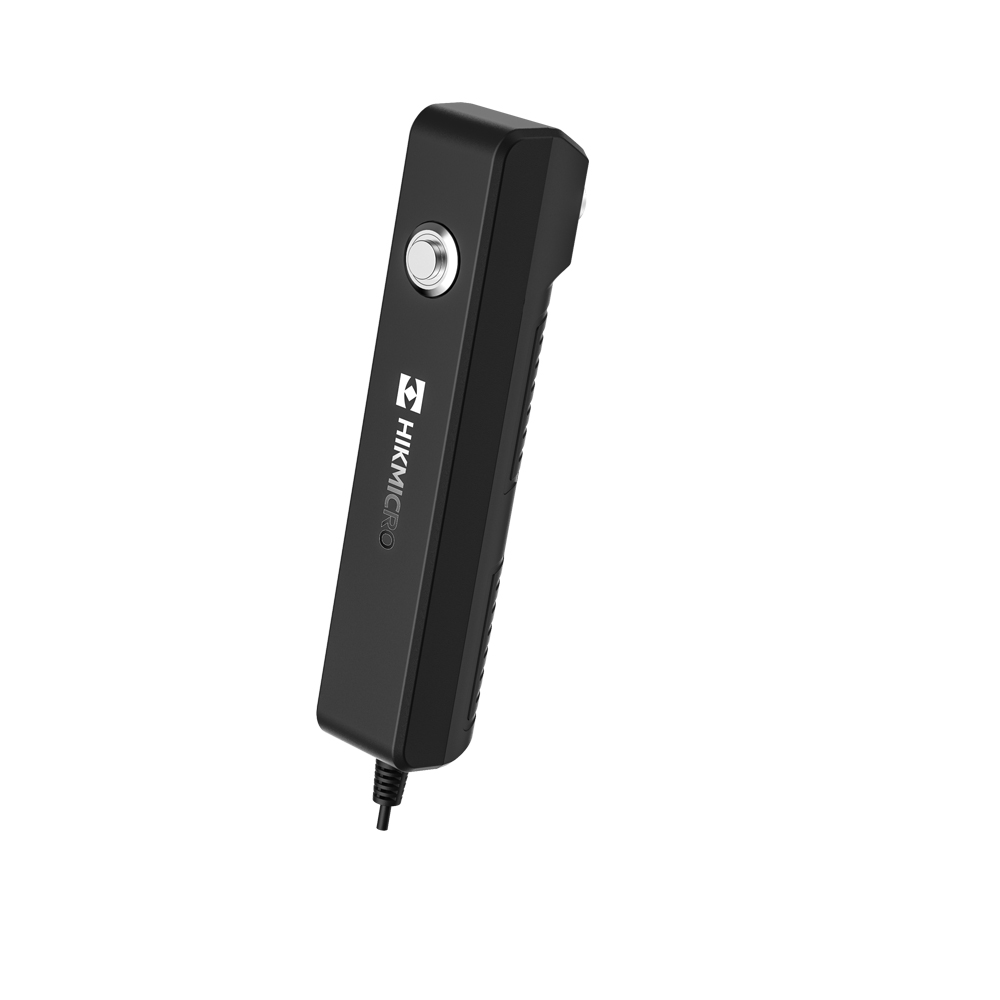

| Sensor | Hand-held sensor, pick-up sensor |
| Band pass filters |
Indoor low frequency: 150 Hz to 3000 Hz Indoor mid-frequency: 3000 Hz to 6000 Hz Indoor high frequency: 4500 Hz to 7500 Hz Indoor all-pass: 150 Hz to 7500 Hz |
| Amplification | 80 dB |
| Image Display | |

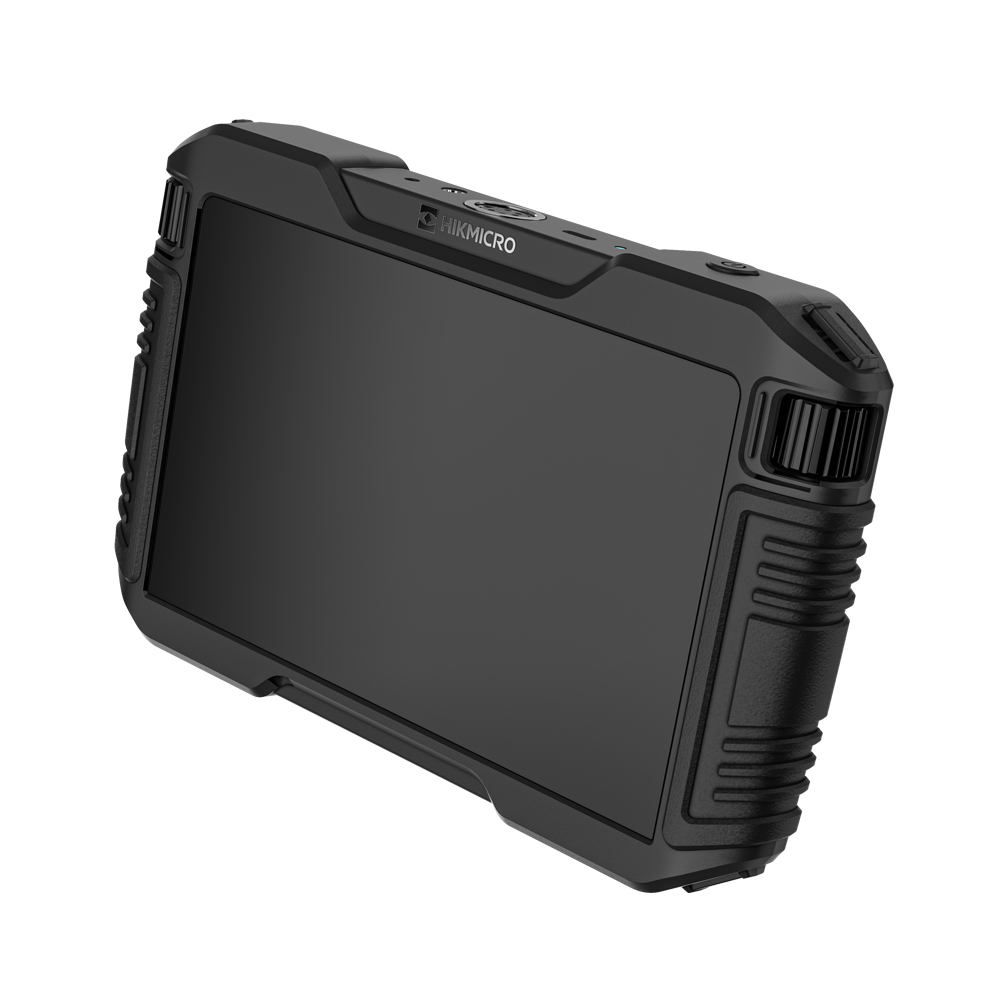

| Display | 1024 x 600 resolution, 7″ LCD touch screen |
| Screen brightness | Manual / Auto |
| Data Storage and Communication | |
| Storage media | Built-in EMMC, 4 GB |
| Audio storage capacity | Approx. 20 hours |
| Audio file format | .wav |
| General | |
| USB interface | USB 2.0, USB Type-C |
| EMC |
EN 55032:2015+A11:2020 EN 50130-4:2011+A1:2014 EN 61000-3-3:2013 |
| Working temperature range | -10 °C to 50 °C |
| Drop test height | 1.2 m |
| Weight |

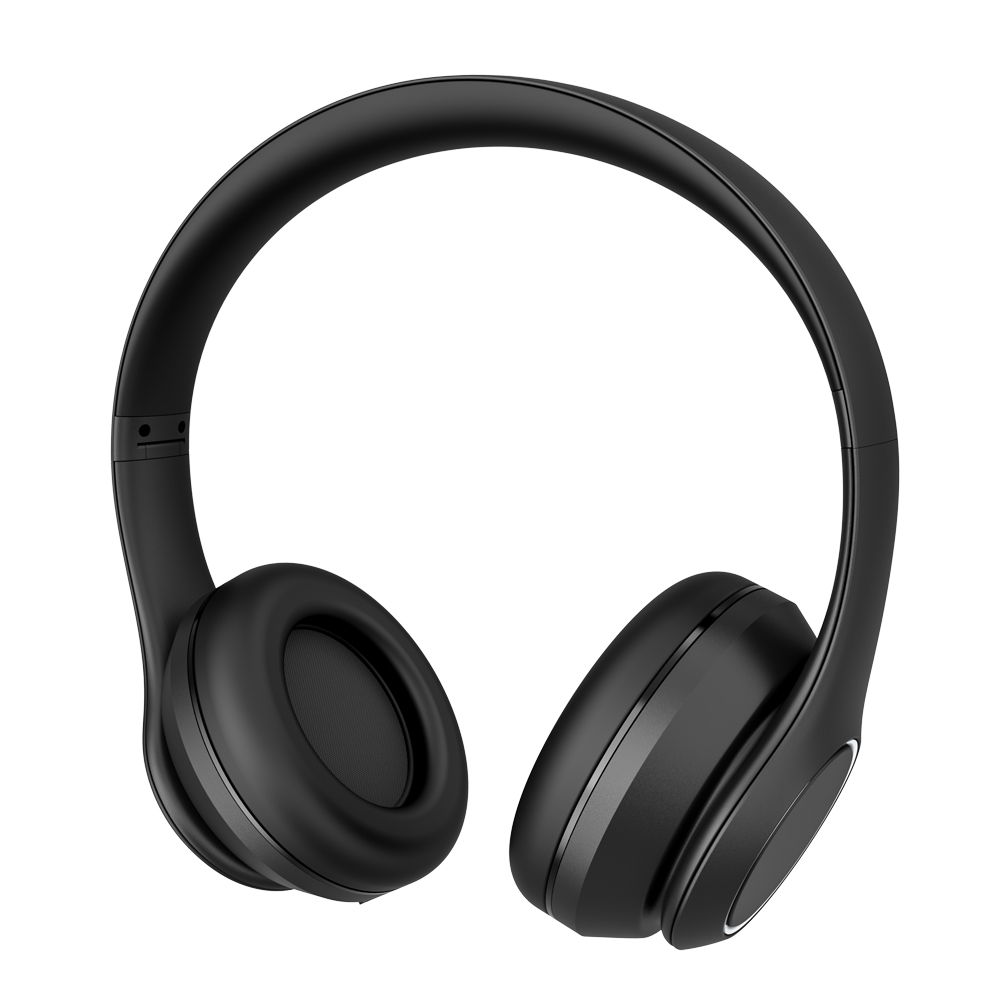

Main unit: 821 g Hand-held sensor: 239 g Pick-up sensor: 490 g Headset: 214 g Standard package: 3000 g |
| Storage temperature range | -40 °C to 70 °C |
| Relative humidity | <90 %, non-condensing |
| Battery type | Rechargeable Li-ion battery |
| Battery operating time | ≥11 hours |
| Battery charging time | 3 hours to 90 %, 6 hours to full charge |
| Protection level |
Main unit: IP40 Hand-held sensor: IP54 Pick-up sensor: IP66 |
