The IPW5.020X.1W70 can directly detect sensor sizes based on strain gauges and is particularly suitable for the weighing technoloy due to its 6-wire-system. The device has a very high input resistance, so that even highly resistive measuring bridges can be detected correctly. It is equipped with a regulated 10 V bridge supply. The 5-digit LED display presents the measurements, respectively the scaled value of the measured variable. Optionally available are 4 changeover relays for the monitoring of limit values, the interfaces RS232/RS485 for data transfer to/from the device and analog outputs 0-10 VDC, 4-20 mA or 0-20 mA for further evaluation.

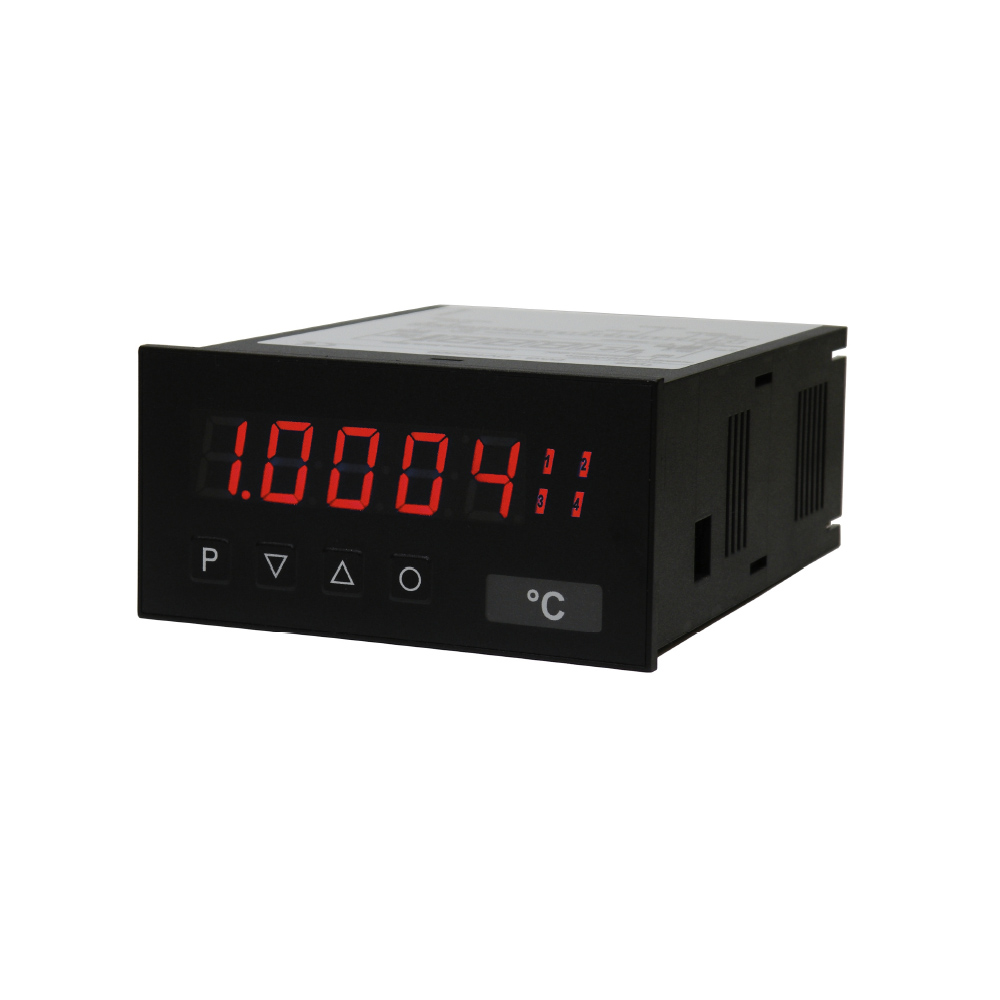

Digital meter IPW5 Weighing technology 96 x 48 mm
| Housing | 96 x 48 mm |
| Display | 5-digit 14 mm digit height Colour: red |
| Range displayed | -9999…99999 |
| Operation | front panel keyboard protection class IP65 |
| Input | Strain gauge / Weighing technology: 1mV/V, 2 mV/V, 3,3 mV/V frei bis 6 mV/V Digital input: <2.4V OFF, >10V ON, max. 30 VDC |
| Analogue Output | 0-20 mA Burden ≤500Ohm 12Bit 4-20 mA Burden ≤500Ohm 12Bit 0-10 VDC Burden ≥100kOhm 12Bit |
| Switch point | 2 or 4 relays (change-over contacts) 250 V / 5 AAC, 30 V / 5 ADC |
| Interface | RS232 or RS485 galvanic isolated |
| Power supply | 100-240 VAC 50/60 Hz / DC +/- 10% 10-40 VDC / 18-30 VAC 50/60Hz |
| Sensor supply | Bridge supply 10 VDC / 20-50 mA / 200-500 Ohm |
| Software properties |
|
