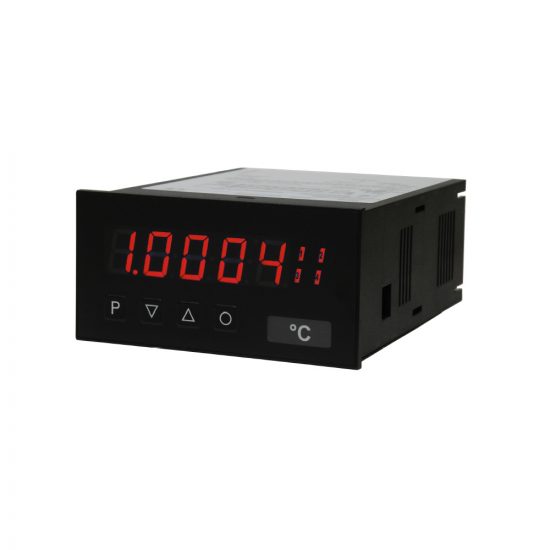

The IM3-1WR5B.020X.S70xD is a 5-digit meter for measuring power/weight via strain gauges or weighing cells and a visual
limit value monitoring via the display. It is configurable via 4 front keys or via PM-TOOL, our optional PC-software. Optional the interfaces RS232/RS485, two analog outputs and up to 8 switching points are available. Selectable software functions and a direct limit value adjustment in operating mode complete the modern device concept.
Housing | 96 x 48 mm |
Display | 5-digit 14 mm digit height Colour: red, green, orange or blue display |
Range displayed | -19999 to 99999 |
Operation | front panel keyboard protection class IP65 |
Input | DMS / Weighing technology: 1mV/V, 2 mV/V, 3.3 mV/V free to 4 mV/V Digital input: <2.4V OFF, >10V ON, max. 30 VDC |
Analogue Output | 2 analog outputs 0/4-20 mA / 0-10 VDC / 16 Bit |
Switch point | 2 or 4 relays (change-over contacts) 250 V / 5 AAC, 30 V / 5 ADC or 8 PhotoMos outputs (NOC) 30 V / 0.4 A AC/DC |
Interface | RS232 or RS485 galvanic isolated Alternatively to analog output 2 |
Power supply | 100-240 VAC 50/60 Hz / DC +/- 10% 10-40 VDC / 18-30 VAC 50/60Hz |
Sensor supply | Bbridge feeding 10 VDC / 2-40 mA / 300-5000 Ohm |
Software properties |
|
