Digital indicator IM2 weighing technology 96 x 48 mm mV/V


Housing 96 x 48 mm
Display 5-digit
14 mm digit height
Colour: red, green, orange or blue display
Range displayed -19999 to 99999
Operation front panel keyboard protection class IP65
Input DMS / Weighing technology: 1 mV/V, 2 mV/V, 3.3 mV/V free to 4 mV/V
Digital input: <2.4V OFF, >10V ON, max. 30 VDC
Analogue Output –
Switch point 2 relays (change-over contact)
250 V / 5 AAC, 30 V / 5 ADC
Interface –
Power supply 230 VAC
10-30 VDC galvanic isolated
Other voltage supplies on demand!
Sensor supply Bbridge feeding 10 VDC / 2-40 mA / 300-5000 Ohm
Software properties
  • min/max-memory with adjustable permanent display
  • 30 additional adjustable supporting points
  • display flashing at threshold value exceedance/undercut
  • zero-key for triggering of Hold, Tara or setpoint setting
  • standard digital input for triggering of Hold, Tara or setpoint setting
  • flexible alarm system with adjustable delay times
  • mathematical functions like reciprocal value, square root, squaring and rounding
  • sliding averaging
  • brightness control via parameter or front keys
  • programming interlock via access code
Datasheet
User Manual
Add to your Quote List

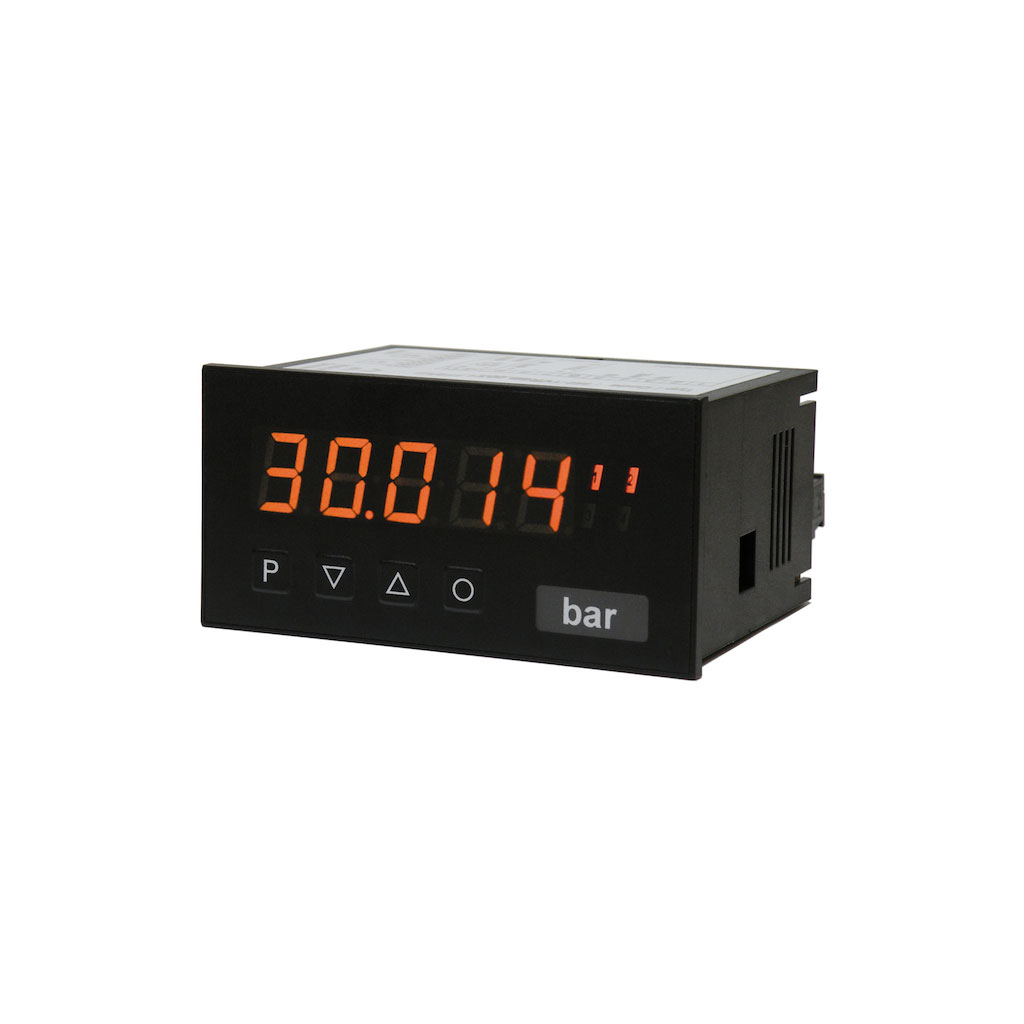

The IM2-1WR5B.020X.570xD is a 5-digit meter for power/weight measuring via strain gauges or weighing cells and a visual limit value monitoring via the display. The configuration happens via 4 front keys or the optional PC-software PM-TOOL. For further evaluations two switching points are optional available. Several selectable software functions, a direct limit value adjustment in operating mode and the compact installation depth of 89 mm create a solid device concept.

Housing 96 x 48 mm
Display 5-digit
14 mm digit height
Colour: red, green, orange or blue display
Range displayed -19999 to 99999
Operation front panel keyboard protection class IP65
Input DMS / Weighing technology: 1 mV/V, 2 mV/V, 3.3 mV/V free to 4 mV/V
Digital input: <2.4V OFF, >10V ON, max. 30 VDC
Analogue Output –
Switch point 2 relays (change-over contact)
250 V / 5 AAC, 30 V / 5 ADC
Interface –
Power supply 230 VAC
10-30 VDC galvanic isolated
Other voltage supplies on demand!
Sensor supply Bbridge feeding 10 VDC / 2-40 mA / 300-5000 Ohm
Software properties
  • min/max-memory with adjustable permanent display
  • 30 additional adjustable supporting points
  • display flashing at threshold value exceedance/undercut
  • zero-key for triggering of Hold, Tara or setpoint setting
  • standard digital input for triggering of Hold, Tara or setpoint setting
  • flexible alarm system with adjustable delay times
  • mathematical functions like reciprocal value, square root, squaring and rounding
  • sliding averaging
  • brightness control via parameter or front keys
  • programming interlock via access code








IM2 – 5-stelliges digitales Einbauinstrument in 96x48 mm (BxH). DMS-Verstärker – Wägetechnik
