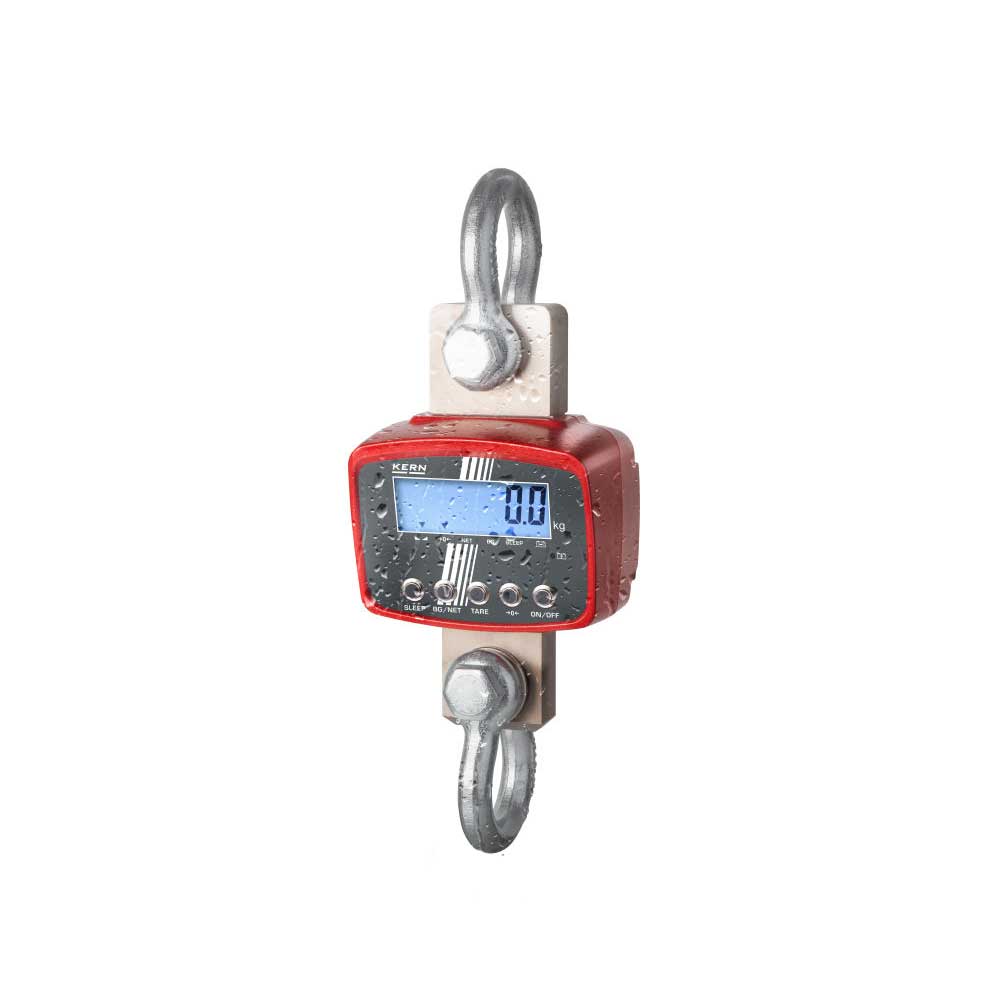

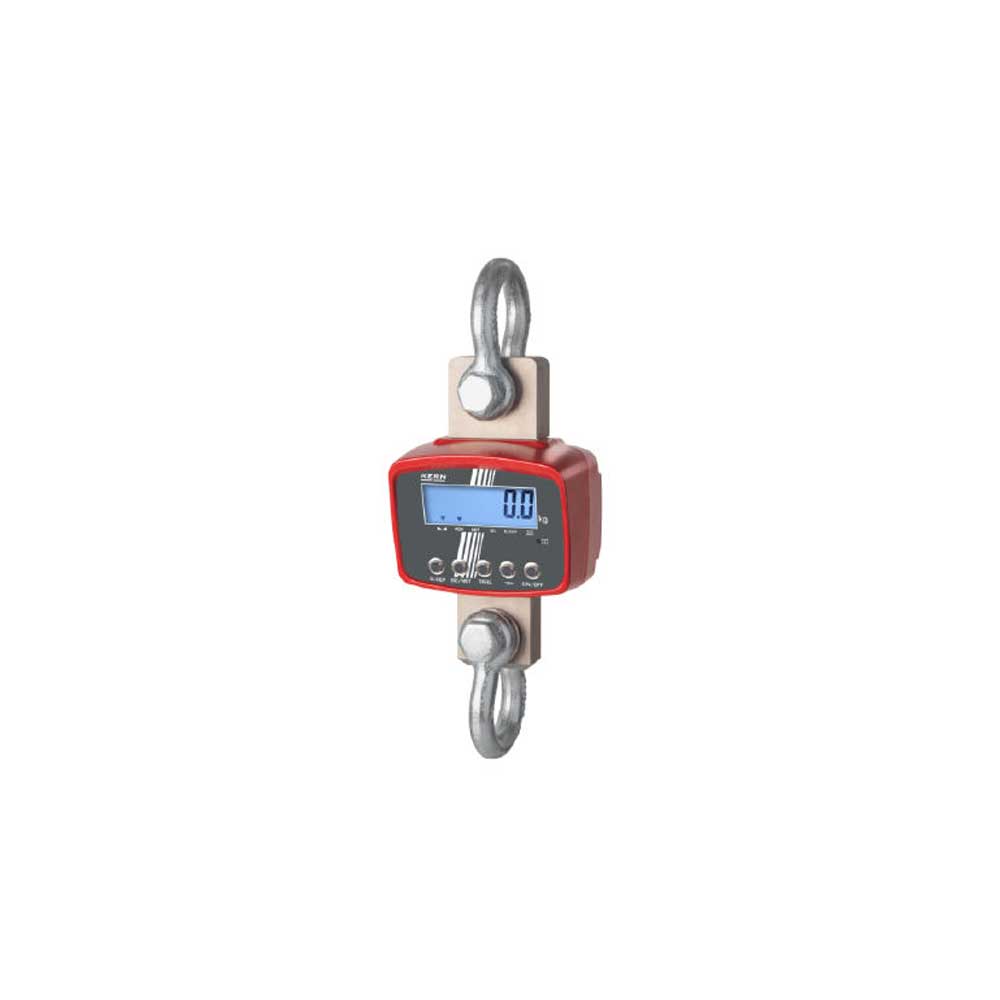

HFD Robust, high-resolution crane scale up to 12 t


  • Superior display size: digit height 30 mm, bright backlight for easy reading of weighing results, even in poor lighting conditions

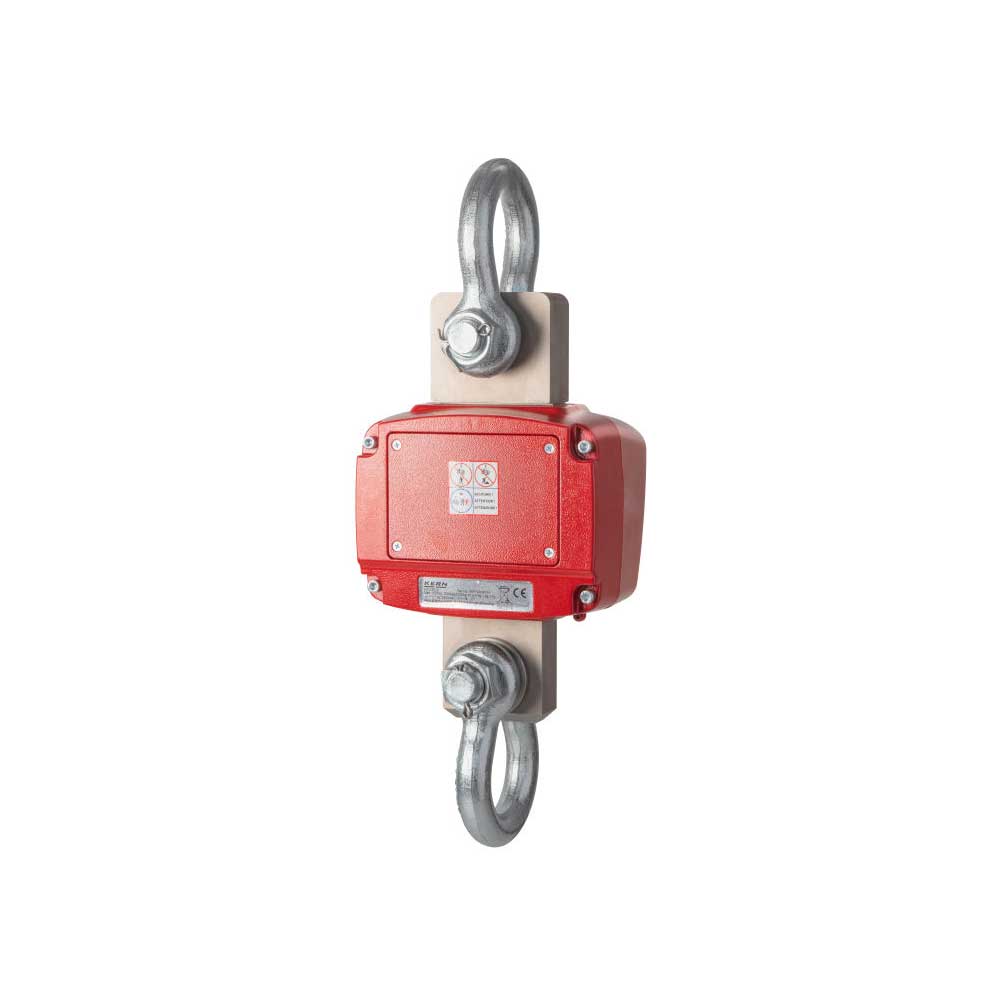

  • Rechargeable battery pack internal, standard, operating time up to 70 h without backlight. Battery pack accessible from the outside, which means it is easy to replace
  • Precision: 0.2 % from [Max]
  • Permissible ambient temperature -10 °C/40 °C
Datasheet
User Manual
Add to your Quote List



  • The models with M add-on have EC type approval and because of this they are ideal for use in verified applications such as, for example, calculation of a total price, based on weight
  • Will support you when weighing freight in a SOLAS compliant manner
  • With the TÜV certification mark, the scale meets the requirements of the standard EN 13155 (Non-fixed load lifting attachments) and EN 61010-1 (Electrical safety)

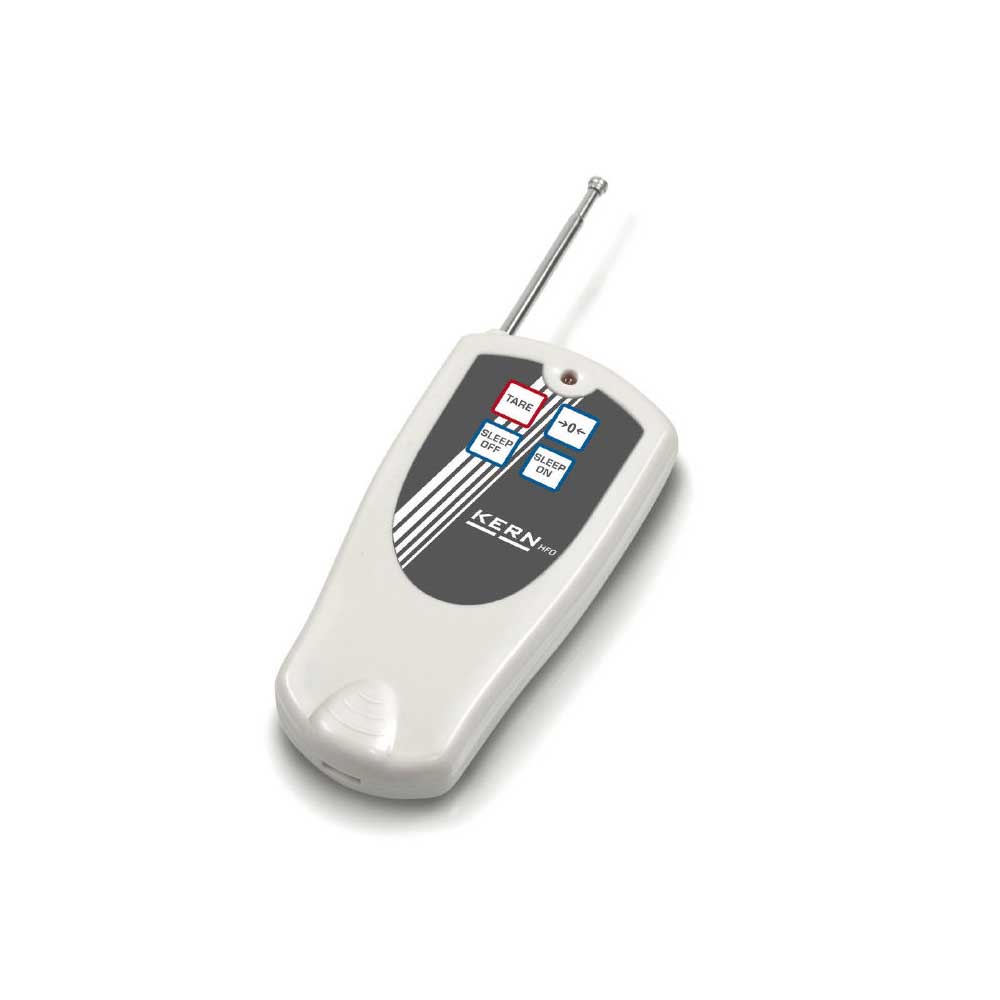

  • Radio remote control standard. Radio range up to 20 m. All functions can be selected. Batteries included
  • The models with IP67 add-on have special spray and dust protection to IP67 and because of this they are ideal for use in harsh environments
  • Because of its stable construction and robust design, it is ideal for continuous use in industrial environment
  • Hold function: When the weighing value remains unchanged the weight indicated on the display is automatically ”frozen” until the HOLD key is pressed
  • Tare: Resets the display to “0” when there is a load on the scale. Now removed or added loads are directly displayed
  • Solid shackles, non-revolving



Model

Weighing
range
[Max] kg

Readout

[d] g

A

mm


B

mm


C

mm


D

mm


E

mm


F

mm


G

mm


Option
DAkkS
Calibration
Certificate

Option
Verification


Triple-range balance (T=Triple) switches automatically to the next largest weighing range [Max.] and readout [d].
HFD 600K-1
150 | 300 | 600
50 | 100 | 200
194
129
145
421
383
50,8
50,8
1
0
HFD 1T-4
300 | 600 | 1500
100 | 200 | 500
194
129
145
421
383
50,8
50,8
1
0
HFD 3T-3
600 | 1500 | 3000
200 | 500 | 1000
194
129
145
421
383
50,8
50,8
1
0
HFD 6T-3
1500 | 3000 | 6000
500 | 1000 | 2000
194
129
145
477
426
68,3
68,3
1
0
HFD 10T-3
3000 | 6000 | 12000
1000 | 2000 | 5000
194
129
145
573
510
82,5
82,5
1
0
protection against dust and water splashes IP67
HFD 600K-1IP
150 | 300 | 600
50 | 100 | 200



421
383
50,8
50,8
1
0
HFD 1T-4IP
300 | 600 | 1500
100 | 200 | 500



421
383
50,8
50,8
1
0
HFD 3T-3IP
600 | 1500 | 3000
200 | 500 | 1000



421
383
50,8
50,8
1
0
HFD 6T-3IP
1500 | 3000 | 6000
500 | 1000 | 2000



477
426
68,3
68,3
1
0
HFD 10T-3IP
3000 | 6000 | 12000
1000 | 2000 | 5000



573
510
82,5
82,5
1
0
Note: For applications that require verification, please order verification at the same time, initial verification at a later date is not possible. Verification at the factory, we need to know the full address of the location of use.
HFD 600K-1M
600
200
194
129
145
421
383
50,8
50,8
1
1
HFD 1T-4M
1500
500
194
129
145
421
383
50,8
50,8
1
1
HFD 3T-3M
3000
1000
194
129
145
421
383
50,8
50,8
1
1
HFD 6T-3M
6000
2000
194
129
145
477
426
68,3
68,3
1
1
HFD 10T-3M
12000
5000
194
129
145
573
510
82,5
82,5
1
1








HFD Robust, high-resolution crane scale up to 12 t
HFD Robust, high-resolution crane scale up to 12 t - Image 2
HFD Robust, high-resolution crane scale up to 12 t - Image 3
HFD Robust, high-resolution crane scale up to 12 t - Image 4
HFD Robust, high-resolution crane scale up to 12 t - Image 5
HFD Robust, high-resolution crane scale up to 12 t - Image 6
