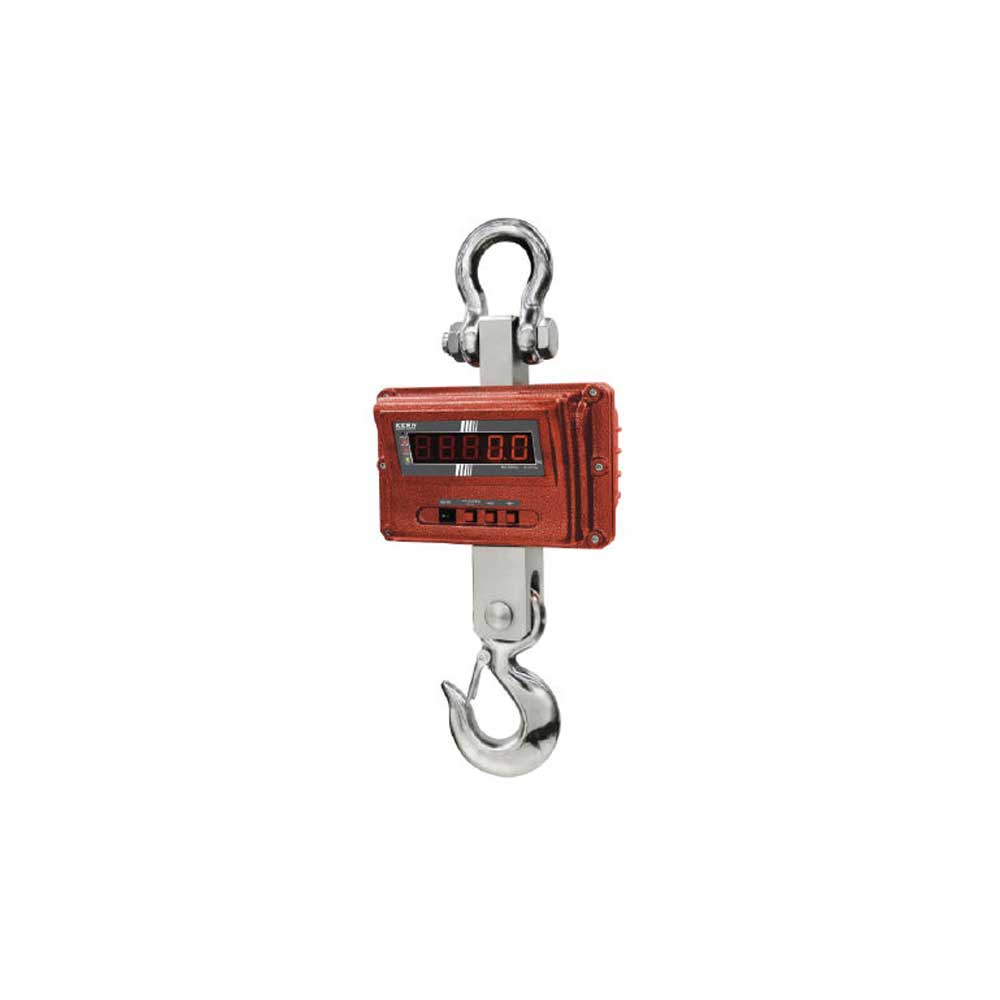

Crane scale HFM – Robust industrial crane scale with bright LED display for optimum reading in unfavourable ambient conditions

The scale meets the requirements of the standard EN 13155 (Non-fixed load lifting attachments/Breakage resistance) and EN 61010-1 (Electrical safety)
Professional device for robust applications in production, quality control, logistics etc. Because of its stable construction and robust design, it is ideal for continuous use in industrial applications
High mobility: thanks to battery operation, compact construction and low weight, it is suitable for use in several locations (production, warehouse, dispatch department etc.)
Adaptation to unstable environmental conditions by changing the readout
High resolution readout: Read-out [d] for 5 sec increased by one decimal place at the touch of a key, only for models with EC type approval
Hold function: When the weighing value remains unchanged the weight indicated on the display is automatically “frozen” until the HOLD key is pressed
Tare: Resets the display to “0” when there is a load on the scale. Now removed or added loads are directly displayed
Hook with safety catch, revolving

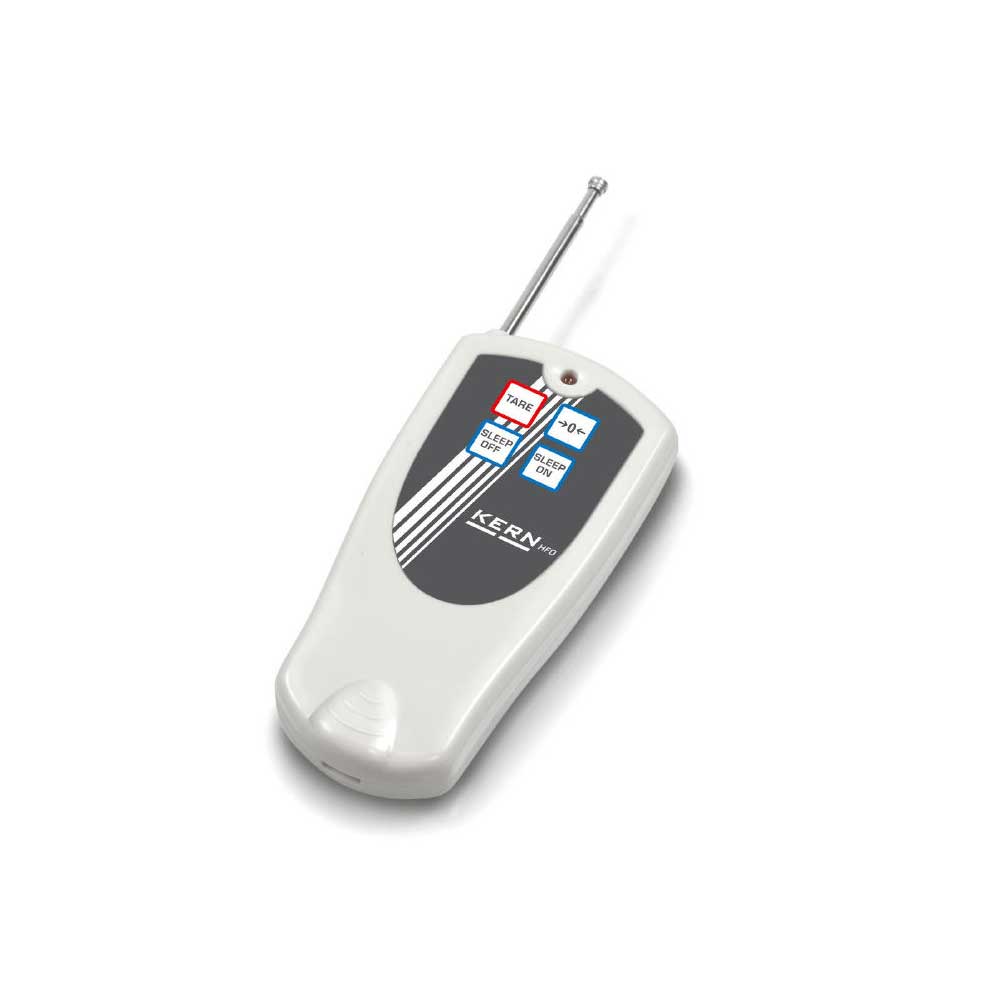

Radio remote control standard. Range approx. 20 m. All functions can be selected (excl. ON/OFF). W×D×H 48×10×95 mm. Batteries included, 2×1,5 V AAA
Rechargeable battery pack internal, standard, operating time up to 50 h without backlight, charging time approx. 14 h
Superior display size, digit height 30 mm, bright with high contrast for the easy reading of weighing results, even under poor lighting conditios

Datasheet
User Manual

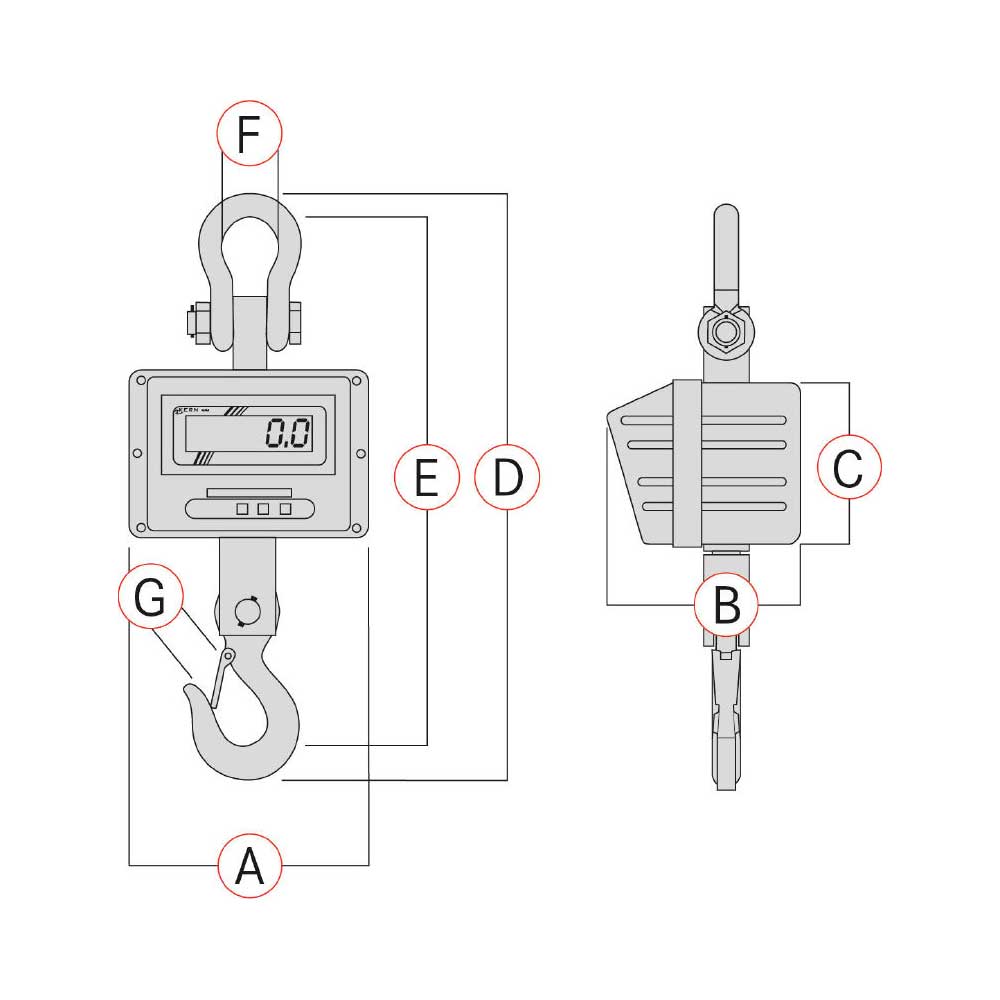

Model	Weighing capacity [Max] kg	Readability [d] g	A mm	B mm	C mm	D mm	E mm	F mm	G mm	Option DAkkS Calibration Certificate
HFM 1T0.1	1000	100	270	200	175	610	540	68	40	1
HFM 3T0.5	3000	500	270	200	175	610	540	74	40	1
HFM 5T0.5	5000	500	300	230	190	730	650	74	55	1
HFM 10T1	10000	1000	300	230	190	840	750	92	60	1
