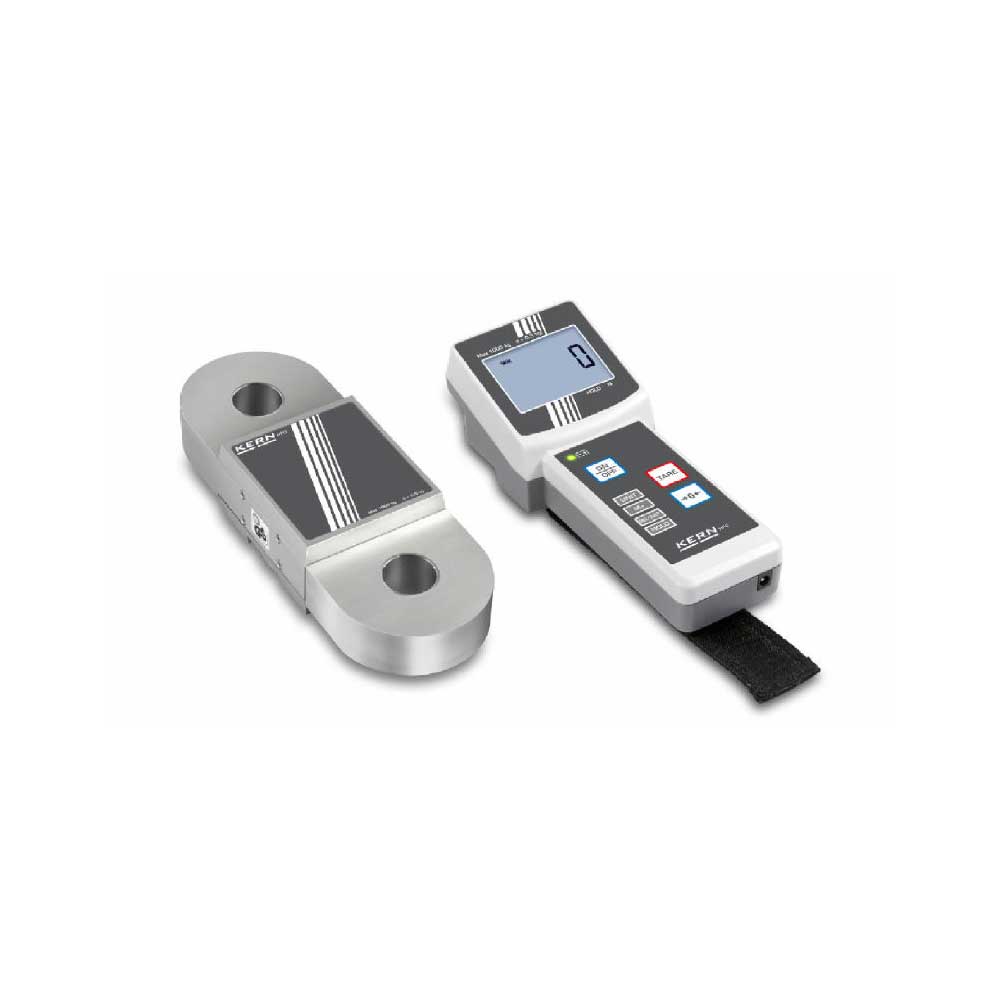

Tensile force gauge HFC – Compact crane scale for use in harsh environmental conditions or where space is limited, with convenient hand-held terminal

The scale meets the requirements of the standard EN 13155 (Non-fixed load lifting attachments/Breakage resistance) and EN 61010-1 (Electrical safety)
With its high-quality finish, low weight and compact dimensions, this crane scale (tensile force gauge) is an essential device for industrial use, on building sites, in freight centres, ports etc.
Because of its compact design it is also ideally suited for installation in systems where space is limited, etc.
Peak load display (peak hold)
Hold function: When the weighing value remains unchanged the weight indicated on the display is automatically “frozen” until the HOLD key is pressed
Tare: Resets the display to “0” when there is a load on the scale. Now removed or added loads are directly displayed
Display device with integrated radio module, which the user can carry around with him, thanks to the convenient hand strap. In this way the weighing data can always be read off the display device by the user, even when the user is a long way from the load receptor (force gauge) or under poor lighting conditions. Standard. Range up to 20 m. All functions can be selected. LCD display, digit height 23 mm, Rechargeable battery pack internal, standard. operating time up to 80 h without backlight, charging time approx. 12 h. Can be re-ordered, KERN HFC-A01

Datasheet
User Manual

Dimensions Housing (display device) W×D×H 88×64×256 mm
Material and design of housing/load support, models with
- [Max] ≤ 3 t: aluminium/stainless steel bearing
- [Max] > 3 t: steel/steel

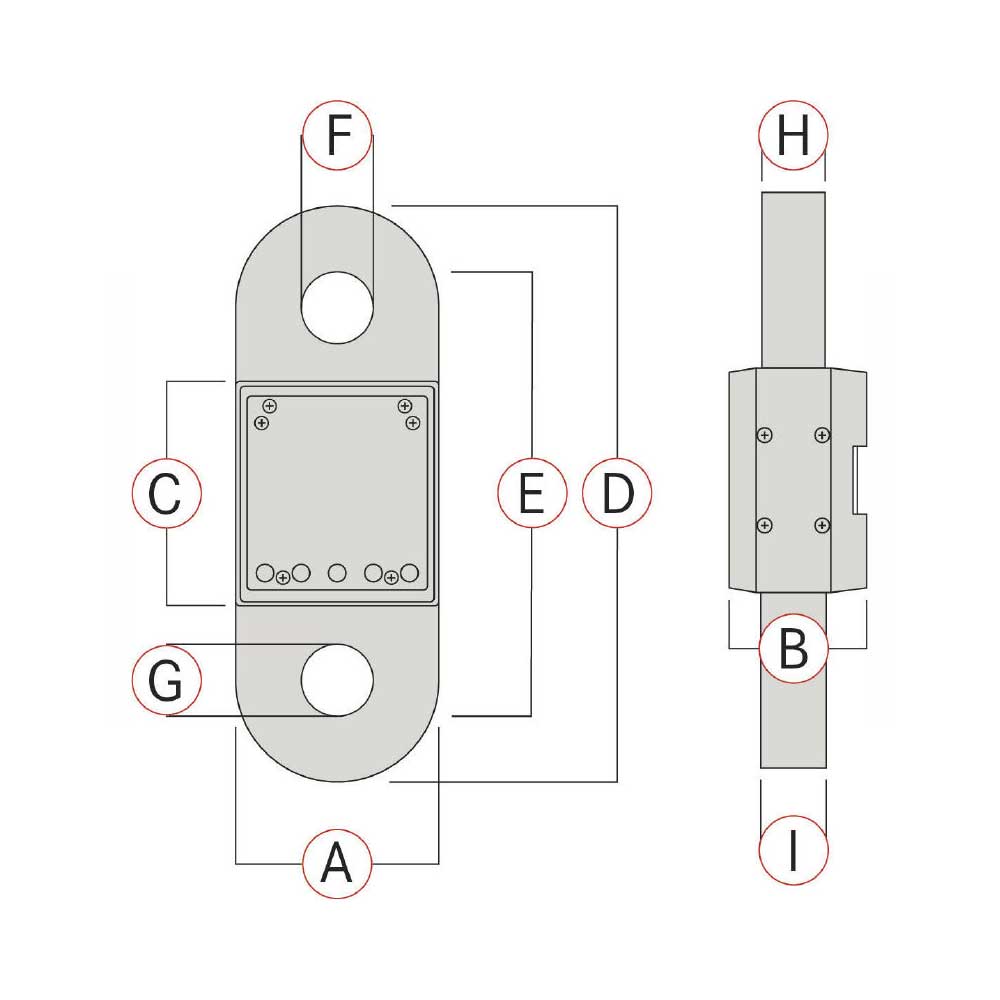

Model	Weighing capacity [Max] kg	Read- ability [d] g	A mm	B mm	C mm	D mm	E mm	F=G mm	Option DAkkS Calibration Certificate
HFC 600K-1	600	200	90	55	99,5	255	165	27	1
HFC 1T-4	1000	500	90	55	99,5	255	165	27	1
HFC 3T-3	3000	1000	90	61	99,5	255	165	27	1
HFC 5T-3	5000	2000	90	61	99,5	255	165	30	1
HFC 10T-3	10000	5000	90	71	99,5	275	185	40	1
