HySense PR101 – Pressure Sensor
- Measuring principle piezo-resistive (poly-cristalline silicon thin fi lm structure on a high-grade steel membrane)
- Pressure type relative pressure
- Output signal 0 … 20 mA
- Electrical measuring connector 6 pole device connector, M16 x 0.75
- Mechanical measuring connector MINIMESS® direct connector, series 1620
- Protection type (EN 60529 / IEC 529) IP 65
- Material casing non-corrosive high-grade steel
- Material membrane non-corrosive high-grade steel
- Weight ~ 85 g
 Datasheet
|
Technical advice: 03303 / 50 40 66
Technical advice for this product
Related Products
WIKA CPT6100, CPT6180 Precision pressure sensor

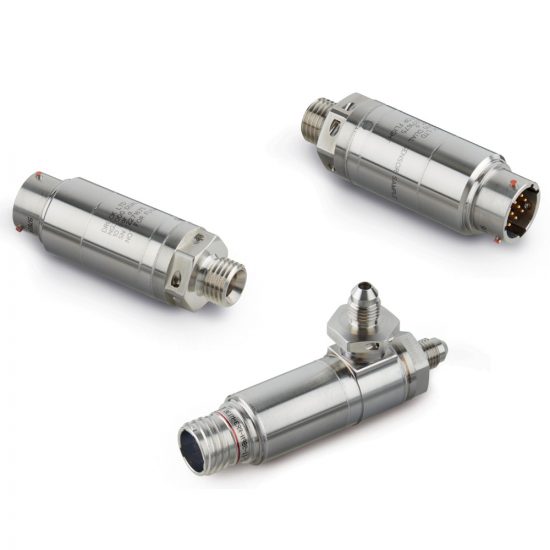

Druck NG3000 – Aerospace Pressure Sensor

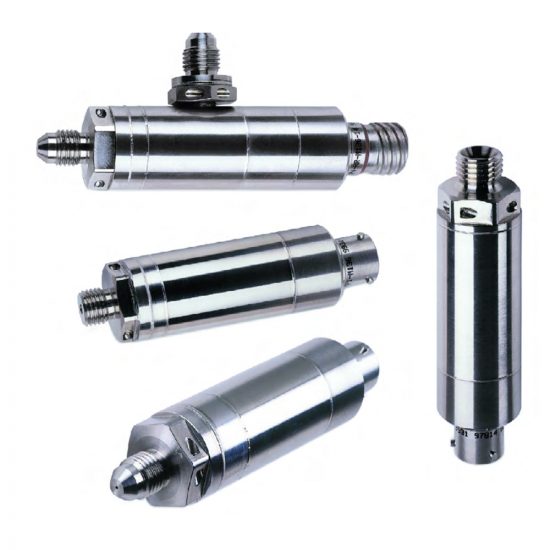

PTX/PMP 3000 Series – Amplified Pressure Transducers for Aerospace Applications

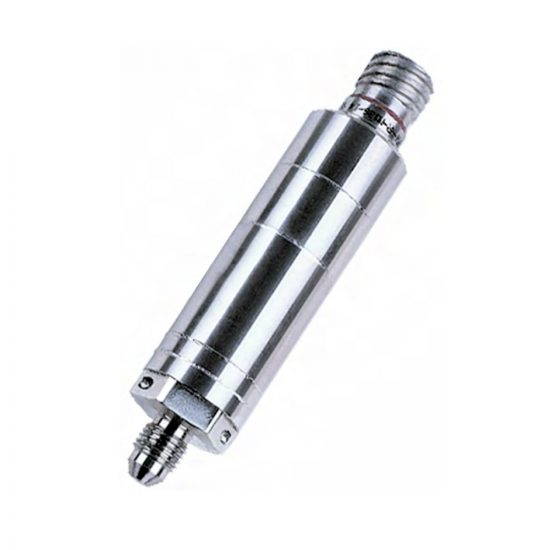

PMP3700 Test sensors for aerospace

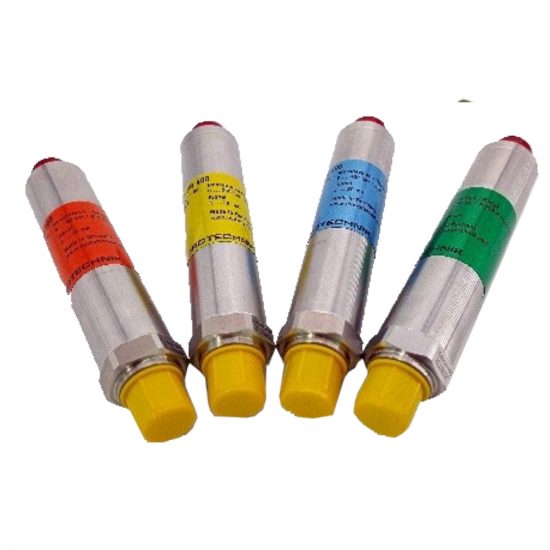

HySense® PR 400 E5 – • Piezoresistive pressure sensor

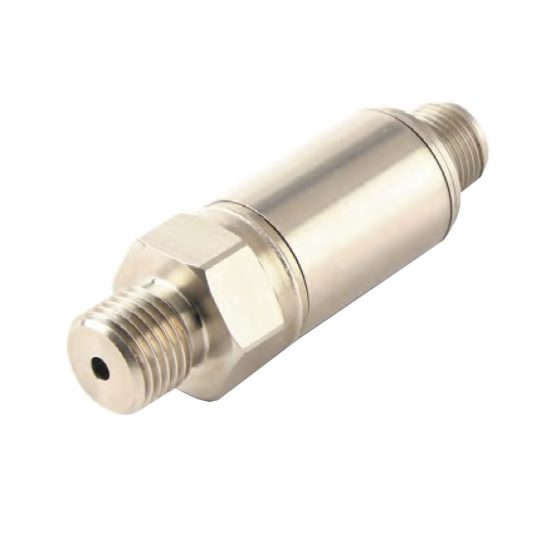

ADROIT6000 Series Pressure Sensor
UNIK 5000H – Analog Hydrogen Focused Pressure Sensor
UNIK 5900 SIL – High-Accuracy Pressure Sensor with SIL Certification

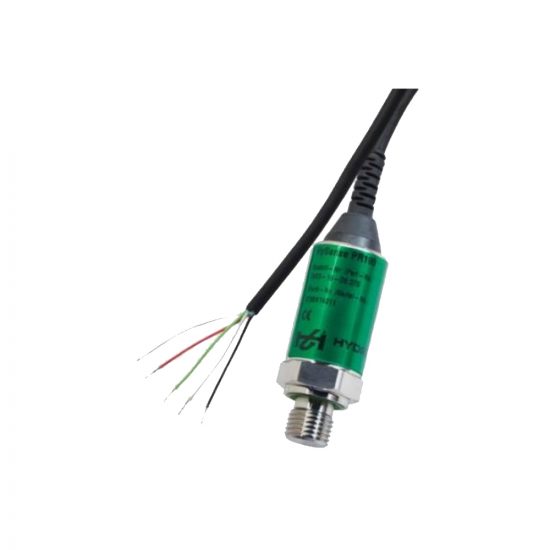

HySense® PR 190 L5 Piezoresistive pressure sensor

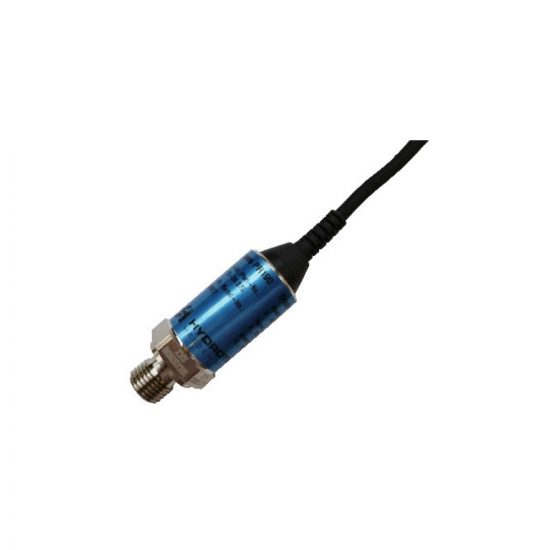

HySense® PR 190 D6 Piezoresistive pressure sensor
