ADROIT6000 Series Pressure Sensor


  • NLH&R Performance to 0.02%
  • Pressure ranges from 70 mbar to 350 bar (1 to 5,000 psi)
  • Gauge, Absolute and Differential reference
  • 4-20 mA and configurable voltage output
  • Total Accuracy up to 0.1%
  • Frequency response to 1 kHz
  • 316L Stainless Steel construction
  • Operating Temperature range up to -40 °C to 125 °C survival from -55 °C to 150 °C
  • ADROIT6000 app for Android™ available to download from Google Play
  • ADROIT6000 app for Windows™ available to download
  • ADROIT6200 Pressure Connector Options is available to download
Datasheet
Datasheet
Datasheet



Add to your Quote List

One Sensor. No Compromises.

Discover ADROIT6200 – the first release of ADROIT6000 industrial pressure sensors family.

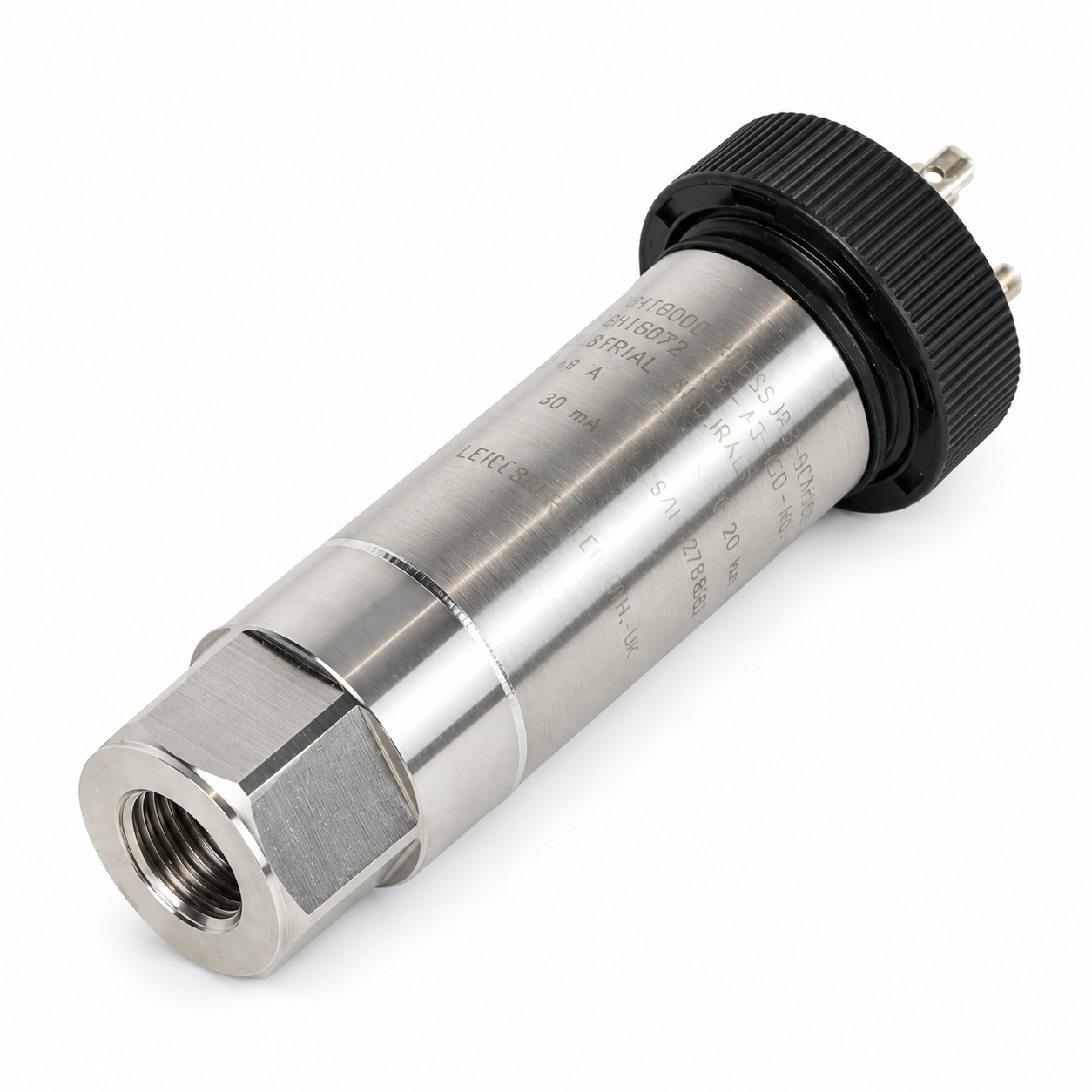

ADROIT6200 is a high performance, robust pressure measurement device. It combines the best mechanical properties of micromachined silicon in a fully welded 316L stainless steel body with the latest digital processing capability to offer levels of accuracy, previously unavailable in a device of this type. It offers a full suite of pressure measurements including gauge, absolute and differential references and pressure ranges from 70 mbar to 350 bar.

It is a digitally compensated sensor which has more standard analog outputs in a full suite of gauges, and absolute and differential ranges. Housed in an all-new 19mm package, it is designed to fit in the tightest of spaces. ADROIT6200 offers operating temperatures of -40°C to 125°C and survival to 150°C (302°F), fast update rate of 1ms, and 0.1%FS total performance from -20°C to 80°C



High Performance

Digital compensation for higher precision. Fast 1 millisecond response time, coupled with a 0.1% FS accuracy over temperature (operating at cold temperatures down to -40ºC and hot temperatures up to 125ºC)



Robust design

Fully welded stainless steel package



DRUCK´s smallest configurable sensor

Having a short body with a 19mm diameter, fits in hard to access applications, reducing installation costs



Easy to use

Analogue outputs for easier integration and calibration using Druck’s Digital app



CE Conformity

  • RoHS directive 2011/65/EU
  • Pressure Equipment Directive 2014/68/EU Sound Engineering Practice
  • EMC Directive 2014/30/EU
  • BS EN 61326-1: 2013: Electrical Equipment for Measurement, Control and Laboratory Use
  • BS EN 61326-2-3: 2013: Particular Requirements for Pressure Transducers
  • BS EN 50121-3-2: 2016+A1: 2019: Railway applications – Electromagnetic compatibility – Rolling stock – Apparatus. 4-20 mA version only
Produktserie

ADROIT6: ADROIT6200
Durchmesser und Material

2: 19 mm stainless steel
Elektrischer Anschluss

1: Polyurethane cable (with metal crimp), 2: Raychem cable (with metal crimp), 6: MIL-C-26482 bayonet (mating connector not included. (see accessories in data sheet, section 3)), D: Micro-DIN (9.4 mm pitch) (mating connector included. (see accessories in data sheet, section 3)), E: MIL-C-26482 bayonet alternative wiring (mating connector not included. (see accessories in data sheet, section 3)), G: M12 x 1, 4-pin (mating connector not included. (see accessories in data sheet, section 3)), W: M12x1 male, 4-pin, alternative wiring (mating connector not included. (see accessories in data sheet, section 3))
Elektronikoption

2: 4 to 20 mA, 4: 0 to 5 Volts, 3-wire, 5: Configurable voltage, 3-wire, R: 20 to 4 mA
Temperaturkompensierter Bereich

TB: -20 to +80 °C, TD: -40 to +125 °C (The compensated range TD is only available for connector options 2, 6, G or W.)
Genauigkeit

A2: Improved accuracy, A3: Premium (Premium accuracy is not available if the compensated temperature range TD is selected.)
Kalibrierung

CD: Precision calibration incl. zero and span data
Zulassung für explosionsgefährdete Bereiche

H0: None
Druckanschluss

PA: G1/4 female, PB: G1/4 male flat, PC: G1/4 male 60° internal cone, PE: 1/4 NPT female, PF: 1/4 NPT male, PG: 1/8 NPT male, PJ: M14 x 1.5 60° internal cone, PK: M12 x 1 internal cone, PS: 1/4 Swagelok bulkhead (This connection is not available with differential pressure ranges.), PT: G1/4 male flat long, P14: M8 x 1 male (This connection is not available with differential pressure ranges.), P18: M10 x 1 male, P22: 7/16-20 UNF male 74° external cone, P33: 7/16-20 UNF female, P60: M12 x 1.5 internal cone (This connection is not available with differential pressure ranges.), P61: G1/4 female with wire lock (This connection is only available on pressure ranges between ≥10 bar and ≤350 bar. / This connection is not available with differential pressure ranges.), RA: 1/4 VCR female (This connection is not available with differential pressure ranges.), RC: G1/4 male flat with cross bore (This connection is only available on pressure ranges between ≥10 bar and ≤350 bar.), RF: 1/4 VCR male (This connection is not available with differential pressure ranges.), RQ: NW16 flange (This connection is only available on pressure ranges below <10 bar. / This connection is not available with differential pressure ranges.), RZ: 1/4-28 UNF LH thread, 58° cone (This connection is only available on pressure ranges between ≥10 bar and ≤350 bar. / This connection is not available with differential pressure ranges.)
