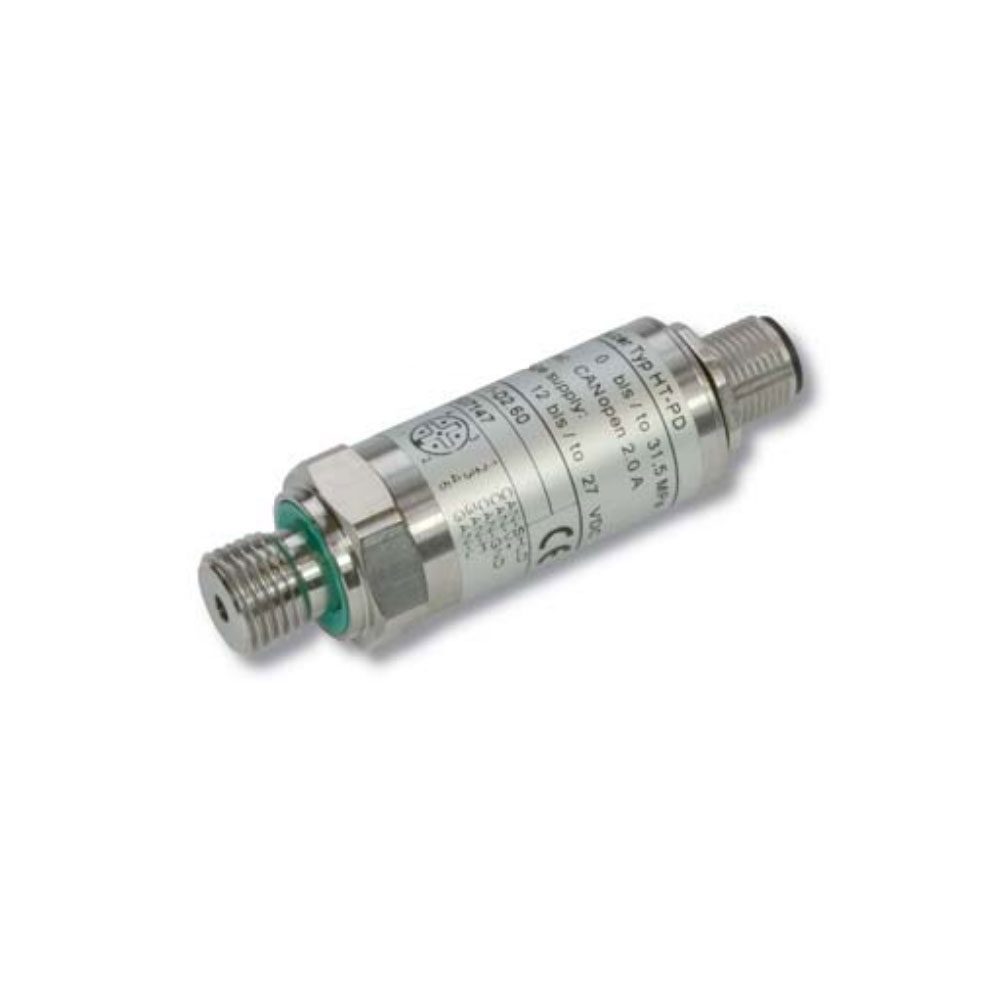

HySense PR126 – Pressure Sensor
- Measuring principle piezo-resistive (poly-cristalline silicon thin fi lm structure on high-grade steel membrane)
- Pressure type relative pressure
- Output signal CANopen
- Electrical measuring connector 5 pole device connector, M12 x 1
- Mechanical connection thread ISO 228 – G ¼ A
- Sealing material profi le seal ring acc. to DIN 3869, FKM
- Protection type (EN 60529 / IEC 529) IP 67 (with screwed connector)
- Casing material non-corrosive high-grade steel
- Membrane material non-corrosive high-grade steel
- Tightening torque 40 Nm (± 5 Nm)
- Weight ~ 100 g
- CAN bus LSS slave function
- Baud rate 10 … 500 kBaud (settable)
- CAN interface acc. to DIN 11898
