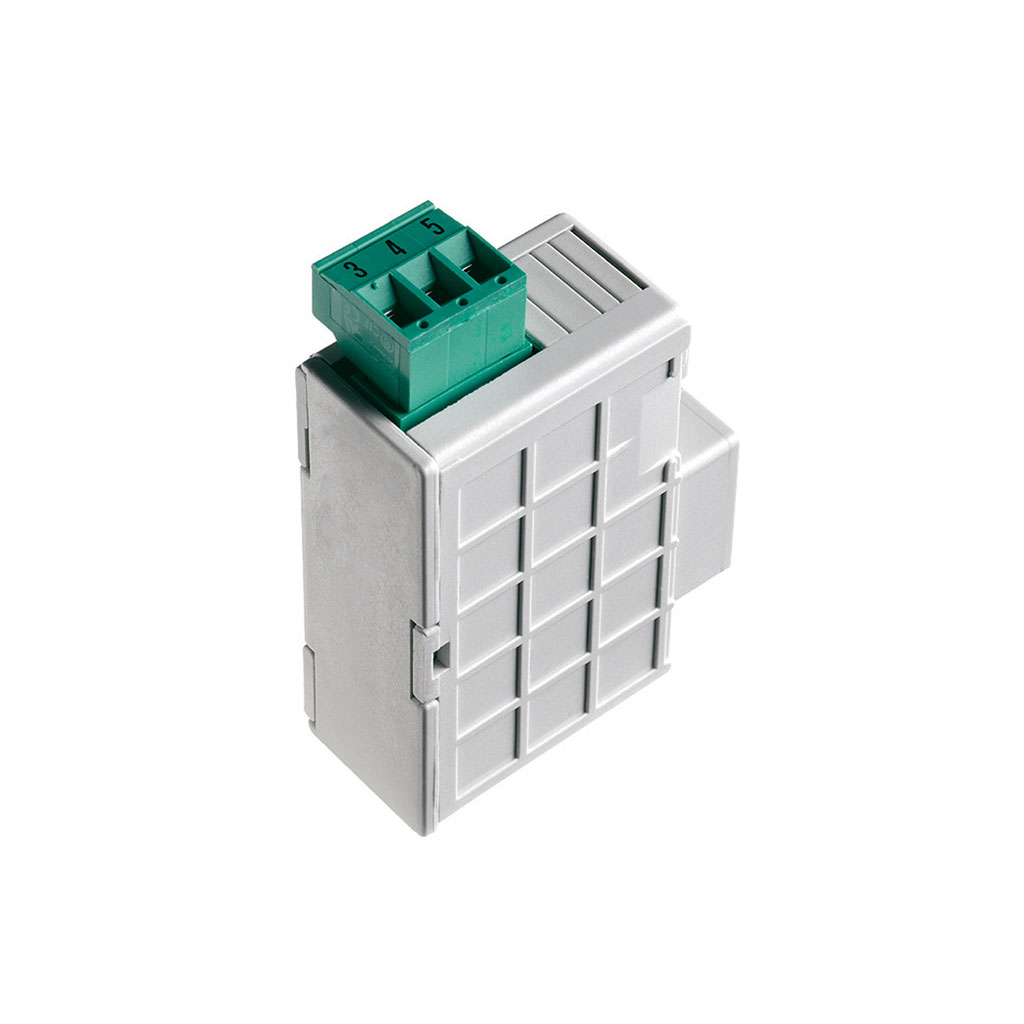

DatasheetNemo 96HD/HD+ – RS485 Communication Interface IF96001
Interface module for RS485 communication
| Type | Interface for RS485 communication for Nemo 96HD/HD+ |
|---|---|
| Ordering code | IF96001 |
| Description | RS485 communication |
| Function | Makes all data relevant to carried out measurements as well as configuration parameters available via RS485 communication |
| RS485 standard | RS485, 3-wire |
| Transmission | Serial, asynchronous |
| Protocol | Compatible with JBUS / MODBUS |
| Number of bits | 8 |
| Stop bit | 1 |
| Response time | ≤ 200 ms |
| Max. number of devices on the bus | 32, up to 255 with RS485 repeater |
| Max. bus length | 1200 m |
| Programmable address | 1…255 |
| Transmission speed | 4,800 / 9,600 / 19,200 / 38,400 bit/s |
| Parity bit | None / Even / Odd |
| Auxiliary supply | According to the combination of Nemo 96HD/HD+ multifunction module and IF96001 module |
| Power consumption | ≤ 5 VA |
| Test voltage | 2 kV R.M.S., 50 Hz / 1 min |
| Test circuit | Measuring input, auxiliary supply, RS485 communication |
| Housing | Module with connector for connection to the Nemo 96HD/HD+ device |
| Housing depth | 81 mm, Nemo 96HD/HD+ and module |
| Connection | Screw terminal |
| Wire connection | Solid max. 4.5 mm²; flexible max. 2.4 mm² |
| Housing material | Self-extinguishing polycarbonate |
| Weight | 30 g |
