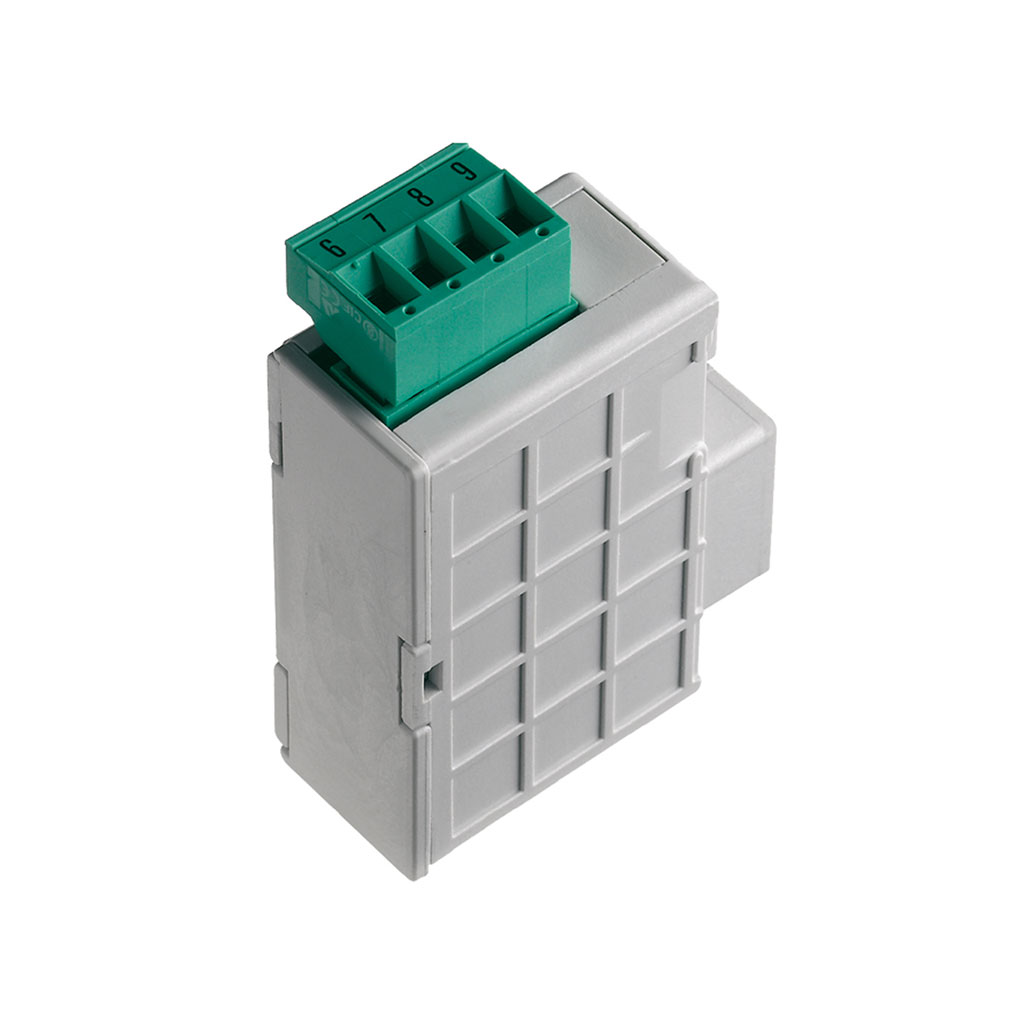

DatasheetNemo 96HD/HD+ – Pulse Output Interface Module IF96003
Interface module with 2 independent and insulated pulse outputs
| Type | Interface with pulse outputs for energy count repetition for Nemo 96HD/HD+ |
|---|---|
| Ordering code | IF96003 |
| Description | 2 energy pulse outputs |
| Function | Allows remote repetition of energy counting via 2 independent and insulated pulse outputs |
| Max. modules per meter | Up to 2 IF96003 modules, providing a total of 4 pulse outputs |
| Programmable parameters | Associated energy, pulse weight and pulse duration |
| Measured quantity | Active energy or reactive energy |
| Pulse weight | 1 pulse / 10 Wh up to 10 MWh or 1 pulse / 10 varh up to 10 Mvarh |
| Pulse duration | 50 / 100 / 200 / 300 ms |
| Output | 2 opto-relays with potential-free SPST-NO contact |
| Contact rating | 110 VDC / AC, 50 mA |
| Auxiliary supply | According to the combination of Nemo 96HD/HD+ multifunction module and IF96003 module |
| Power consumption IF96003 | ≤ 1 VA |
| Power consumption Nemo 96HD/HD+ and 1 IF96003 module | ≤ 5 VA |
| Power consumption Nemo 96HD/HD+ and 2 IF96003 modules | ≤ 6 VA |
| Test voltage | 2 kV R.M.S., 50 Hz / 1 min |
| Test circuit | Measuring input, auxiliary supply, output 1 – output 2 |
| Housing | Module with connector for connection to the Nemo 96HD/HD+ device |
| Housing depth | 81 mm, Nemo 96HD/HD+ and module |
| Connection | Screw terminal |
| Wire connection | Solid max. 4.5 mm²; flexible max. 2.4 mm² |
| Housing material | Self-extinguishing polycarbonate |
| Weight | 30 g |
