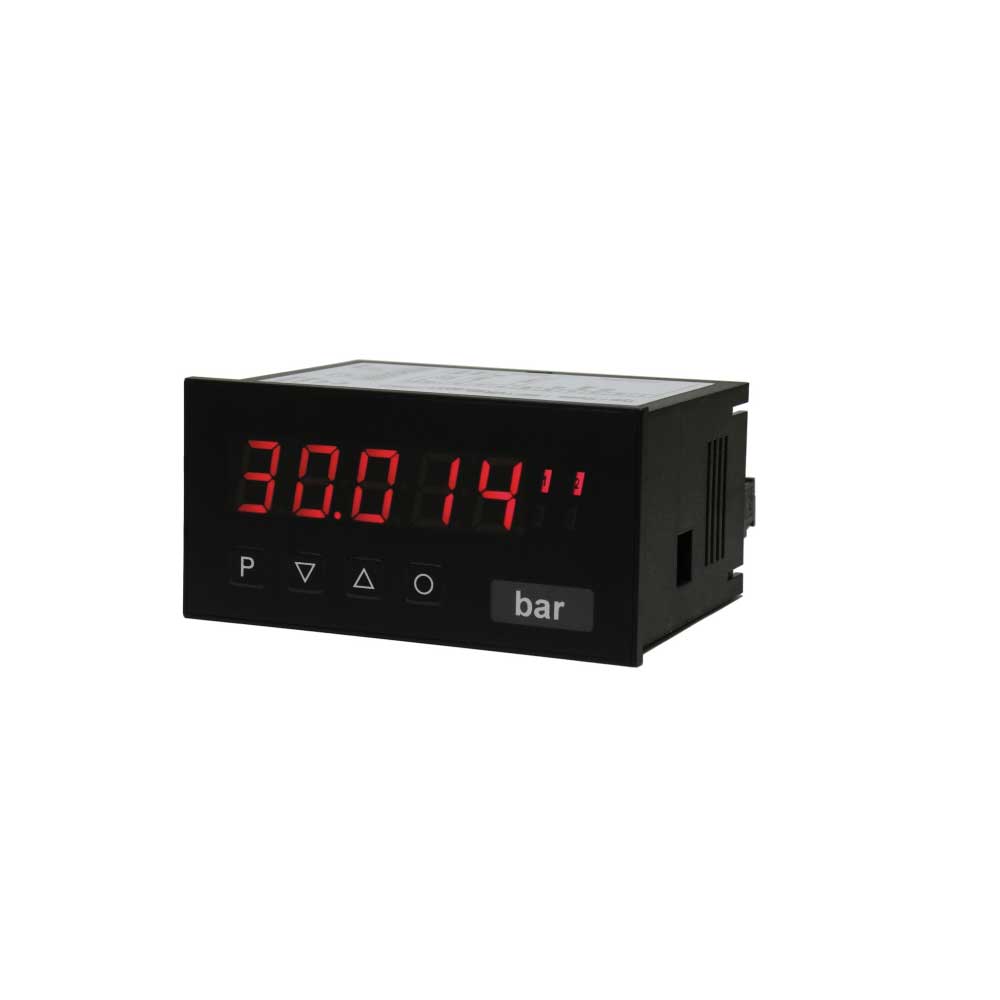

DatasheetThe IM2-1MR5B.020X.570xD is a 5-digit meter for power/weight measuring via strain gauges with a switching contact of 80% alignment and a visual limit value monitoring via the display. The configuration happens via 4 front keys or via the optional PC-software PM-TOOL. For a further evaluation, two switching points are optionally available. Many selectable software functions, the direct limit value adjustment in operating mode and the compact installation depth of 89 mm create a solid device concept.
| Housing | 96 x 48 mm |
| Display | 5-digit 14 mm digit height Colour: red, green, orange or blue display |
| Range displayed | -19999 to 99999 |
| Operation | front panel keyboard protection class IP65 |
| Input | DMS / Melt pressure: 1 mV/V, 2 mV/V, 3.3 mV/V free up to 4 mV/V with 80% calibration Digital input: <2.4V OFF, >10V ON, max. 30 VDC |
| Analogue Output | – |
| Switch point | 2 relays (change-over contact) 250 V / 5 AAC, 30 V / 5 ADC |
| Interface | – |
| Power supply | 230 VAC 10-30 VDC galvanic isolated Other voltage supplies on demand! |
| Sensor supply | Feeding 10 VDC / 20-40 mA / 250-500 Ohm |
