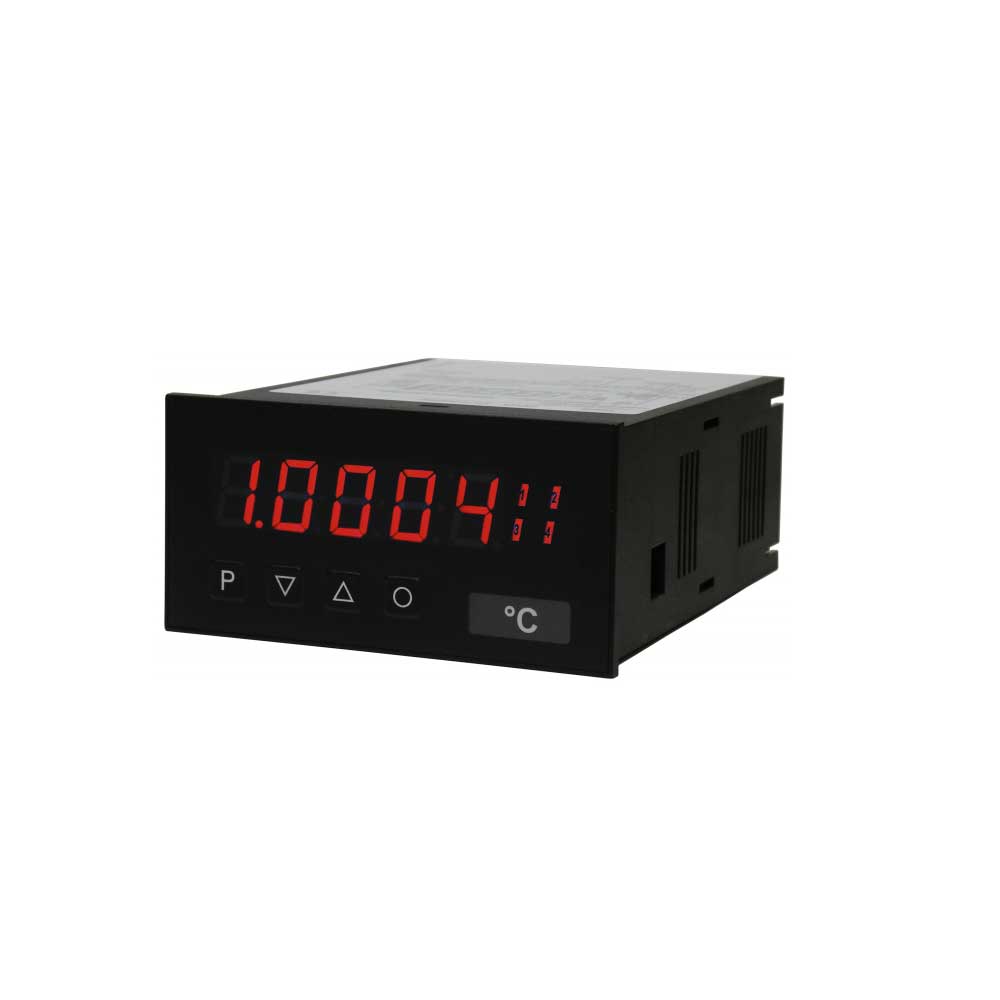

DatasheetThe IM3-1MR5B.020X.S70xD is a 5-digit meter for measuring power/weight via strain gauges with switching contact for 80% alignment and a visual limit value monitoring via the display. The configuration happens via 4 front keys or via the optional PC-software PM-TOOL. Optionally available are two analog outputs, the interfaces RS232/RS485 and up to 8 switching points. Many selectable software functions and a direct limit value adjustment in operating mode complete the modern device concept.
| Housing | 96 x 48 mm |
| Display | 5-digit 14 mm digit height Colour: red, green, orange or blue display |
| Range displayed | -19999 to 99999 |
| Operation | front panel keyboard protection class IP65 |
| Input | DMS / Melt pressure: 1 mV/V, 2 mV/V, 3.3 mV/V free up to 4 mV/V with 80% calibration Digital input: <2.4V OFF, >10V ON, max. 30 VDC |
| Analogue Output | 2 analog outputs 0/4-20 mA / 0-10 VDC / 16 Bit |
| Switch point | 2 or 4 relays (change-over contacts) 250 V / 5 AAC, 30 V / 5 ADC or 8 PhotoMos outputs (NOC) 30 V / 0.4 A AC/DC |
| Interface | RS232 or RS485 galvanic isolated Alternatively to analog output 2 |
| Power supply | 100-240 VAC 50/60 Hz / DC +/- 10% 10-40 VDC / 18-30 VAC 50/60Hz |
| Sensor supply | Feeding 10 VDC / 20-40 mA / 250-500 Ohm |
| Software properties |
|
