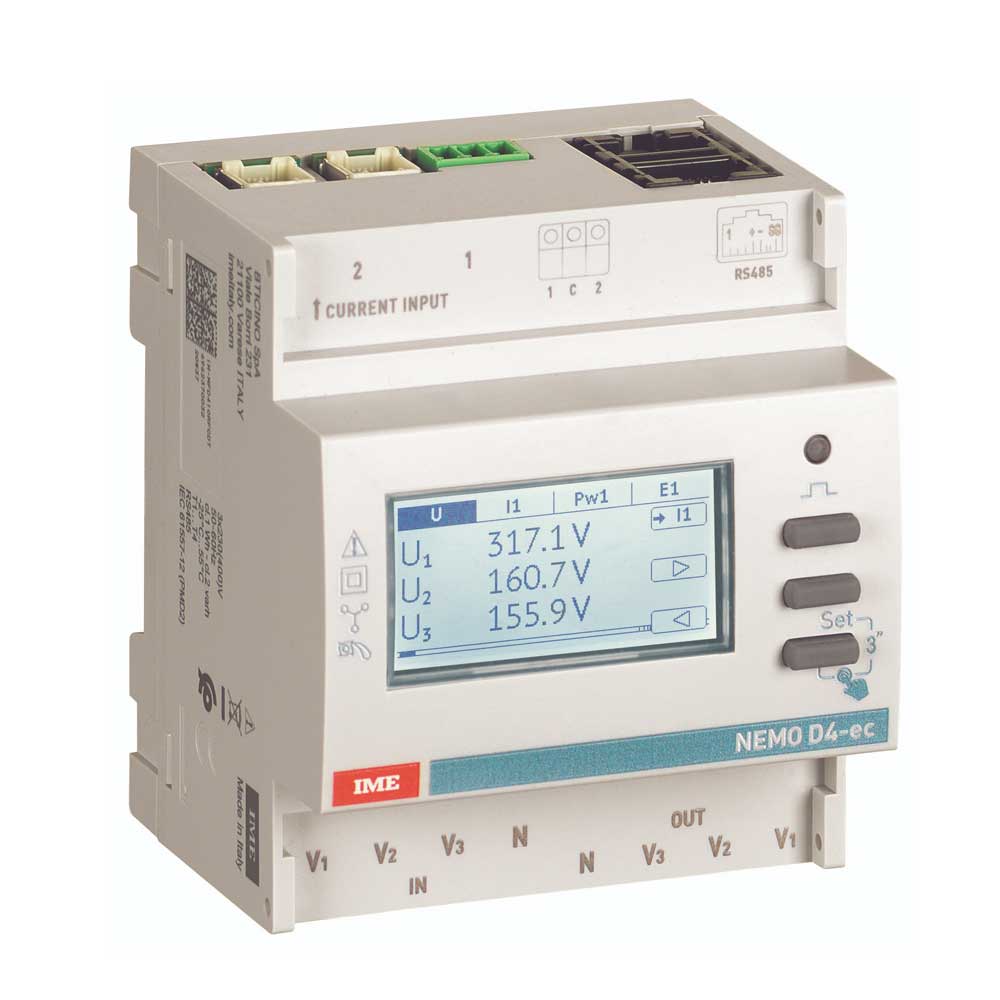

DatasheetMultifunction STANDARD Easyconnect
Bidirectional multifunction device for three-phase AC low-voltage networks
| Connection type | 3-3E / 3N3E |
|---|---|
| Rated voltage | 230 and 400 V, L-L |
| Voltage range | 195…460 V |
| Rated current | 630 / 1600 / 3200 / 6300 A |
| Maximum current | 750 / 1950 / 3900 / 7500 A |
| Minimum current | 12.5 / 32.5 / 65 / 125 A |
| Rated frequency | 50 / 60 Hz |
| Operating frequency range | 45…65 Hz |
| Auxiliary supply | Self-supplied, under all measurement steps |
| Accuracy according to EN/IEC 61557-12, EN/IEC 62053-21, EN/IEC 62053-23 | Voltage / current: class 0.5; current: class 1; active energy: class 1; reactive energy: class 1; active power: class 1; reactive power: class 1; apparent power: class 1; frequency: ± 0.1 Hz; THD: class 2 |
| Display type | Backlit LCD |
| Digit height | 2″ |
| Housing | 4 DIN modules, 43880, 35 mm |
| Material | Self-extinguishing polycarbonate |
| Protection class | IP20 terminals / IP54 front side |
| Voltages IN V1-V2-V3-N | Screw terminal |
| Voltages OUT N-V3-V2-V1 | Screw terminal |
| Tariffs | Screw terminal |
| Modbus | RJ45 |
| M-Bus | Screw terminal |
| Current | Quick connection plug connector |
| Operating temperature | -20…60 °C |
| Storage temperature | -25…70 °C |
| Suitable for use in tropical climates | Yes |
| Maximum power dissipation | ≤ 5 W |
