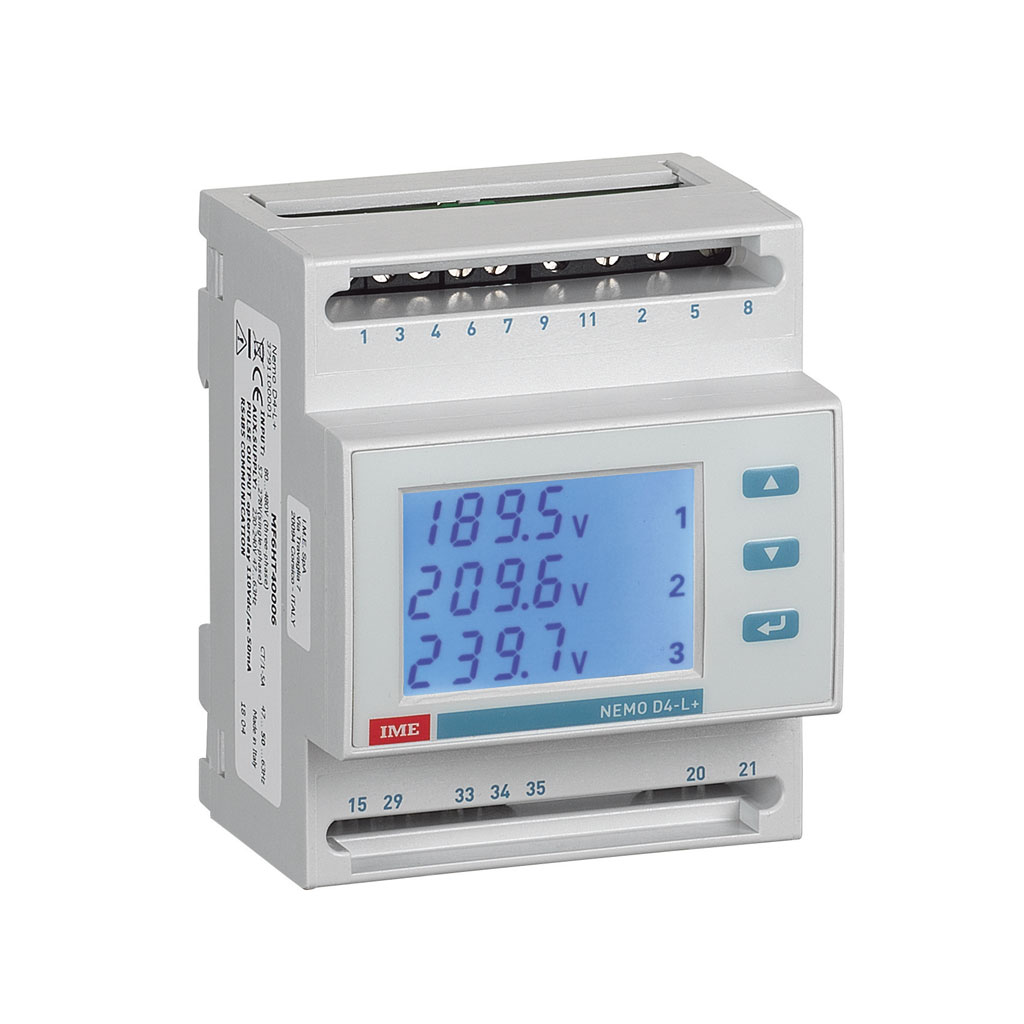

RETROFIT – Nemo D4-L


  • Network monitor for low-voltage applications as 4-DIN-module version
  • Retrofit measurement kit with 3 open current transformers
  • Suitable for three-phase networks with 80…480 V phase-phase
  • Current ranges 100 A, 150 A, 250 A, 400 A and 600 A
  • Programmable CT ratio
  • Measurement of voltage, current, power, energy, frequency and power factor
  • THD/THDI display and phase sequence diagnostics
  • RS485 communication, pulse output and optional Ethernet and PROFIBUS interfaces
Datasheet
Add to your Quote List

Nemo D4 – Retrofit Measurement Kit

Network monitor for low-voltage applications, 4 modules

Type Network monitor for low-voltage applications with retrofit measurement kit
Format 4 DIN modules
Network Three-phase low-voltage network
Voltage 80…480 V phase-phase
Current measurement Via 3 open current transformers
Connection Connection with dedicated open retrofit CTs
Current ranges 100 / 150 / 250 / 400 / 600 A
Transformer ratio Programmable CT ratio
Active energy Class 1, multifunction + CT
Reactive energy 4 quadrants
Output Pulse output
Interface RS485 communication
External interfaces Ethernet communication NT809, PROFIBUS communication NT592
Measurement functions Voltage, current, power, energy, frequency, power factor, THD and phase sequence diagnostics






RETROFIT Mess-Kit - Nemo D4-L + 3 Teilbare Stromwandler TA24/36 Nemo + TA
