Instrument Monoflanges

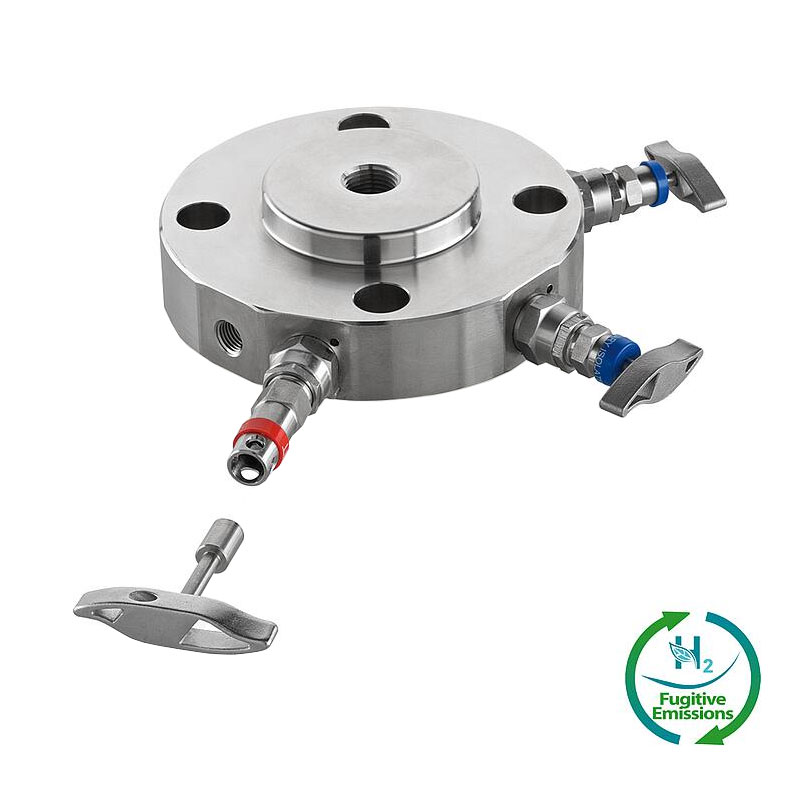

AS-Schneider Instrument Monoflanges are close coupled to a pre-installed primary isolation valve to provide a compact instrument Double Block and Bleed Valve or are used when primary isolation valves with an OS & Y Bolted Bonnet are not required. The needle valves of the Instrument Monoflanges are provided with a screwed bonnet. The Standard Pressure Instrument Connection is 1/2 NPT female, the Standard Process Connections are provided by Flange Connections acc. to ASME B 16.5. AS-Schneider is providing axial, radial or dual outlet types for either Horizontal or Vertical Flange Mounting.

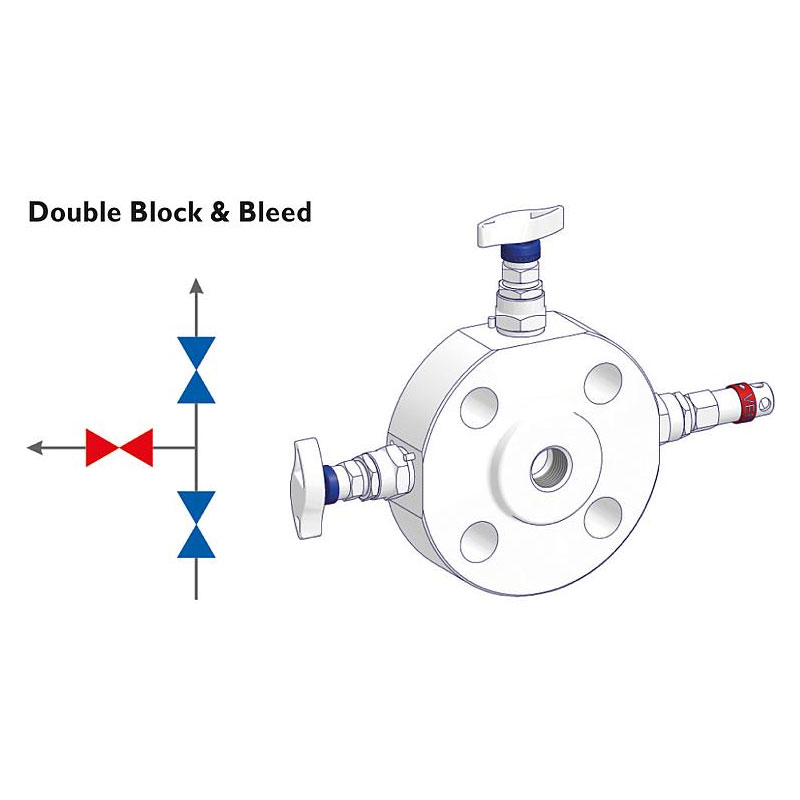

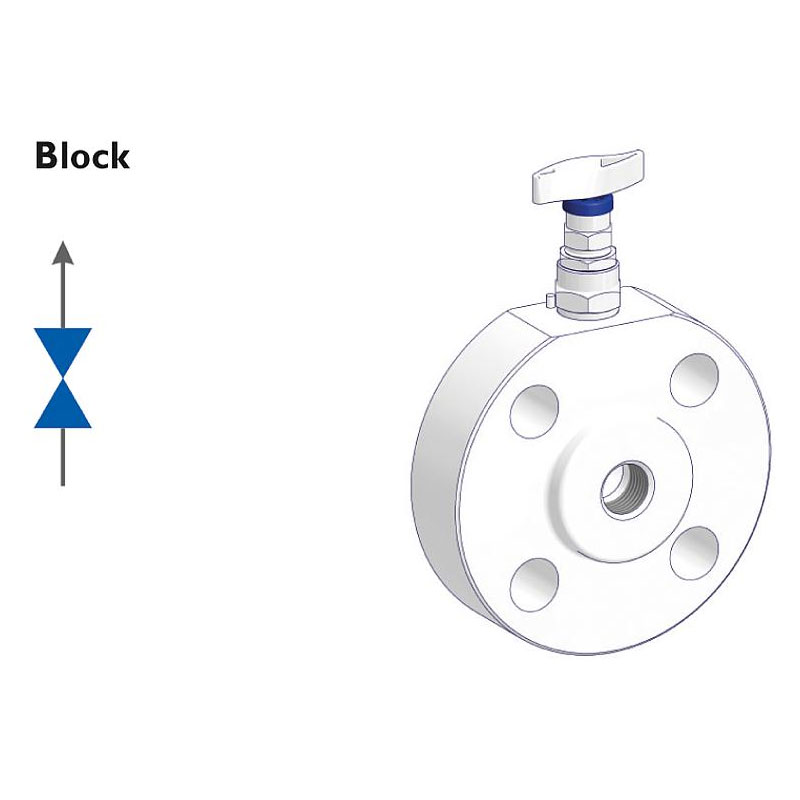

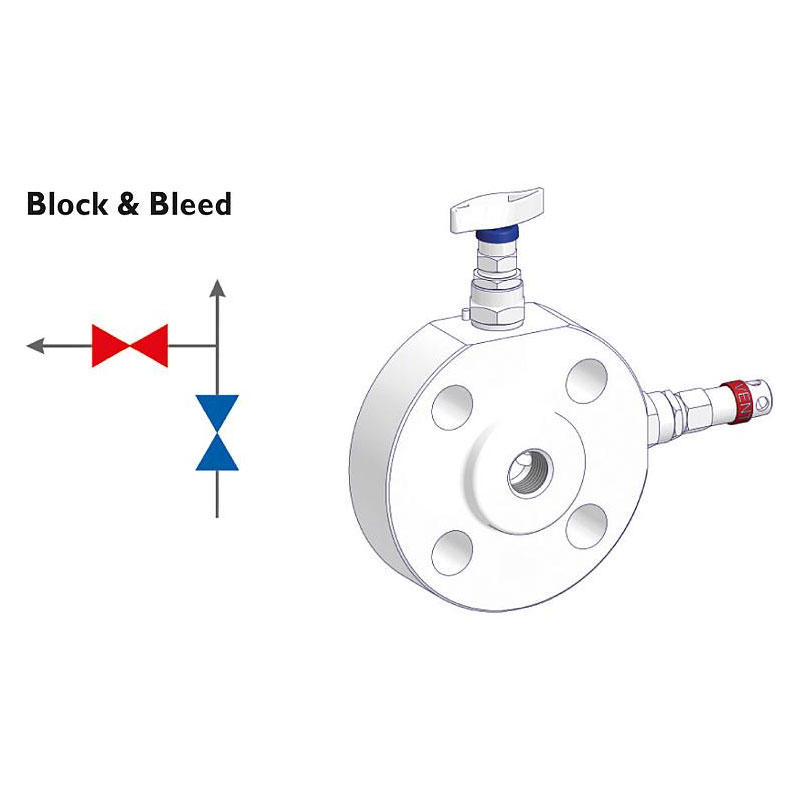

The Monoflanges are available as Block, Block & Bleed or Double Block & Bleed designs.

Datasheet
Add to your Quote List

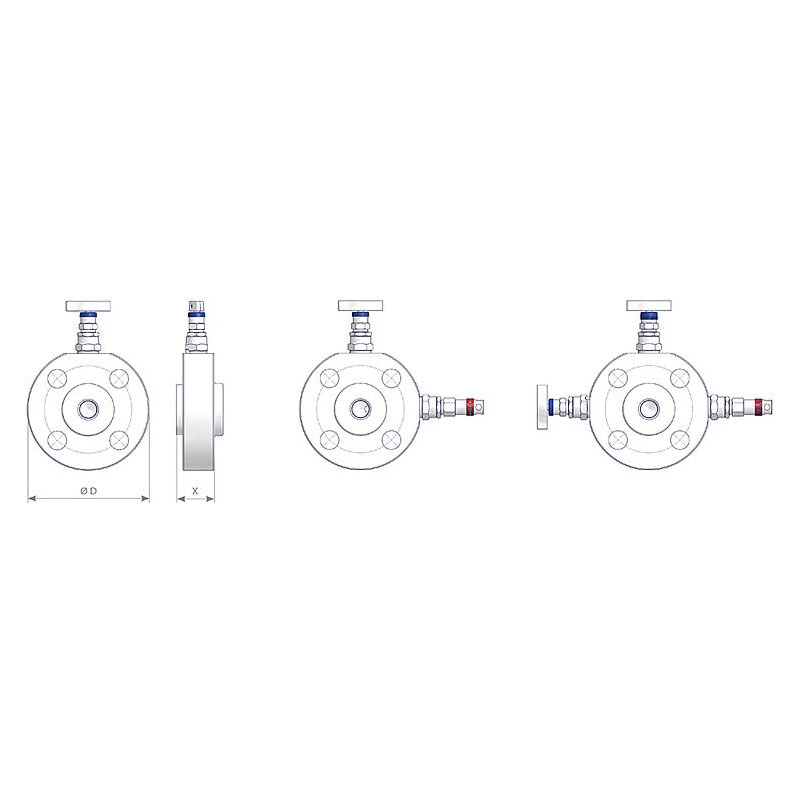

*The dimensions shown in this catalogue apply to standard types. If you need the dimensions for your individual type or should you still not find your options at all please contact the factory.

Flange × Thread

Flange Size
(in)		 Flange Class Ø D (mm) Flange Face Approx. Weight
(kg)
RF × mm RTJ × mm
1/2 150 88.9 33.6 – 1.6
1/2 300 95.3 33.6 37.6 2.0
1/2 600 95.3 38.4 37.6 2.0
1/2 900 / 1,500 120.7 38.4 38.4 2.9
1/2 2,500 133.4 38.4 38.4 3.7
3/4 150 98.6 33.6 – 2.0
3/4 300 117.3 33.6 38.4 2.9
3/4 600 117.3 38.4 38.4 2.9
3/4 900 / 1,500 130.0 38.4 38.4 3.5
3/4 2,500 139.7 39.4 39.4 4.2
1 150 108.0 36.6 38.4 2.6
1 300 124.0 36.6 38.4 3.3
1 600 124.0 38.4 38.4 3.3
1 900 / 1,500 149.3 38.4 38.4 6.8
1 2,500 158.8 42.4 42.4 5.7
1 1/2 150 127.0 36.6 38.4 3.8
1 1/2 300 155.4 36.6 38.4 5.3
1 1/2 600 155.4 38.4 38.4 5.3
1 1/2 900 / 1,500 177.8 39.4 39.4 6.8
1 1/2 2,500 203.2 51.4 52.9 11.5
2 150 152.4 36.6 38.4 5.1
2 300 165.1 36.6 39.9 5.7
2 600 165.1 38.4 39.9 6.2
2 900 / 1,500 215.9 45.4 46.9 11.6
2 2,500 235.0 58.4 59.9 17.0






Instrument Monoflansche 1
Instrument Monoflansche 2
Instrument Monoflansche 3
Instrument Monoflansche 4

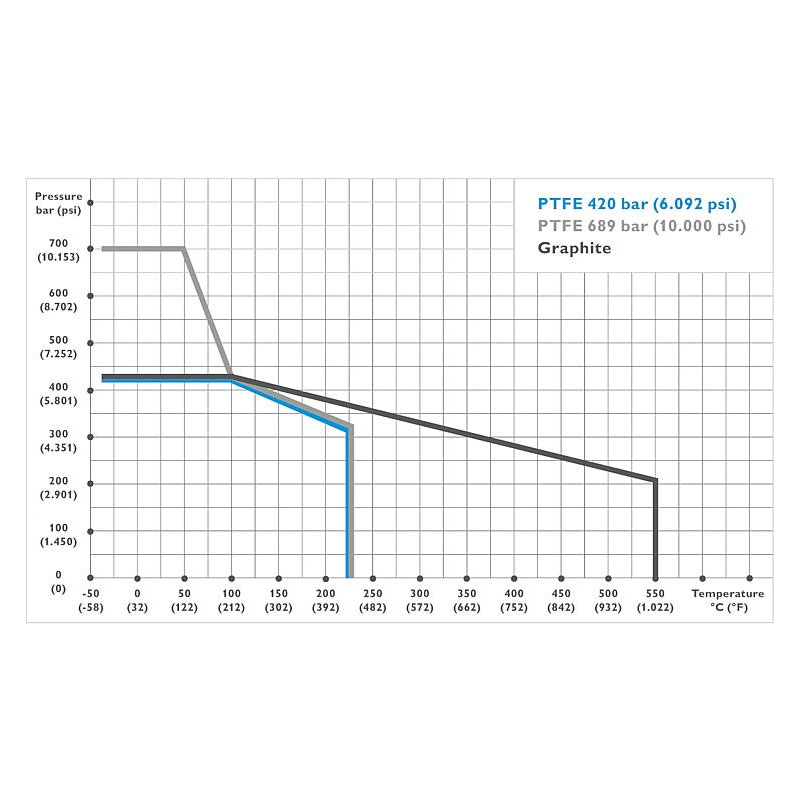

Instrument Monoflansche 5
Instrument Monoflansche 6

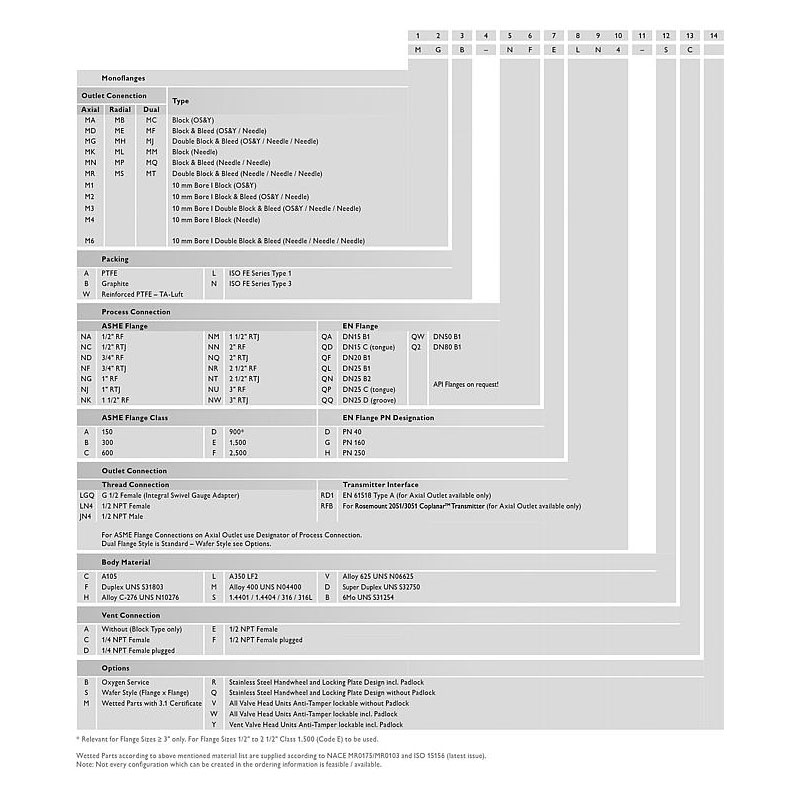

Instrument Monoflansche 7
