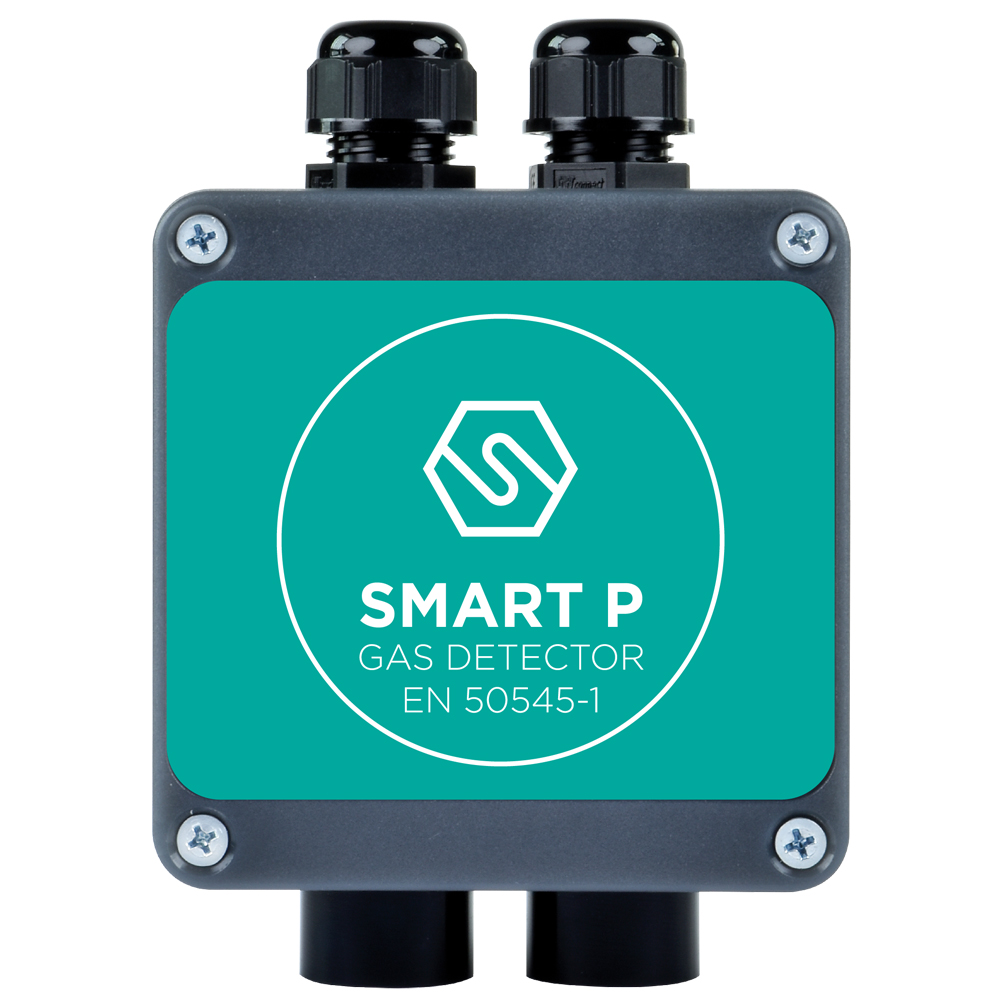

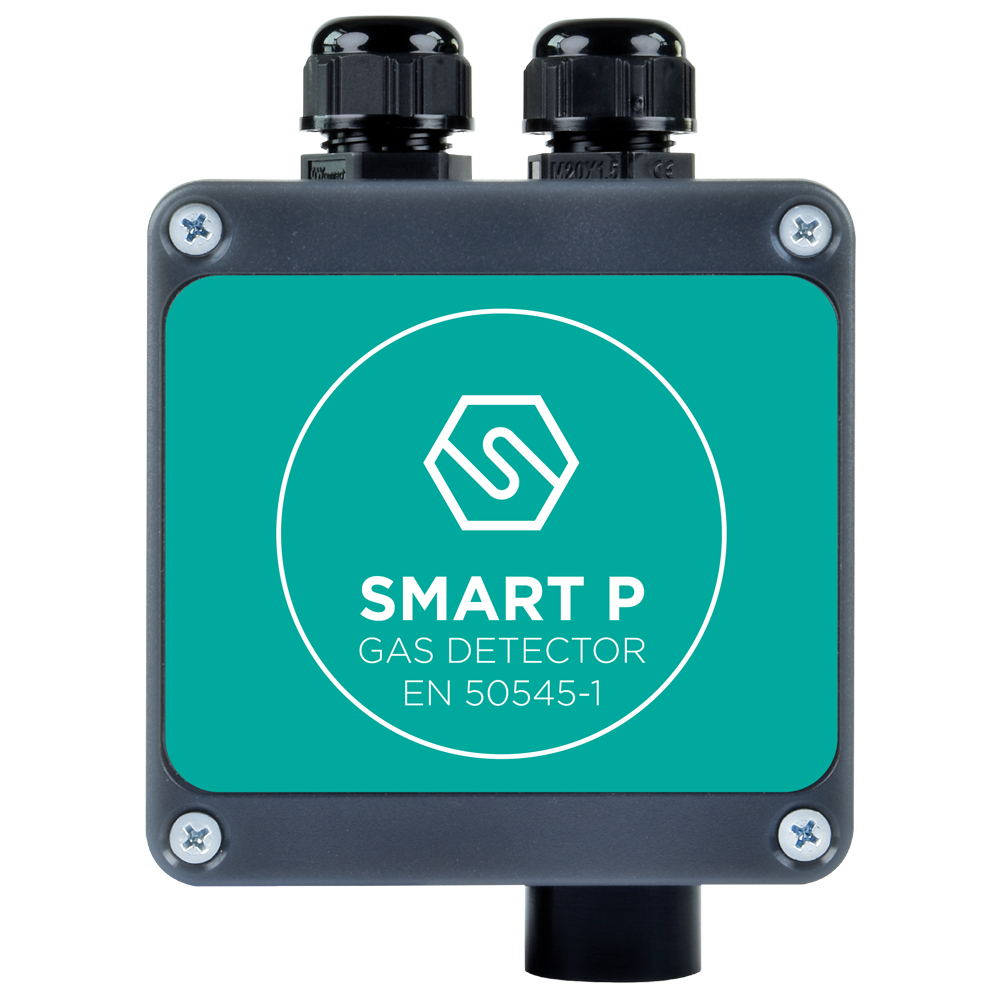

DatasheetBuild-up of toxic gases from cars can be deadly, which is why extra care needs to be taken in confined areas such as car parks. The SMART P detectors are designed specifically for the measurement of gases in car parks, capable of detection CO, NO2 and petrol vapours to provide complete peace of mind.
While the SMART P-1 is a single-gas detector, the SMART P-2 allows for simultaneous detection of both CO and either NO2 or petrol vapours, offering enhanced protection from noxious fumes.
Both the SMART P-1 and P-2 offer RS485 communication as standard, and have been designed to fulfil the latest European Standard for gas detection in car parks (EN 50545-1:2011), so you know you’re fully covered.
Specifications
| SMART P-1 | SMART P-2 | |
| Size | Box: H100 x W100 x D52 mm (3.9 x 3.9 x 2ins) Cover: H105.8 x W105.8 x D7.8 mm (4.2 x 4.2 x 0.3ins) |
|
| Weight | 0.25kg | |
| Enclosure material | Polycarbonate | |
| Ingress Protection | IP55 | |
| Connection | 2 x M20 | |
| Power | 12-24 Vdc | |
| Electrical output | RS485 serial output | |
| Operating temperature | -20 / +50°C | |
| Humidity | 15 /90 %RH | |
| Compliance | EMC EN 50270:2015 Car park standard EN 50545-1:2011 |
|
Gases and ranges
| Sensor type | Device | |
| Carbon Monoxide (CO) | Electrochemical sensor | SMART P-1 and P-2 |
| Nitrogen Dioxide (NO2) | Electrochemical sensor | SMART P-1 and P-2 |
| Petrol Vapours | Catalytic sensor | SMART P-2 Only |
