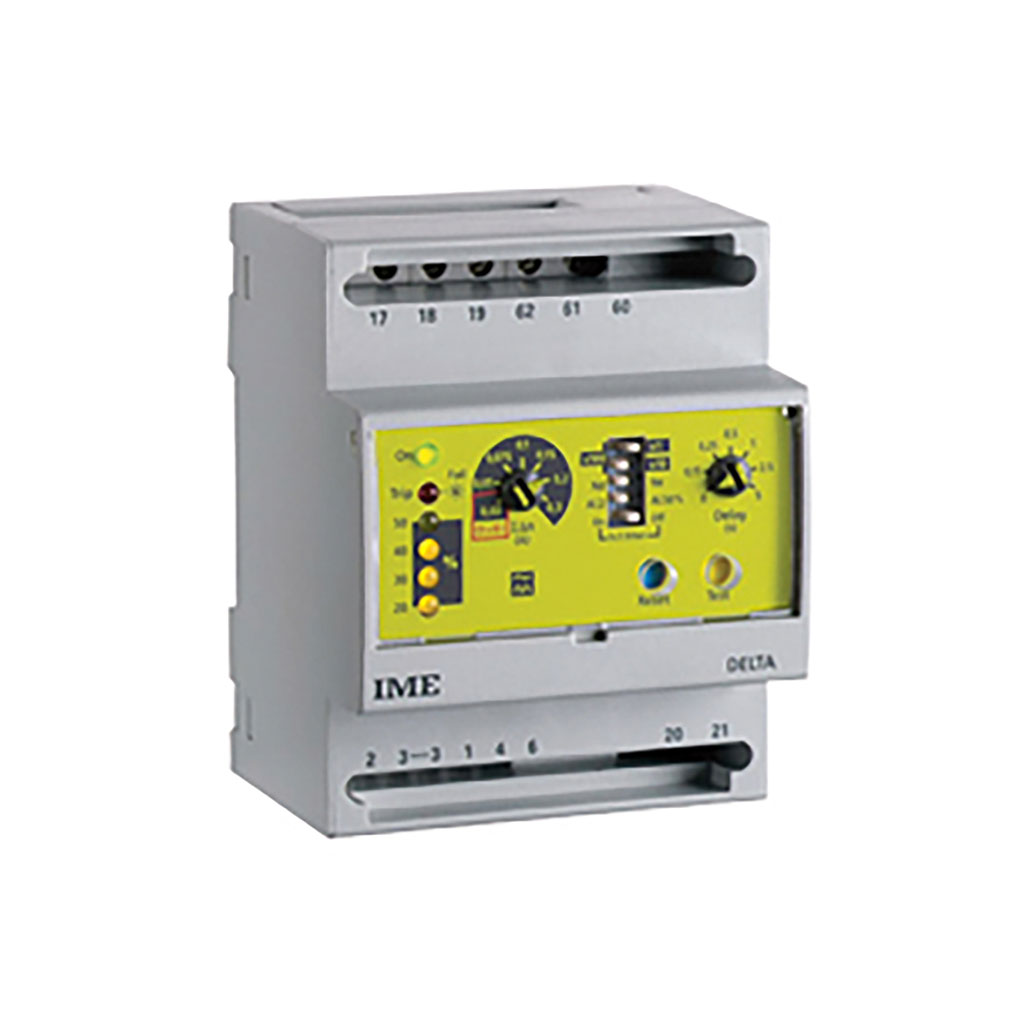

Delta RD2B – Differenzstromrelais (4 Modul)


  • Delta D4-s residual current relay with 2 limit contacts
  • 4-DIN-module design for installation in control cabinets
  • Configuration as 1 alarm + 1 pre-alarm or as 2 alarms possible
  • 19 selectable measuring ranges from 0.03 A to 30 A
  • Adjustable response time from 0 to 5 s
  • No response delay at 30 mA
  • Harmonic filter and selectable positive / negative relay safety
  • Manual reset and automatic / manual test function
Datasheet
Add to your Quote List

Delta D4-s

Residual current relay with 2 limit contacts, 4 DIN modules

Type Residual current relay with 2 limit contacts
Series Delta D4-s
Ordering code RD1B…
Format 4 DIN modules
Alarms 2 alarms or 1 alarm + 1 pre-alarm 50 %
Measuring ranges 19 ranges, 0.03…30 A
Response time t = 0 / 0.15 / 0.25 / 0.5 / 1 / 2.5 / 5 s
Response delay No response delay at 30 mA
Harmonic filter Available
Relay output 2 relays with SPDT output
Relay status Positive / negative safety
Test Manual / automatic, permanent
Reset Manual
AC auxiliary supply 24 / 48 / 115 / 230 / 240 / 400 VAC
DC auxiliary supply 20…150 VDC or 10…36 VDC
Two-wire connection Between DEL ring current transformer and DelA
Dimensions 4 DIN modules



Bestellnummern

Ordering code Auxiliary supply Relays Reset
RD1B211B 24 VAC 1 alarm + 1 pre-alarm or 2 alarms Manual
RD1B212B 115 VAC 1 alarm + 1 pre-alarm or 2 alarms Manual
RD1B213B 230 VAC 1 alarm + 1 pre-alarm or 2 alarms Manual
RD1B214B 240 VAC 1 alarm + 1 pre-alarm or 2 alarms Manual
RD1B215B 400 VAC 1 alarm + 1 pre-alarm or 2 alarms Manual
RD1B21DB 10…36 VDC 1 alarm + 1 pre-alarm or 2 alarms Manual
RD1B21HB 20…150 VDC + 48 VAC 1 alarm + 1 pre-alarm or 2 alarms Manual






Delta RD3B2 - Differenzstromrelais (4 Modul)
Technical advice: 03303 / 50 40 66

Technical advice for this product
