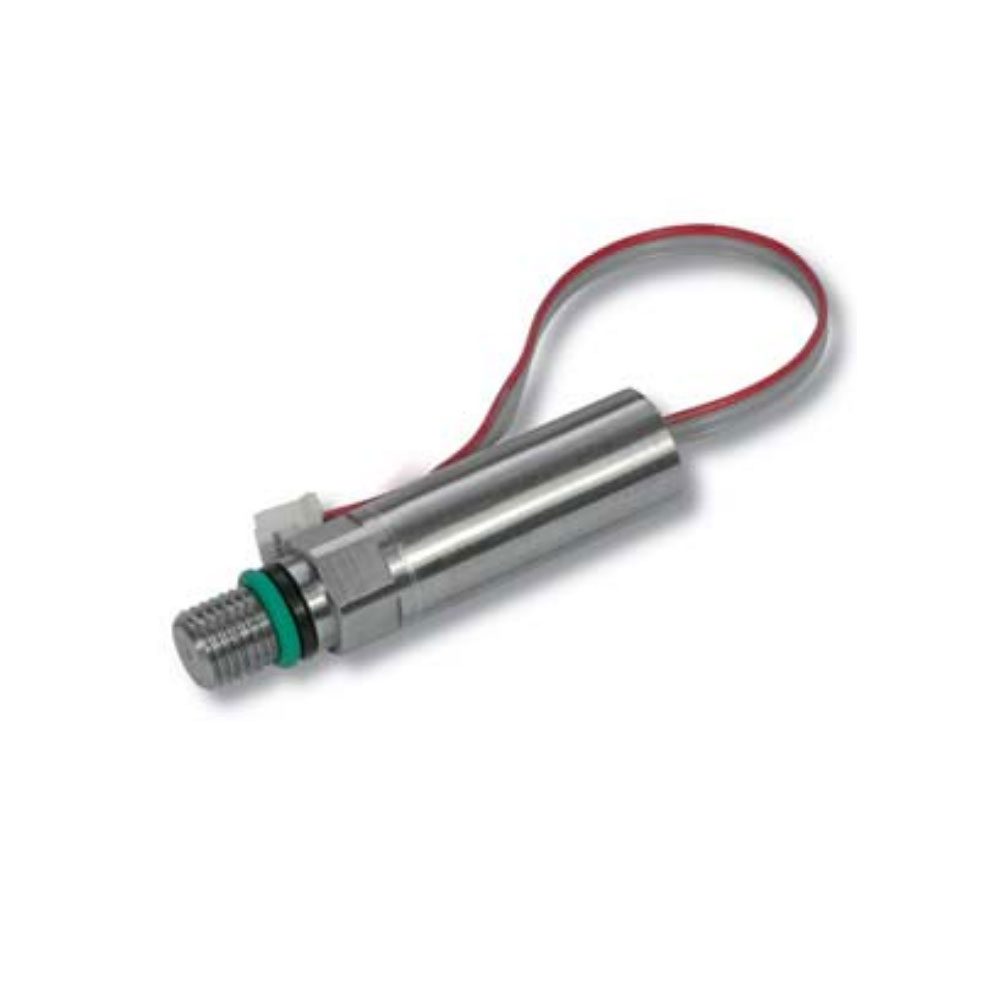

HySense PR280 – Pressure Sensor
- Measuring principle piezo-resistive (poly-cristalline silicon thin fi lm structure on high-grade steel membrane)
- Pressure type relative pressure
- Output signal 0.5 … 4.5 VDC
- Electrical measuring connector connector box JST PHR-3
- Mechanical connection thread M8 x 1
- Sealing material O ring FKM
- Protection type (EN 60529 / IEC 529) IP 00
- Casing material 1.4571
- Membrane material non-corrosive high-grade steel
- Tightening torque 8 Nm (± 2 Nm)
- Weight ~ 22 g
Technical advice: 03303 / 50 40 66
Technical advice for this product
