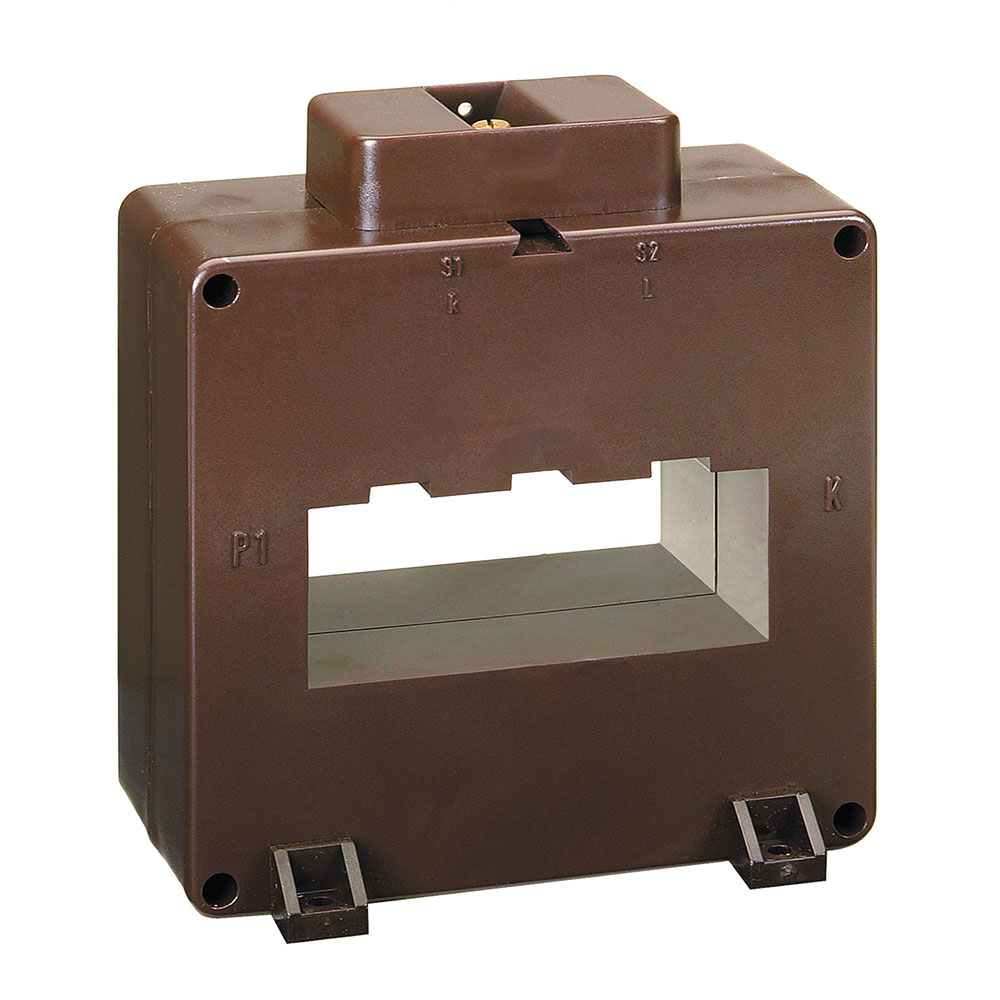

TAS80 Single-phase current transformer – measurement


  • Protection current transformer for rated primary currents from 300 A to 2500 A
  • Rated secondary current selectable with 5 A or 1 A
  • Suitable for 50 Hz, optionally also for 400 Hz with defined burden
  • Versions with protection classes 5P and 5P10 available
  • Rated burden from 2.5 VA to 35 VA
  • Rated short-time thermal current up to max. 90 kA
  • Maximum allowed cable or busbar temperature 125 °C
  • Self-powered version without auxiliary supply
  • Optional ATAP015 accessory for protection with open secondary winding
Datasheet
Add to your Quote List

Technical data

Rated primary current Ipr 300…2500 A
Rated frequency 50 Hz
Working frequency 47…63 Hz
Option Rated frequency 400 Hz, burden to be advised
Rated continuous thermal current Icth 100 % Ipr
Rated short-time thermal current Ith < 60 Ipr, max. 90 kA
Rated dynamic current Idyn 2.5 Ith
Rated secondary current Isr 5 / 1 A
Rated burden 2.5…35 VA
Accuracy class Class 5P / 5P10
Max. power dissipation ≤ 36 W
Max. allowed cable or busbar temperature 125 °C
Note on secondary winding With open secondary winding, an operating time of 1 minute is guaranteed.
Accessory ATAP015 (NT710) for automatic short-circuiting of the secondary winding when the threshold value is exceeded
Auxiliary supply Not required, self-powered






TAS80 Single-phase current transformer - measurement
Technical advice: 03303 / 50 40 66

Technical advice for this product
