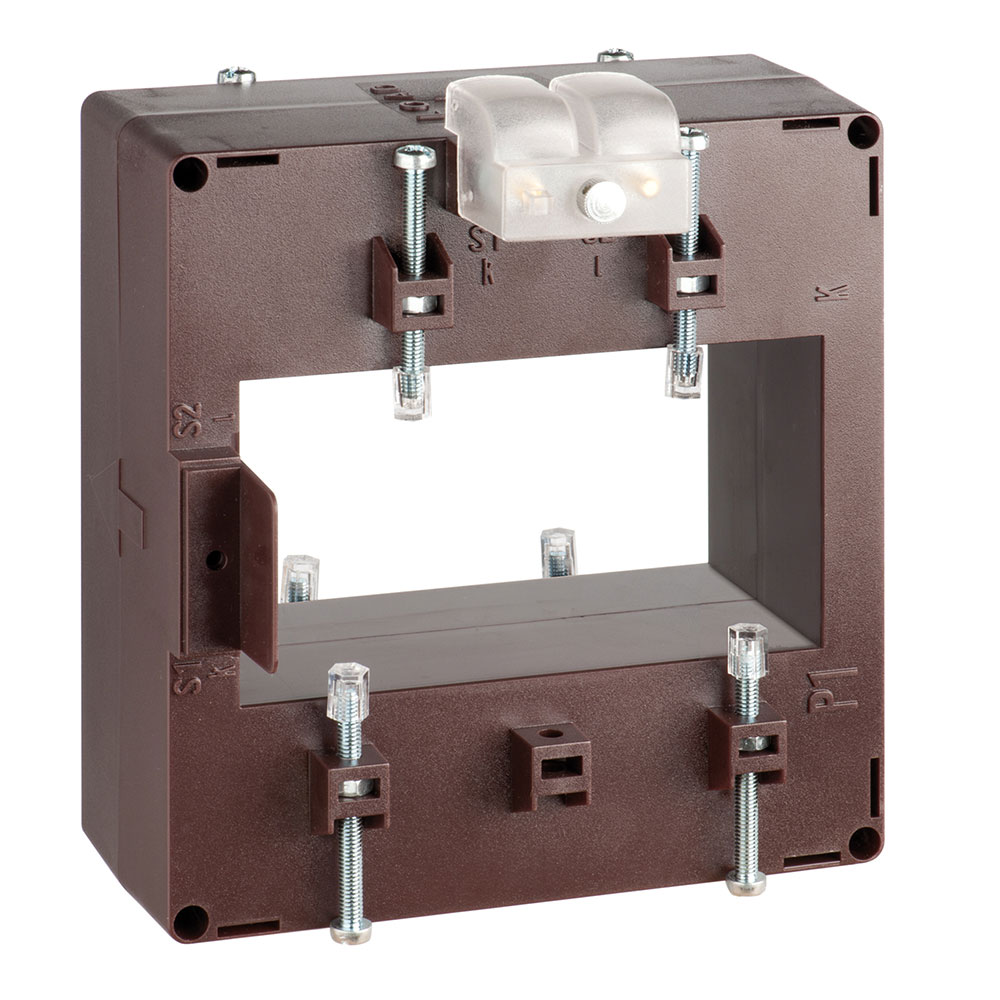

TAS102BP Single-phase current transformer – protection


  • Current transformer for rated primary currents from 300 A to 2500 A
  • Rated secondary current selectable with 5 A or 1 A
  • Suitable for 50 Hz, optionally also for 400 Hz with defined burden
  • Versions with protection classes 5P5, 5P10, 5P15 and 5P20 available
  • Rated burden depending on protection class from 1.5 VA to 45 VA
  • Instrument security factor FS ≤ 5
  • Maximum allowed cable or busbar temperature 125 °C
  • Self-powered version without auxiliary supply
  • Optional ATAP015 accessory for protection with open secondary winding
Datasheet
Add to your Quote List

Technical data

Rated primary current Ipr 300…2500 A
Rated frequency 50 Hz
Working frequency 47…63 Hz
Option Rated frequency 400 Hz, burden to be advised
Rated continuous thermal current Icth 100 % Ipr
Rated short-time thermal current Ith < 60 Ipr, max. 90 kA
Rated dynamic current Idyn 2.5 Ith
Instrument security factor (FS) ≤ 5
Rated secondary current Isr 5 / 1 A
Rated burden 8…45 VA at class 5P5 / 4…12 VA at class 5P10 / 2.5…6 VA at class 5P15 / 1.5…3 VA at class 5P20
Accuracy class Class 5P5 / 5P10 / 5P15 / 5P20
Max. power dissipation ≤ 26.5 W
Note on thermal dimensioning For switchboard thermal calculation
Max. allowed cable or busbar temperature 125 °C
Note on secondary winding With open secondary winding, an operating time of 1 minute is guaranteed.
Accessory ATAP015 (NT710) for automatic short-circuiting of the secondary winding when the threshold value is exceeded
Auxiliary supply Not required, self-powered
