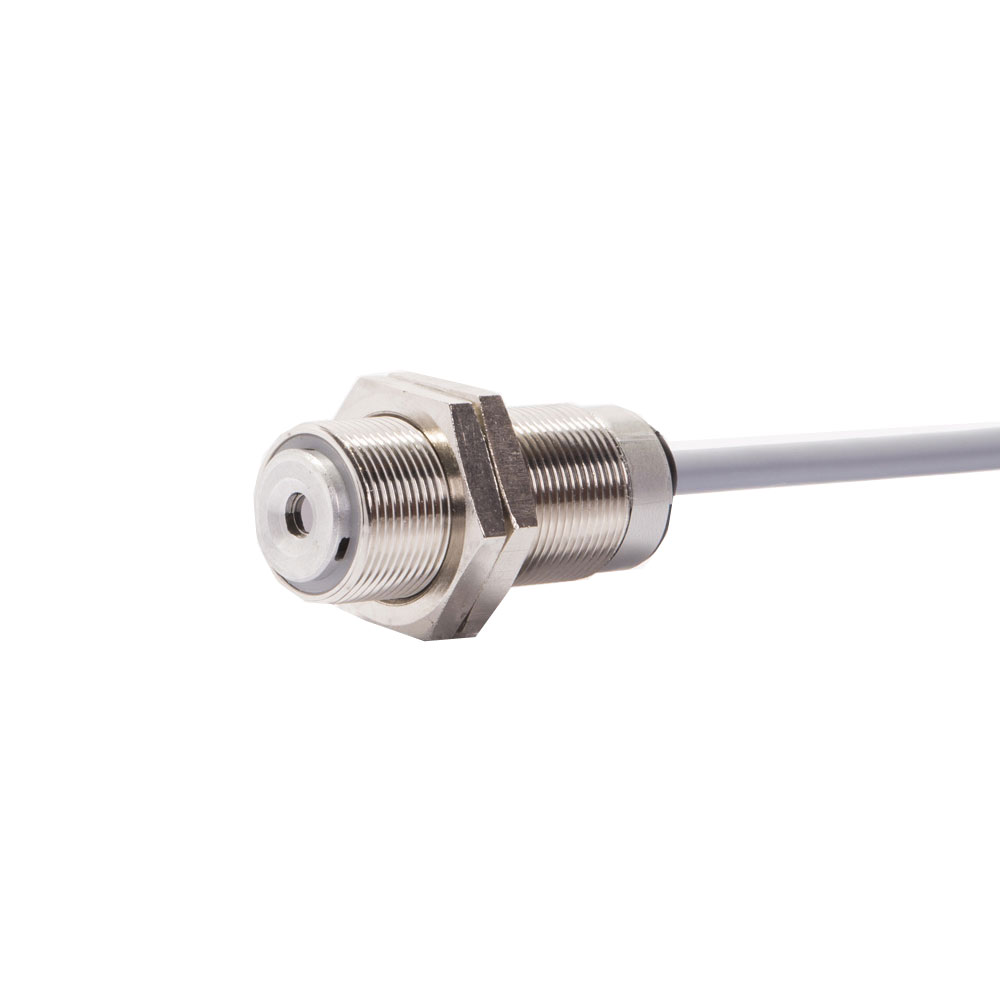

Temperature sensor IR501

Capturing larger measuring areas thanks to the distance/measuring spot ratio of 1:1
Robust, insensitive sensor housing
3 m sensor cable, extendable up to 40 m
Very small and compact design of 43x18mm for installation in tight spaces space conditions

Datasheet

The infrared temperature sensor IR501 is characterized by its compact design and large-area detection of measurement objects.

The sensor is optionally available in the following variants
(see PDF data sheet):

• IR501AC
• IR501S
• IR501ACS
• IR501SWL

Specifications

Measuring range/application range	-40°C to + 1000°C Temperature measurement novasens 2050 0 – 250% adhesive monitoring novasens 2000
Spectral range	8-14 μm
Emissivity correction	1.0 to 0.1 adjustable on the base controller
Dimensions	Length 43mm x 18mm diameter with M18 x 1 thread
Permissible humidity	95% non-condensing
Permissible ambient temperature	-20°C to +50°C
Distance to measurement spot	1:1 e.g. 30 mm distance = 30 mm measuring spot
Accuracy	+/- 1% of reading
Repeat Precision	0.5°C (0-100°C), 1.0°C (above 100°C)
Response time	40ms
Resolution	1/10°C
Outputs	0-20mA, 4-20mA, 0-10VDC selectable on base controller
Weight	160 grams (measuring head with 3m cable including connector)
Protection class	IP54
Scope of delivery	Sensor with 3 m cable incl. connector and fastening screws
Conformity	RoHS Compliant, CE Mark
Article number	0200207
The sensor is part of the complete infrared temperature measurement system novasens 2050 or the hot melt application controller novasens 2000.
