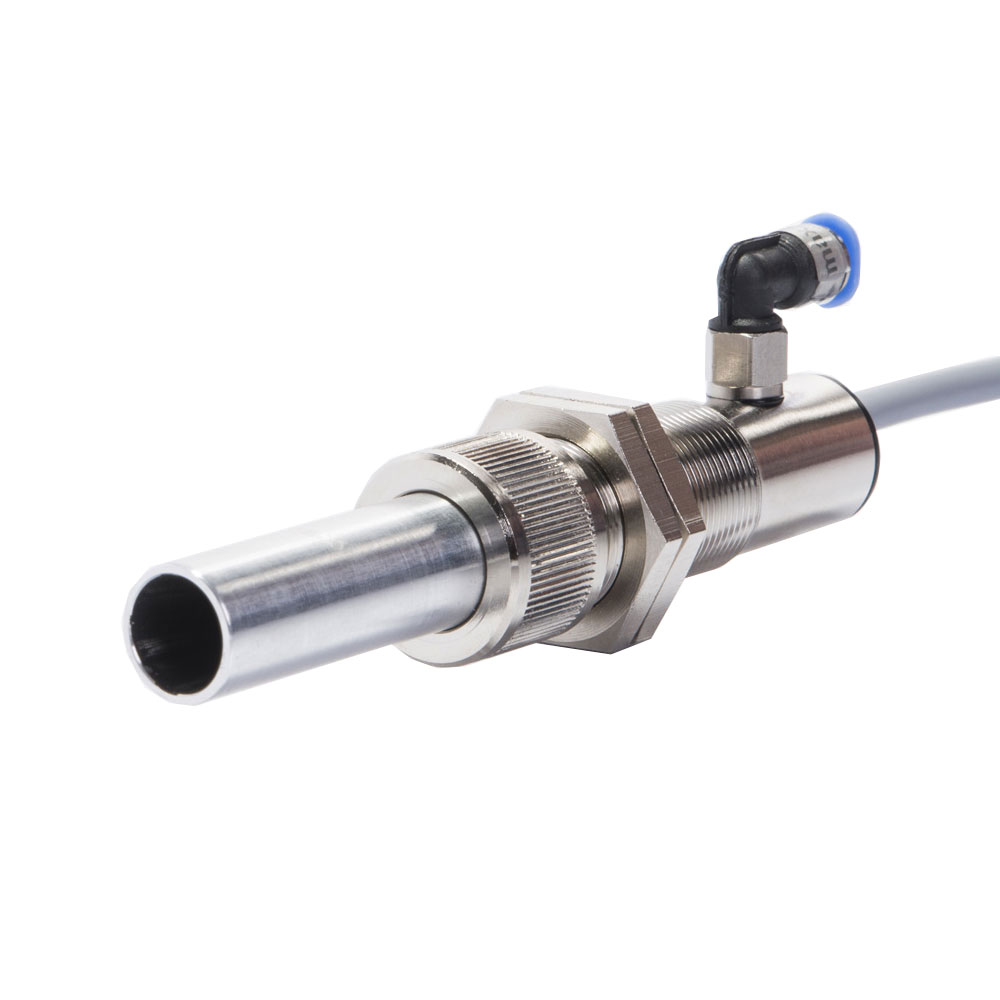

DatasheetThe IR502GACV40 is a very robust infrared temperature sensor for non-contact temperature measurement in hot or very dirty industrial environments.
With the optional 40mm long attachment tube, the IR sensor can also be used close to heat sources such as heating elements, warm air fans and incandescent coils. Thermal interference radiation and dirt particles are reliably shielded.
By means of air cooling/lens cleaning with compressed air, the infrared temperature sensor can be used up to an ambient temperature of 170°C and thus ensures precise measurement results under difficult conditions. The flushing of the sensor optics with compressed air reliably prevents contamination by dust and dirt particles.
Our customers use the sensor in laminating processes, extruders, carbon conveyor belts, tempering and adhesive application monitoring.
Specifications
| Measuring ranges: | -40°C to + 1000°C Temperature measurement 2050 0 – 250% adhesive monitoring 2000 |
| Spectral range | 8-14 μm |
| Emissivity correction | 1.0 to 0.1 adjustable on the base controller |
| Dimensions | Length 100mm x 18mm diameter with M18 x 1 thread |
| Permissible humidity | 95% non-condensing |
| Permissible ambient temperature | -20°C to +170°C |
| Distance to measurement spot | 100mm : 2mm | 50mm : 8mm | 100mm : 10mm |
| Accuracy | +/- 1% of reading |
| Repeat Precision | 0.5°C (0-100°C), 1.0°C (above 100°C) |
| Response time | 60ms |
| Resolution | 1/10°C |
| Outputs | 0-20mA, 4-20mA, 0-10VDC selectable on base controller |
| Weight | 210 grams (measuring head with 3 m cable including connector) |
| Protection class | IP64 with activated lens cleaning/air cooling by compressed air |
| Scope of delivery | sensor with 3 m cable including connector, mounting screws, Union nut and 40 mm attachment pipe, with Air filter F110 |
| Conformity | RoHS Compliant, CE Mark |
| Article number | 0200241 |
| The sensor is part of the complete infrared temperature measurement system 2050. | |
