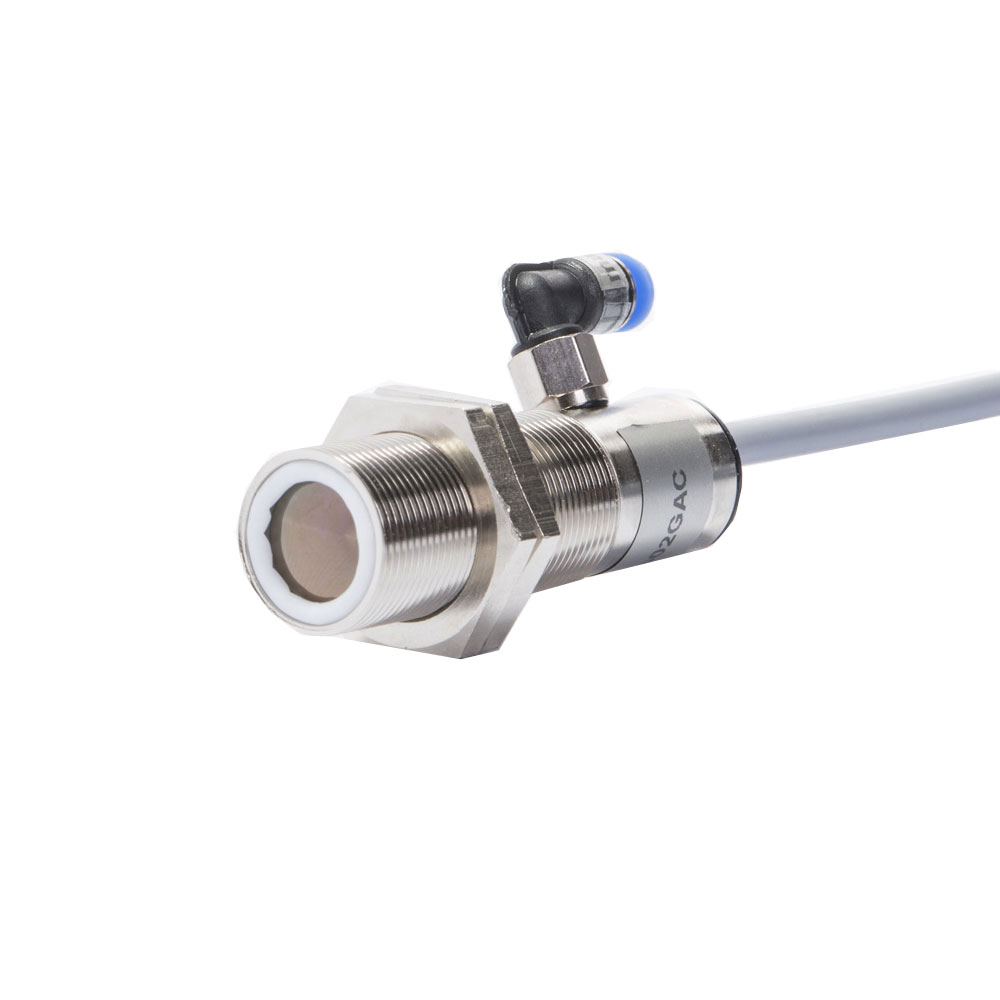

DatasheetThe infrared temperature sensor IR502GAC has the same properties as the sensor IR502G, but can also be used in very hot and/or dirty environments due to its air cooling/lens cleaning with compressed air. Its high-precision germanium optics also detects the smallest measuring objects over longer measuring distances.
Specifications
| Measuring ranges: | -40°C to + 1000°C Temperature measurement 2050 0 – 250% adhesive monitoring 2000 |
| Spectral range | 8-14 μm |
| Emissivity correction | 1.0 to 0.1 adjustable on the base controller |
| Dimensions | Length 62mm x 18mm diameter with M18 x 1 thread |
| Permissible humidity | 95% non-condensing |
| Permissible ambient temperature | -20°C to +170°C |
| Distance to measurement spot | 100mm : 2mm |
| Accuracy | +/- 1% of reading |
| Repeat Precision | 0.5°C (0-100°C), 1.0°C (above 100°C) |
| Response time | 60ms |
| Resolution | 1/10°C |
| Outputs | 0-20mA, 4-20mA, 0-10VDC selectable on base controller |
| Weight | 190 grams (measuring head with 3 m cable including connector) |
| Protection class | IP64 with activated lens cleaning/air cooling by compressed air |
| Scope of delivery | sensor with 3 m cable incl. connector and fastening screws, with air filter F110 |
| Conformity | RoHS Compliant, CE Mark |
| Article number | 0200236 |
| The sensor is part of the complete infrared temperature measurement system 2050. | |
