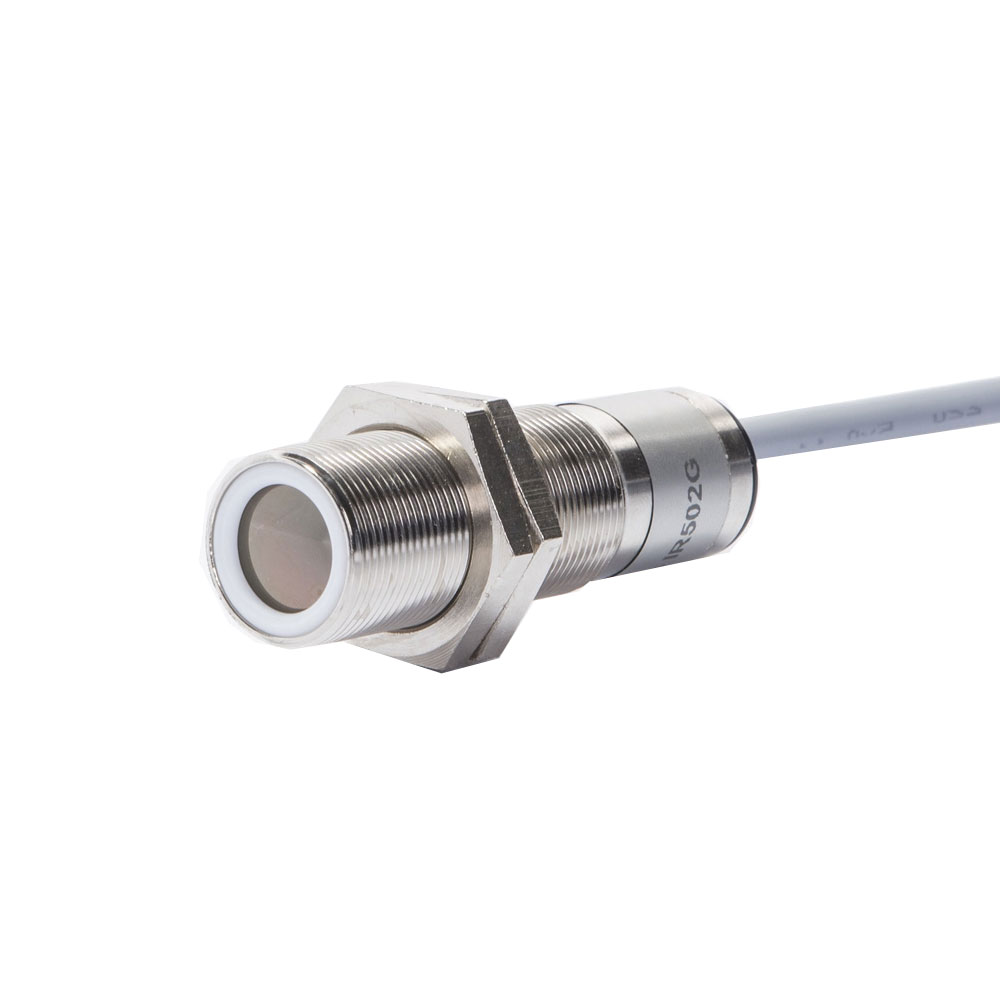

DatasheetThe IR502G infrared temperature sensor is suitable for detecting small measuring spots and measuring objects over long measuring distances thanks to its precise and high-quality germanium optics.
The sensor is optionally available in the following variants
(see PDF data sheet):
• IR502GAC
• IR502GS
• IR508G
• IR508GS
• IR502GW
Specifications
| Measuring ranges: | -40°C to + 1000°C Temperature measurement 2050 0 – 250% adhesive monitoring 2000 |
| Spectral range | 8-14 μm |
| Emissivity correction | 1.0 to 0.1 adjustable on the base controller |
| Dimensions | Length 62mm x 18mm diameter with M18 x 1 thread |
| Permissible humidity | 95% non-condensing |
| Permissible ambient temperature | -20°C to +50°C |
| Distance to measurement spot | 100mm : 2mm |
| Accuracy | +/- 1% of reading |
| Repeat Precision | 0.5°C (0-100°C), 1.0°C (above 100°C) |
| Response time | 60ms |
| Resolution | 1/10°C |
| Outputs | 0-20mA, 4-20mA, 0-10VDC selectable on base controller |
| Weight | 170 grams (measuring head with 3 m cable including connector) |
| Protection class | IP64 |
| Scope of delivery | Sensor with 3 m cable incl. connector and fastening screws |
| Conformity | RoHS Compliant, CE Mark |
| Article number | 0200231 |
| The sensor is part of the complete infrared temperature measurement system 2050. | |
