Datasheet| Type | 2258.4 |
| brief data | 0 – 150V / 0 – 10A |

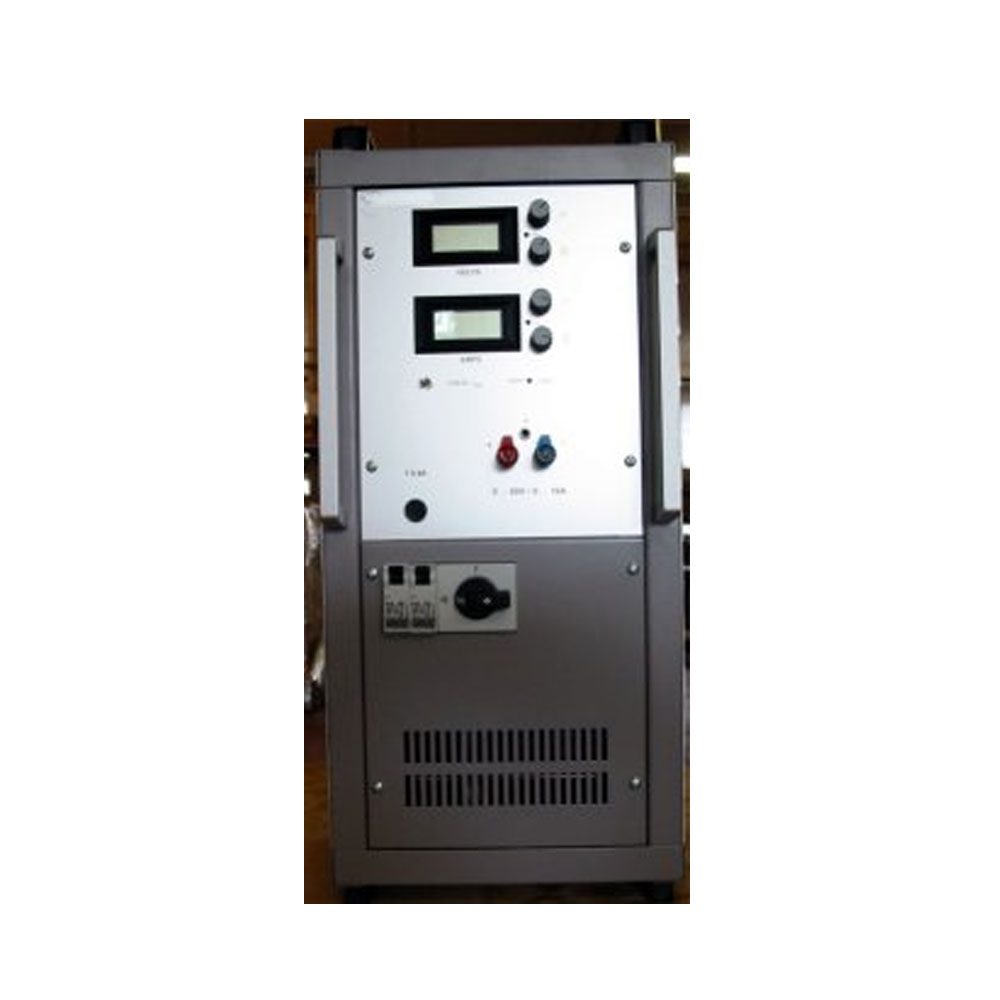

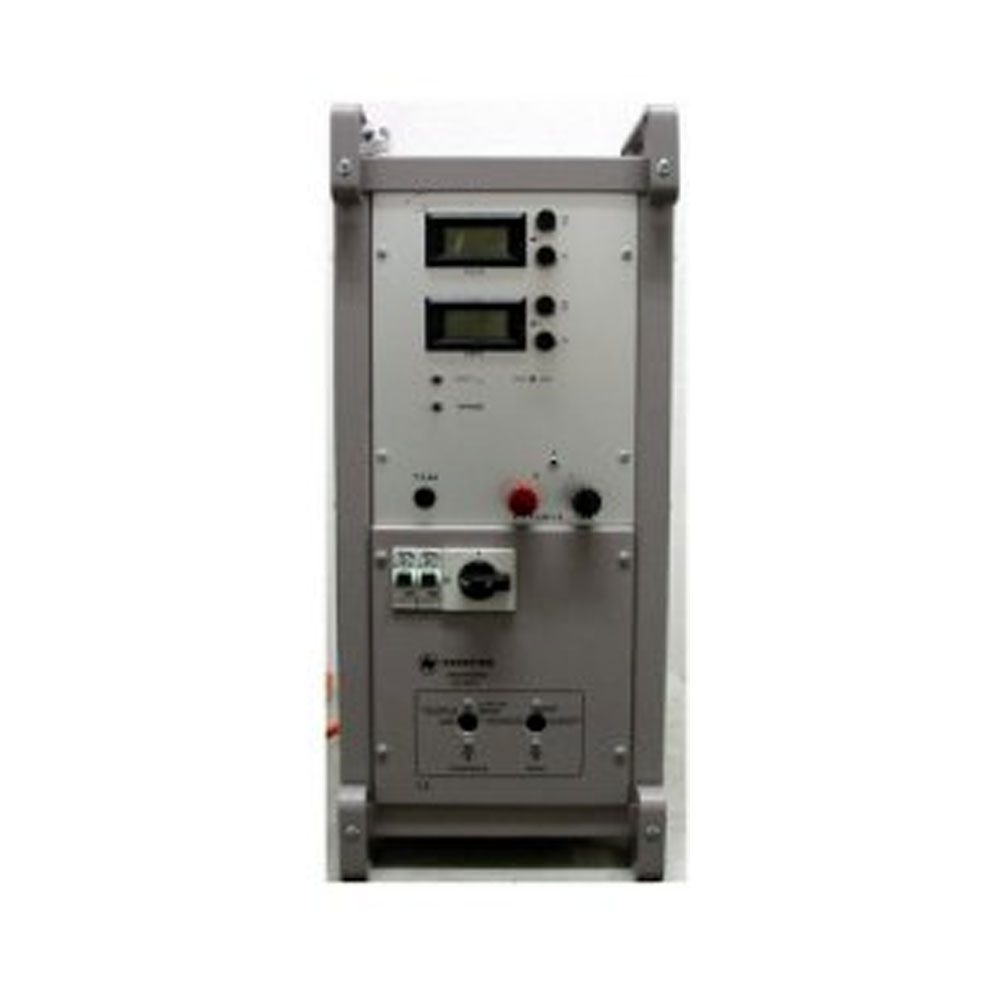

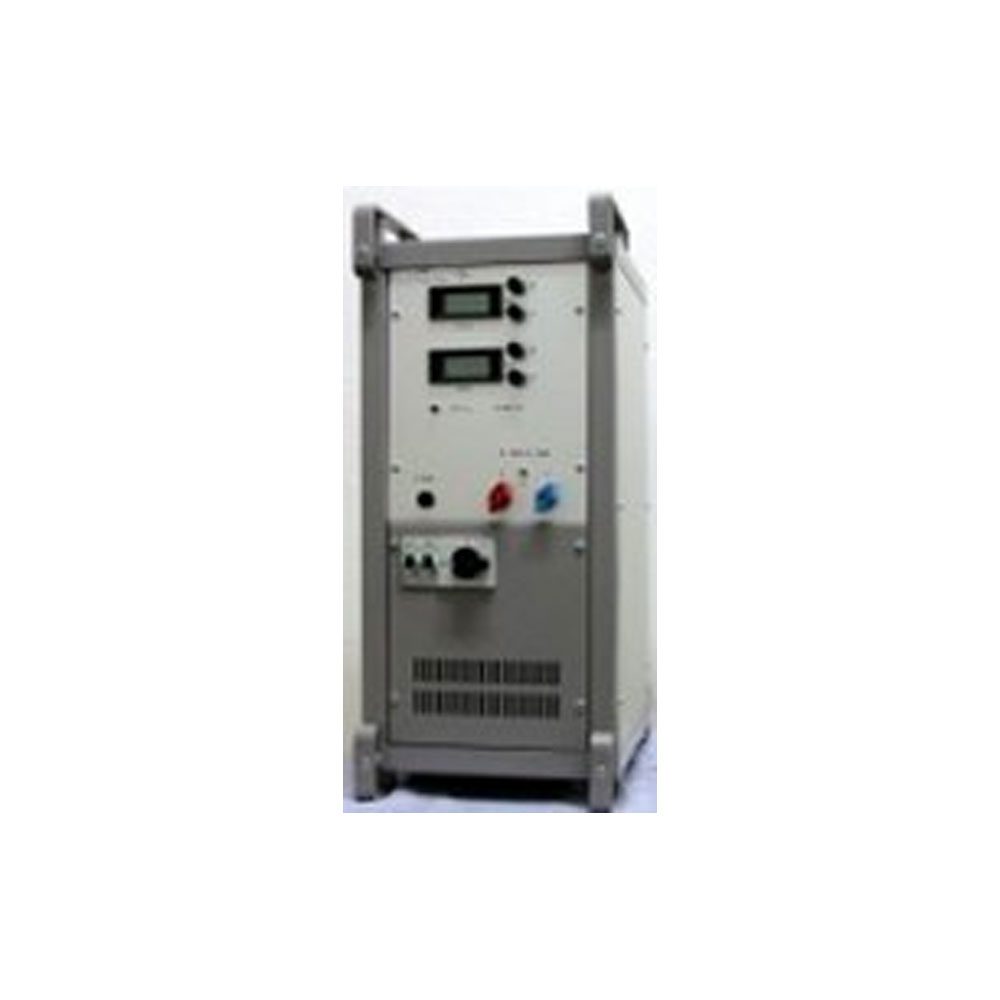

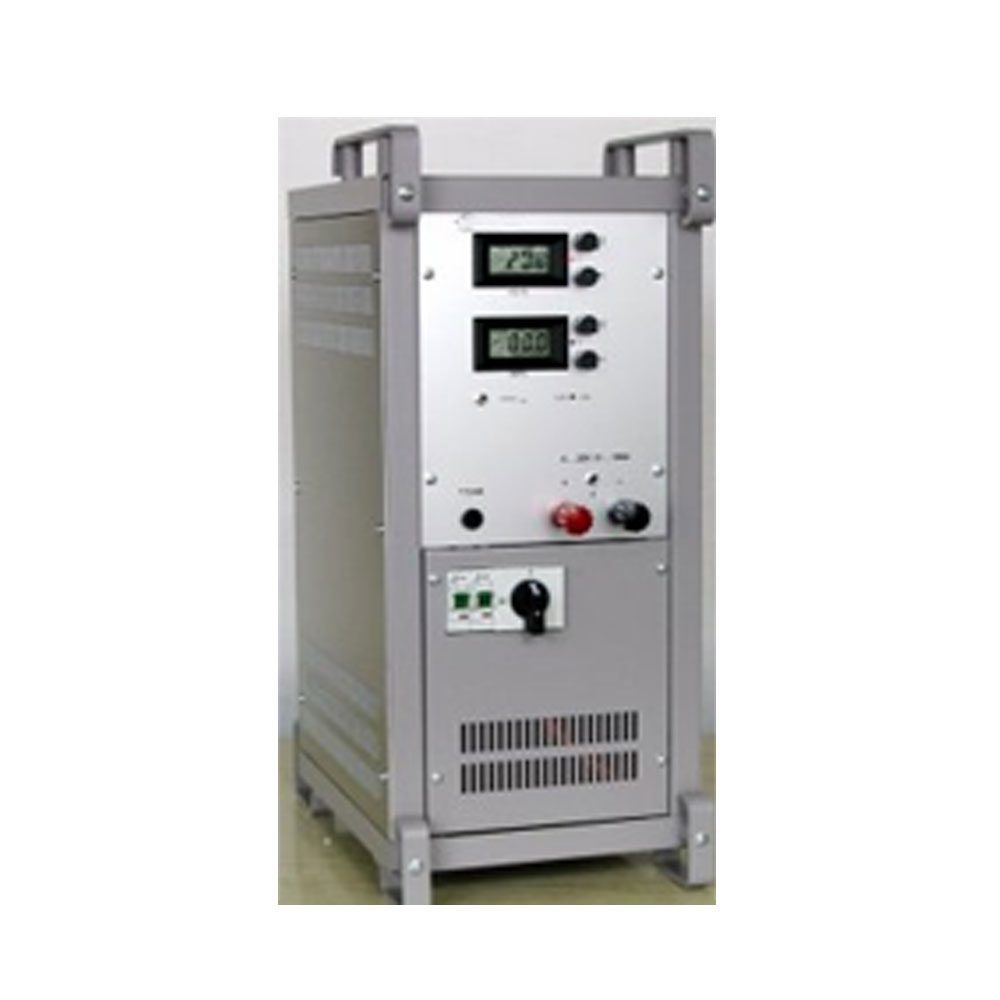

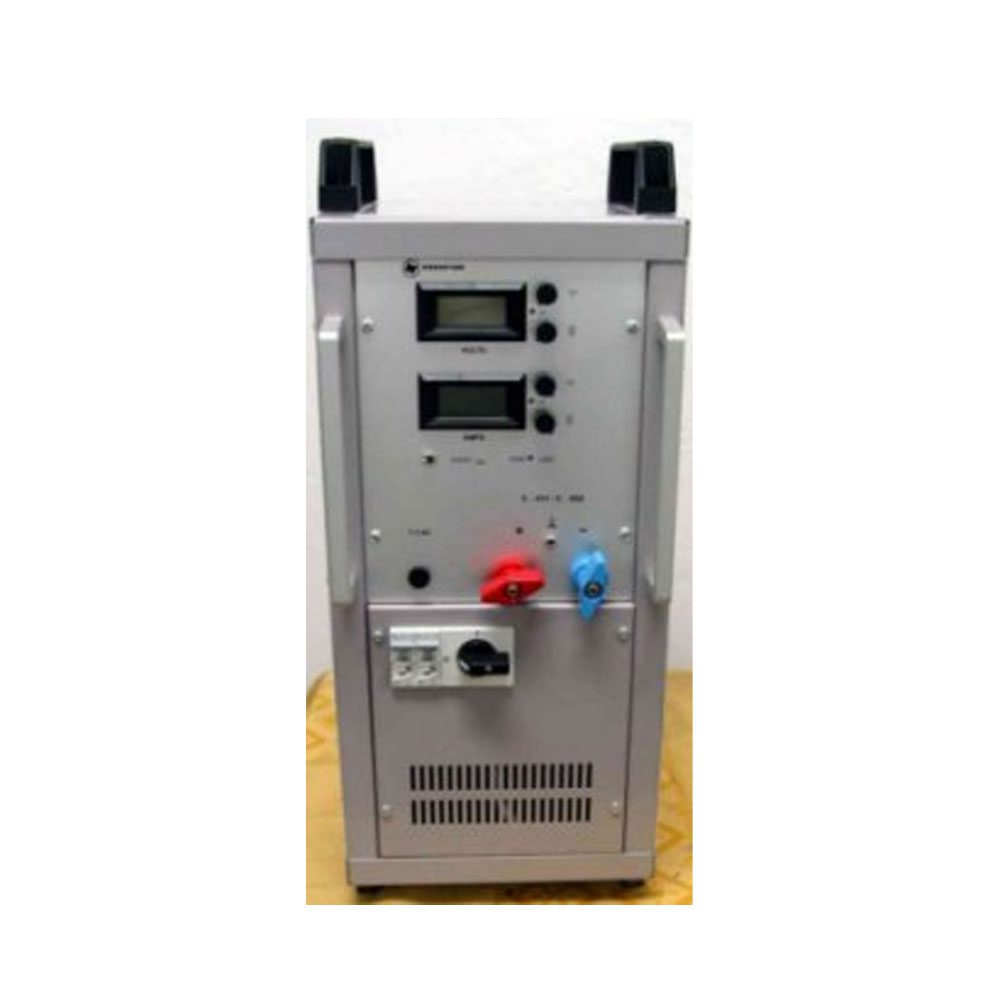

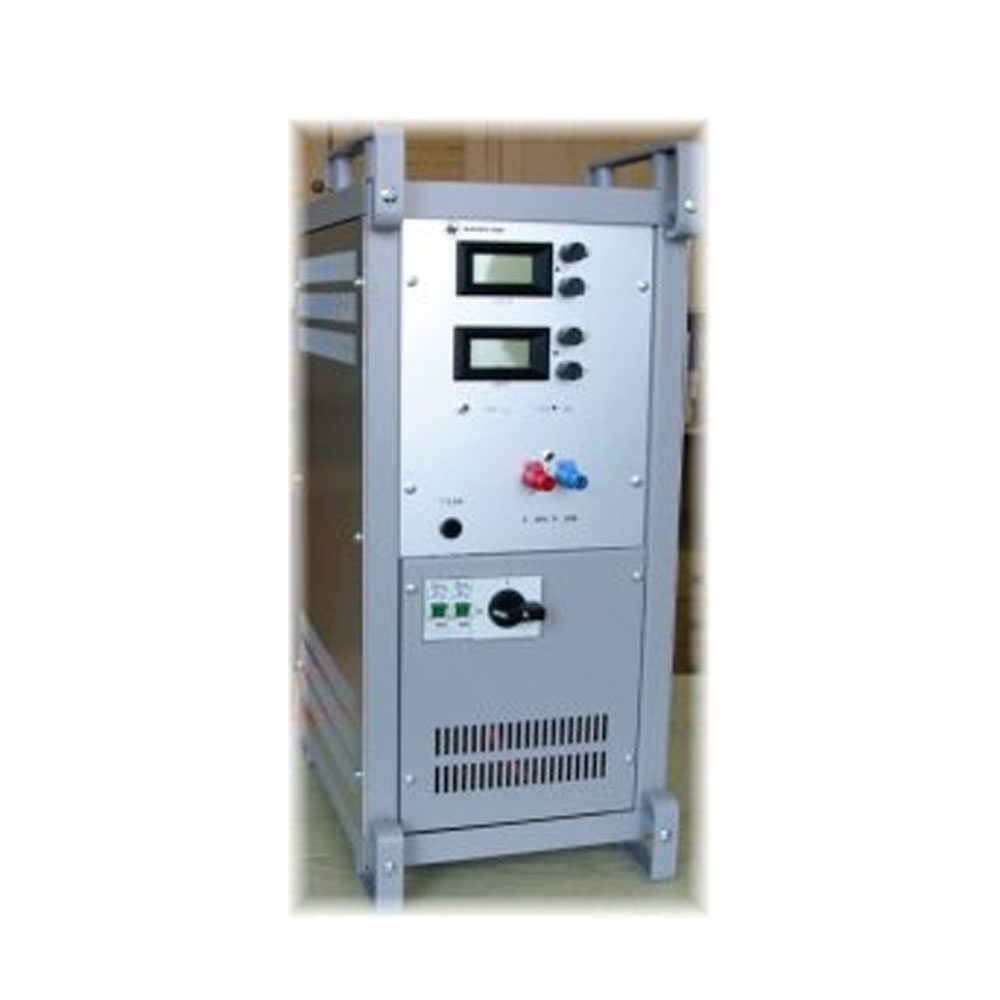

| description | High performance DC voltage regulator |
| input voltage | 230VAC 50Hz |
| Input/output separation | galvanically isolated, unearthed |
| output voltage | 0… 150VDC |
| output current | 0… 10A |
| output current duration | |
| output power | 1500W |
| continuous power | 1500W |
| short-term resilience | 1500W |
| CV Stability Load 0-100% | 10mV |
| CV residual ripple Ueff | 10mV |
| settling time | 30ms |
| no-load current consumption | |
| connection input | 3-pole mains cable with Euro safety plug |
| connection output | Safety sockets 4mm |
| Device Properties | Linear regulator and triac pre-regulator, automatic operating mode changeover CV/CC, over-temperature protection, voltage and current regulation, short-circuit proof |
| cooling | Fan |
| Weight | 50 |
| casing | standing device |
| Dimensions | 250x615x380 |
| Degree of protection/class | IP30/I |
| color | RAL 7035 light grey |
| Stability Ua with change Ue | |
| Others | Continuous power, low residual ripple, test button for adjustable current limitation, also available with remote control input and monitor output on request |
