Anton Paar DMA 35 Basic – portable digital density meter

The Anton Paar DMA 35 Basic is a compact, portable density meter for fast determination of density and concentration directly on site.
The sample can be drawn directly from containers, tanks, drums or other sample vessels using the integrated hand pump and measured within seconds.

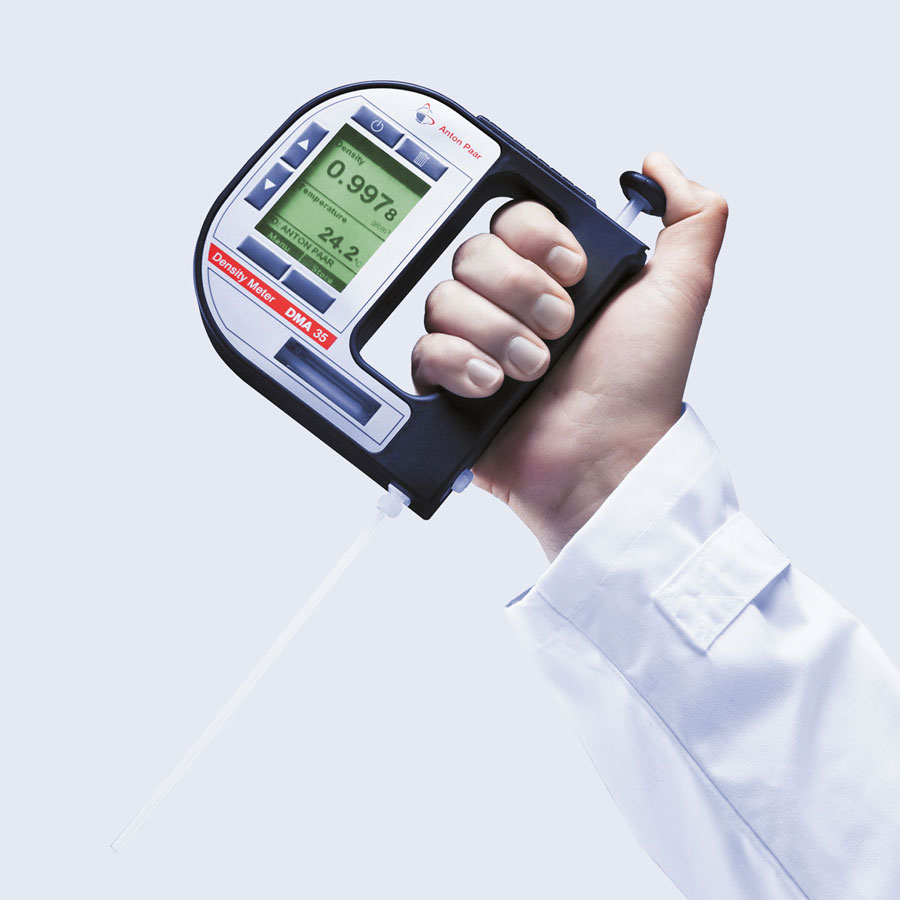

With a weight of only 345 g and its particularly flat design, the DMA 35 Basic is ideally suited for mobile measurements and hard-to-reach measuring points.
Only approximately 2 ml sample volume is required for a measurement.

In addition to density, various concentration parameters can be displayed directly. These include relative density, alcohol concentration, sugar and extract values, API functions and sulfuric acid concentrations.
Programmable customer-specific functions are also available.

Fast density measurement directly at the sample

Compared with conventional glass hydrometers, the DMA 35 Basic enables digital measurement with low sample consumption and without the need for manual conversion of measurement results.
The integrated temperature measurement and temperature compensation ensure that results are available quickly and reproducibly.

• Measurement directly at the storage container or system
• Only approx. 2 ml sample volume required
• Integrated hand pump for easy sample intake
• Direct display of density and various concentration parameters
• No additional manual conversion required
• Storage and clear assignment of measurement results
• User-independent digital measurement results

Compact and robust for mobile use

The lightweight and flat design makes measurements easier in locations where conventional laboratory instruments cannot be used.

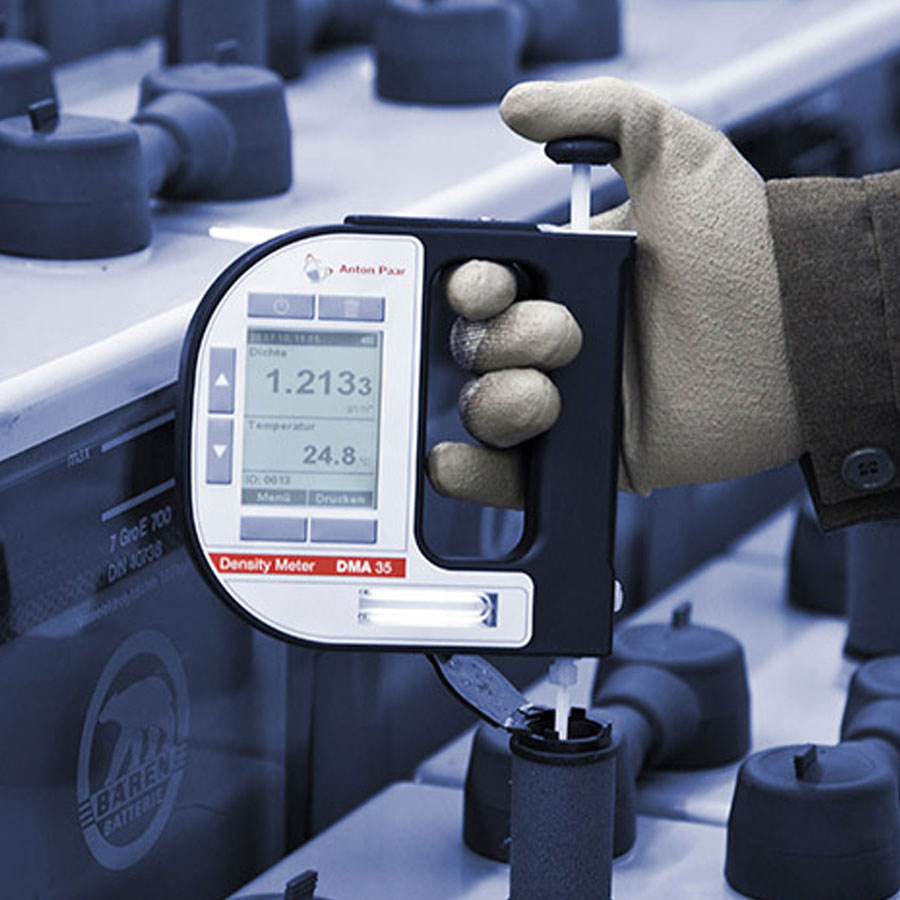

The instrument is suitable, for example, for inspection measurements in production areas, warehouses, beverage plants, battery rooms or for quality control directly at the system.

The housing has an IP54 degree of protection and is therefore protected against dust and splash water.
The sample-contacting components are suitable for numerous typical liquids, solutions and acids.

Intelligent functions for an efficient workflow

• Backlit display for good readability
• Illuminated measuring cell for checking sample filling
• Memory for up to 1,024 measurement results
• Up to 20 measurement methods can be stored
• Up to 100 sample IDs for clear assignment of measuring points
• IrDA interface for data transfer
• Optional printing of measurement results via a portable thermal printer

Typical applications

The DMA 35 Basic can be used in numerous applications where density or concentration needs to be determined quickly and directly on site.

• Beverage industry and breweries
• Food industry
• Chemical industry
• Acids and chemical solutions
• Cosmetics and hygiene products
• Battery and electrical industry
• Environmental technology
• Pharmaceuticals, medicine and biotechnology
• Research and education

Technical data

FeatureDMA 35 BasicDensity measuring range0 to 3 g/cm³Temperature measuring range0 to 40 °C*Density accuracy0.001 g/cm³**Temperature accuracy0.2 °CDensity repeatability0.0005 g/cm³Temperature repeatability0.1 °CDensity reproducibility0.0007 g/cm³Digital density resolution0.0015 g/cm³Digital temperature resolution0.1 °CAmbient temperature-10 to +50 °C***Supported measuring parametersSample volume2 mlDimensions (L × W × H)140 × 138 × 27 mmData memory1,024 measurement results, 20 measurement methods, 100 sample IDsPower supply2 × 1.5 V LR06 AA alkaline batteriesWeight345 gInterfaceIrDA OBEX/LPTDegree of protectionIP54Intrinsically safe / Ex versionNoOptional accessoriesScope of deliveryPortable density meter, suction tube, adapter for syringe filling,

	Relative density Alcohol tables Sugar/extract tables API functions H2SO4 tables 10 programmable customer-specific functions, e.g. for H2O2, HCl or CH2O
	Extended suction tube / filling tube Portable thermal printer with IrDA interface IrDA USB adapter Hand strap ISO calibration
	Syringes, batteries, Allen key and operating instructions

* Filling with samples at higher temperatures is possible.
** Specification at a viscosity < 100 mPa·s and a density < 2 g/cm³.
*** The sample must not freeze inside the measuring cell.

Standards

• JIS K 0061
• ISO 15212-1
• DIN EN ISO 15212-1
• IP 559

Conclusion

The Anton Paar DMA 35 Basic combines the advantages of a portable measuring instrument with convenient digital determination of density and concentration.
Thanks to the integrated sample pump, low sample volume, large data memory and compact design, the instrument is particularly suitable for regular inspection measurements directly in production, warehouses, laboratories or service applications.
