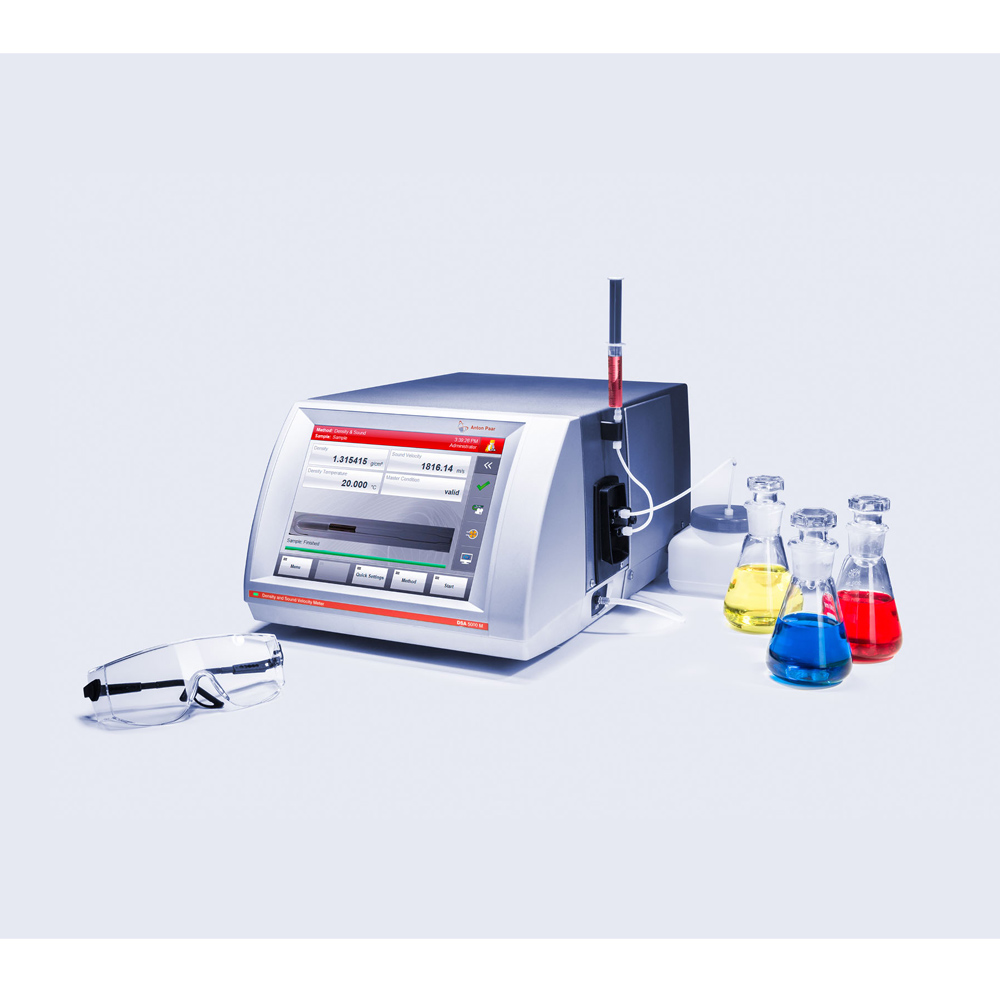

DSA5000M Density and sound velocity meter

The best in accuracy, repeatability, and reproducibility

DSA 5000 M provides the best results in the market:

• Density: Repeatability up to the 7th digit
• Sound velocity: Repeatability up to 0.1 m/s
• Reproducibility: 0.000005 g/cm³ (density), 0.5 m/s (sound velocity)

Eliminates temperature drifts

The ThermoBalance™ technology makes sure that this accuracy is reached under any temperature up to 100 °C. A reference oscillator is used to eliminate temperature-related fluctuations of the glass tube – even after years of operation. This elimination of drifts makes ThermoBalance™ the ideal foundation for:

• Thermodynamical R&D studies with frequently changing measuring temperatures
• Routine quality control with changing sample temperatures

The fastest way to determine sulfuric acid concentration

In terms of accuracy, DSA 5000 M is the best solution for sulfuric acid. The combination of density and sound velocity measurements makes sure that you notice the smallest deviations in your production process. You can react quickly, need less time to correct errors, and produce less rejects. DSA 5000 M is also the fastest way to measure sulfuric acids. It is the only way to measure sulfuric acid over the whole concentration range in one instrument – with no need to change setups in between different samples or to use tremendous amounts of consumables such as reagents. Whether the concentration of your sulfuric acid is 0 % or 114 %, DSA 5000 M delivers the result in less than two minutes.

Detects filling errors and gas bubbles

FillingCheck™ detects filling errors and generates a warning if it finds gas bubbles or particles in your sample. If you filled your sample correctly, the feature will give you a “go” to start the measurement. Additionally, you can always check the U-View™ camera that displays and stores live images of the filled U-tube. This real-time monitoring notifies you of mistakes right away and gives you the peace of mind that your results are not distorted by filling errors.

One sample, one measurement cycle, numerous results

DSA 5000 M retrieves several parameters from one and the same sample.

Measured parameters:

• Density
• Sound velocity

Derived measurands:

• Concentration of two-component solutions
• Concentration of three-component solutions
• Adiabatic compressibility

The sample automatically runs through both measuring cells. For one run, you need only 3.5 mL of sample to get all these parameters.

The most stable results available

The viscosity correction is responsible for the high repeatability of density results in DSA 5000 M. It eliminates viscosity-related errors twice as effectively as ever before and works automatically across the entire viscosity range of your samples. Thanks to this technology, you can detect the smallest deviations in your continuous production and react quickly to minimize downtimes. The viscosity correction already comes calibrated ex-factory so you will never need viscosity standards, saving you time for calibration and money for standards.
