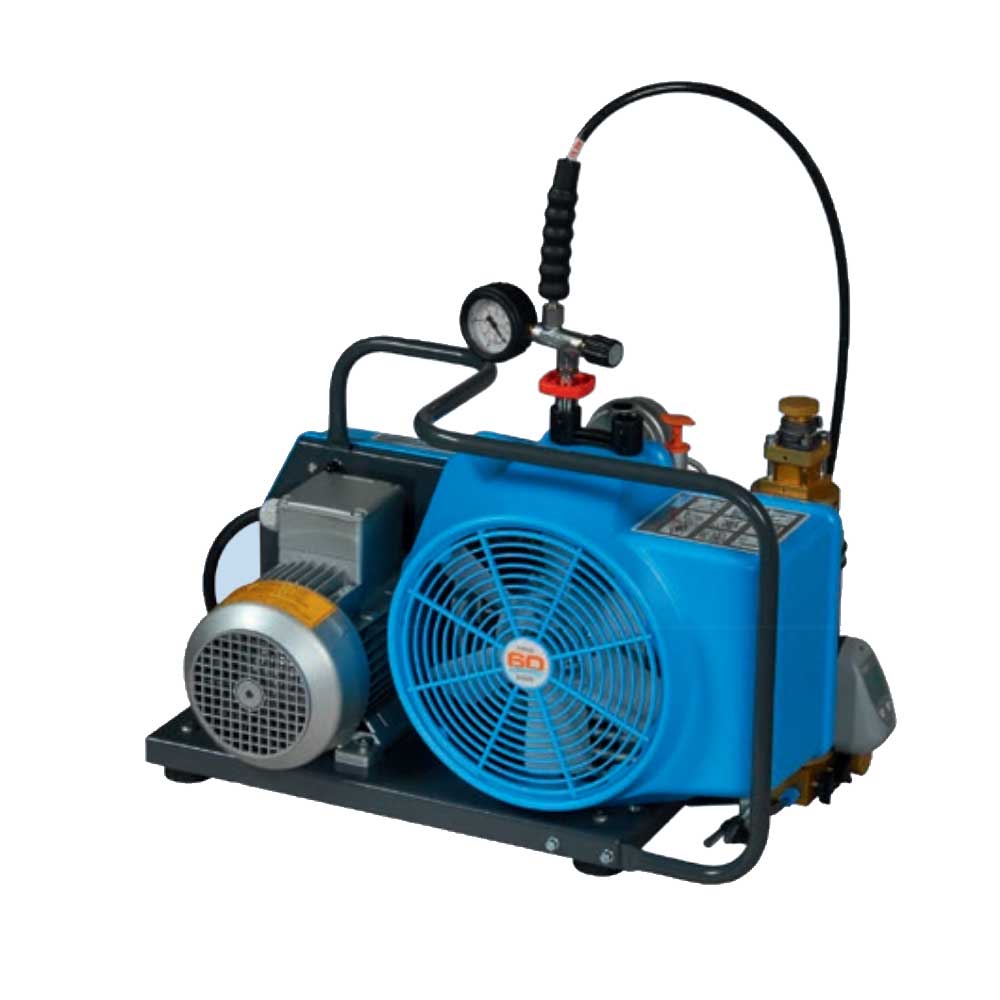

Pressure supply package, model CPK-PS300, Pmax = 300 bar (4,350 psi)


  • Pressure generation from atmospheric pressure to 300 bar (4,350 psi)
  • Pressure provision for pressure controllers and laboratory measuring instruments for testing, calibrating and adjusting
  • Working pressure supply for pressure controllers (CPC4000, CPC6050, CPC8000) for measuring ranges ≤ 300 bar (4,350 psi)
  • Test pressure supply for high-pressure manifolds or adjustment benches
Datasheet
Add to your Quote List

Components

  • 300 bar (4,350 psi) high-pressure compressor with filter system
  • Connecting hose with 6 mm Swagelok® union nut
  • Compressed-air storage cylinder 6 litres / 300 bar (4,350 psi)
  • Pressure reducer assembly (adjustable working
    pressures between 5 … 250 bar (72.5 … 3,625 psi)) with
    cylinder pressure gauge, pressure controller, output
    pressure gauge and shut-off valve, optionally mounted
    together with the storage cylinder on a stainless steel wall
    bracket



Supplementary individual components

  • Connecting hoses
  • Compressed-air storage cylinder
  • Connection assembly
  • Sealing






Pressure supply package, model CPK-PS300, Pmax = 300 bar (4,350 psi)
