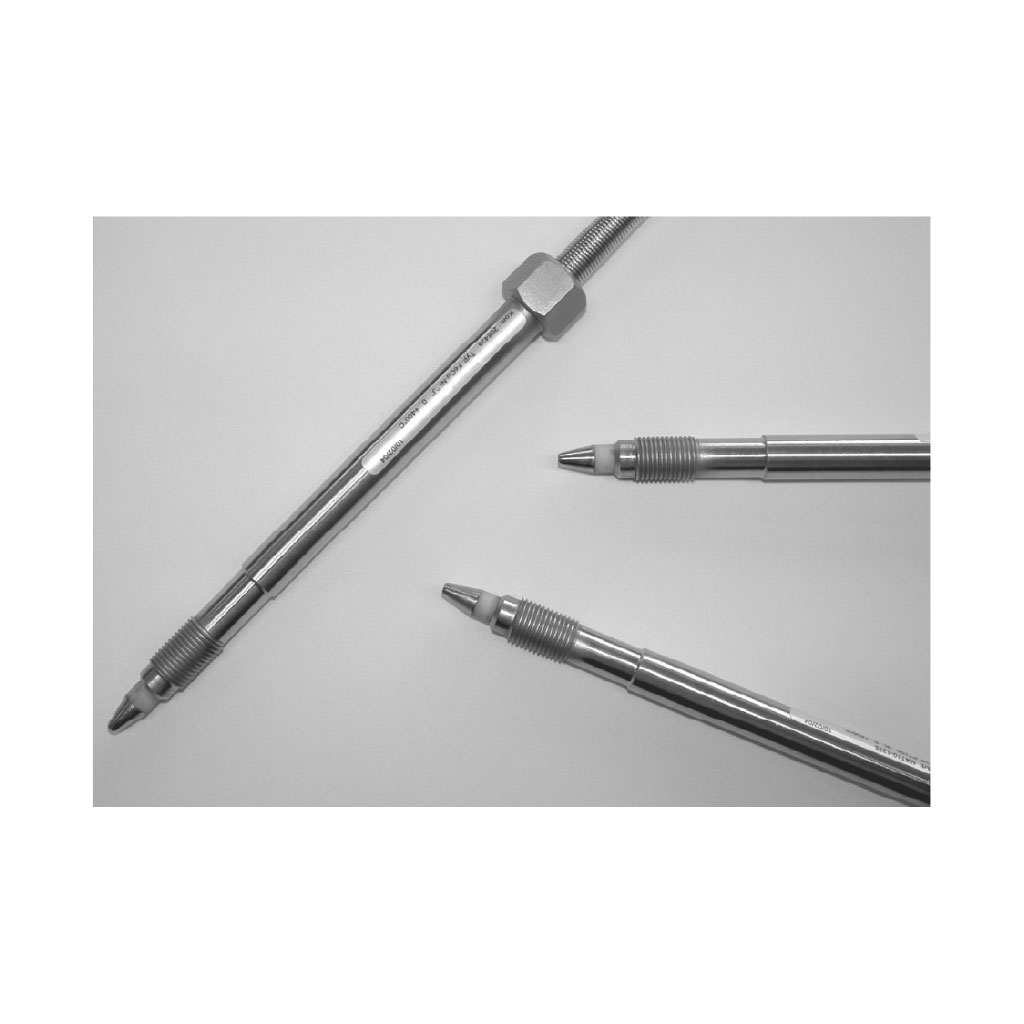

DatasheetDynisco DYKE Melt Temperature Probe
The Dynisco DYKE Series melt temperature probes have been designed especially to meet the requirements of the plastics industry. Their flexible design allows use in extrusion and injection molding processes. The series provides a rugged solution for temperature measurement in polymer processing equipment and is suitable for demanding process conditions.
The mounting thread is compatible with the threads used for Dynisco melt pressure transducers. Therefore, the DYKE Series is ready for use in most extrusion systems. As an alternative to the DYMT Series, the DYKE Series offers the possibility of thermal insulation of the housing. The sensor tip is conical and can be chemically insulated from the housing.
The temperature probes are available with different thermocouples or RTD versions. Depending on the configuration, the electrical connection is made via an IEC connector for thermocouples or a DIN connector for RTD elements. The standard stem length is 152 mm, with other lengths available on request. Use in hazardous environments is possible with suitable accessory equipment.
| Type | Melt temperature probe for plastic melt |
|---|---|
| Series | Dynisco DYKE |
| Model | DYKE |
| Application | Temperature measurement in extrusion and injection molding processes in the plastics industry |
| Design | Rugged temperature probe for polymer melts |
| Maximum pressure range | 1000 bar |
| Threads | 1/2″-20 UNF, M18 x 1.5 or M14 x 1.5 |
| Stem length | 152 mm standard, other lengths on request |
| Mounting thread | Rotary, with chemically insulated rigid tip |
| Blade length | Several lengths from 5…25 mm, available in 5 mm steps |
| Sensor tip | Conical, selectable with ceramic insulation |
| Material in contact with media | Material no. 1.4571 |
| Thermocouple | J, K, L, other types on request |
| RTD | Connectable as 2-, 3- or 4-wire version |
| Electrical connection | IEC connector for thermocouples, DIN connector for RTD |
| Pipe connection | Straight or 90° angled |
| Cable length | 150 mm, other lengths on request |
| Compatibility | Compatible with Dynisco pressure transducer mounting holes |
| Thermal insulation | Housing can be thermally insulated |
| Chemical insulation | Sensor tip can be chemically insulated from the housing |
| Hazardous area use | Use in hazardous environments is possible with suitable accessory equipment |
| Key features | Rugged design, various threads, different thermocouple and RTD versions, conical sensor tip, compatible with Dynisco pressure transducer mounting holes |
