DatasheetSiemens SITRANS FM MAG 6000 I and MAG 6000 I Ex Transmitters

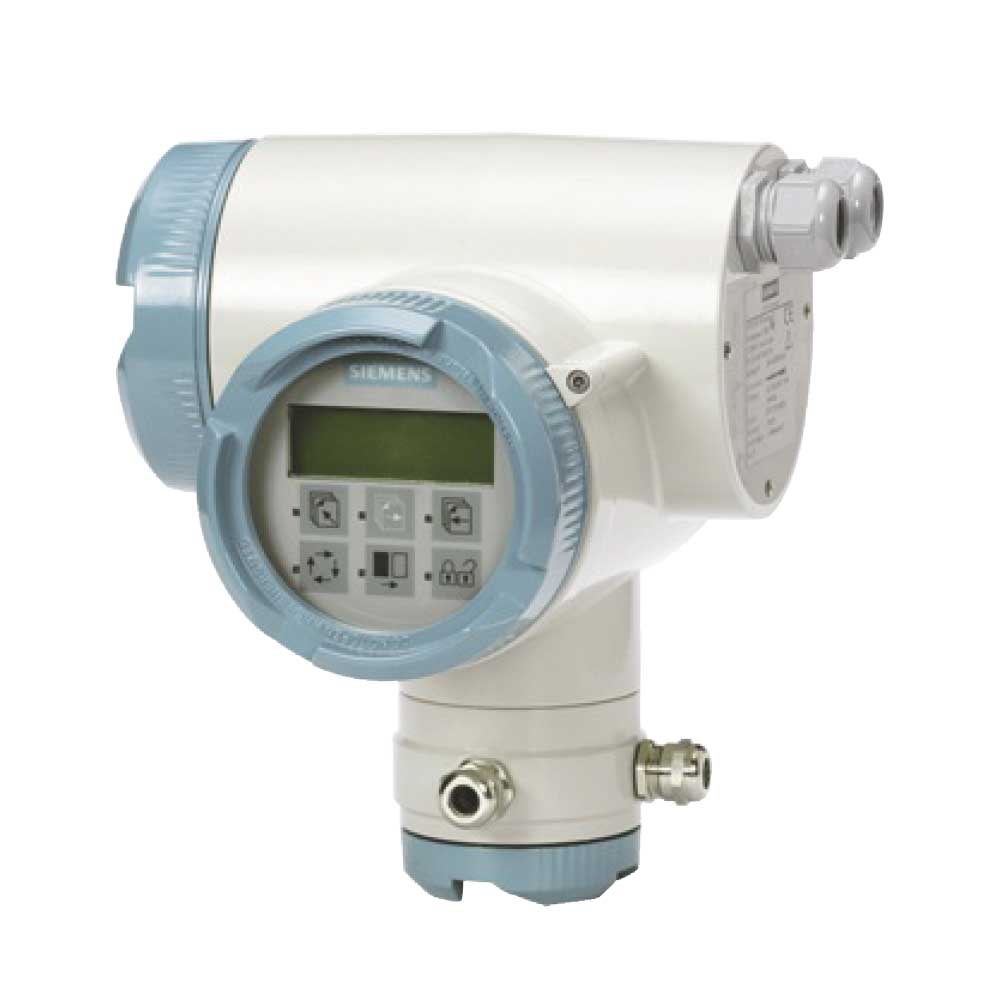

The Siemens SITRANS FM MAG 6000 I is a high-performance transmitter for electromagnetic flow measurement systems. It is suitable for compact or remote installation and can be used together with compatible SITRANS FM flow sensors. The MAG 6000 I Ex version is additionally designed for use in hazardous areas.
The transmitter offers high signal resolution, comprehensive diagnostic functions and numerous communication options. Full input and output functionality is also available in the Ex version. This makes the MAG 6000 I especially suitable for applications requiring reliable flow measurement, digital communication and high operational safety.
Key benefits
- Transmitter for electromagnetic flowmeters
- Suitable for compact or remote installation
- Ex version available for hazardous areas
- Full input and output functionality also in the Ex version
- Excellent signal resolution for optimum dynamics
- Digital signal processing with many configuration options
- Automatic commissioning by reading SENSORPROM data
- User-configurable operating menu with password protection
- Display with 3 lines of 20 characters each in 11 languages
- Totalizers for forward, reverse and net flow
- Multiple function outputs for process control
- Comprehensive self-diagnostics with fault indication and fault logging
- Batch control available
- Self-verification possible
Typical applications
The SITRANS FM MAG 6000 I is used in industrial flow measurement systems where conductive liquids must be measured and the measured values reliably transmitted to control or monitoring systems. The Ex version extends the application range to plants with hazardous atmospheres.
- Chemical and petrochemical industry
- Oil and gas industry
- Water and wastewater technology
- Power generation and utilities
- Process industry with increased requirements for diagnostics and communication
- Hazardous areas where approved flow measurement equipment is required
Design and installation
The transmitter is suitable for compact or remote installation in non-hazardous areas or hazardous areas. With compact installation, the transmitter is mounted directly with the sensor. With remote installation, the transmitter is installed separately and connected to the sensor via connection cables.
This flexibility is particularly useful when the measuring point is difficult to access, high ambient temperatures occur or the transmitter must be installed in a more convenient operating position.
Functions
The SITRANS FM MAG 6000 I offers comprehensive functions for measured value display, process control, diagnostics and communication. It can display flow rates, process two measuring ranges and provide different totalizers.
- Flow rate
- 2 measuring ranges
- 2 totalizers
- Low-flow cut-off
- Flow direction
- Fault system
- Operating time
- Uni- and bidirectional flow
- Limit switch and pulse output
- Batch control
Operation and communication
The transmitter is microprocessor-based and equipped with a multilingual alphanumeric display. Operation is carried out via a configurable menu with password protection. Measured values, totalizers, diagnostic information and settings can be displayed and adjusted directly on site.
Add-on modules are available for integration into automation and control systems. Supported communication protocols include HART, FOUNDATION Fieldbus H1, DeviceNet, PROFIBUS PA, PROFIBUS DP and Modbus RTU/RS485.
Display and parameterization
The transmitter can be operated and parameterized using different components. Operation is possible both directly on the device and via external communication and engineering tools.
- Keypad and display unit
- HART communicator
- PC/laptop with SIMATIC PDM via HART communication
- PC/laptop with SIMATIC PDM via PROFIBUS or Modbus communication
Differences between MAG 6000 I and MAG 6000 I Ex
| Feature | SITRANS FM MAG 6000 I | SITRANS FM MAG 6000 I Ex |
|---|---|---|
| Application area | For non-hazardous areas | For hazardous areas |
| Installation | Compact or remote installation possible | Compact or remote installation possible in approved Ex applications |
| Functionality | Full input and output functionality | Full input and output functionality also in the Ex version |
| Communication | Add-on modules for HART, FOUNDATION Fieldbus H1, DeviceNet, PROFIBUS PA/DP and Modbus RTU/RS485 possible | Communication options can be used depending on Ex version and approval |
| Typical application | Industrial flow measurement in standard process areas | Flow measurement in plants with hazardous atmospheres |
| Main difference | Standard version for normal industrial environments | Ex-approved version for safety-critical hazardous areas |
Technical overview
| Product | Siemens SITRANS FM MAG 6000 I and MAG 6000 I Ex |
|---|---|
| Device type | Transmitter for electromagnetic flow measurement |
| Installation | Compact or remote installation |
| Application area | Non-hazardous and hazardous areas, depending on version |
| Measured values | Flow rate, forward flow, reverse flow, net flow |
| Measuring ranges | 2 measuring ranges |
| Totalizers | 2 totalizers |
| Display | 3 lines with 20 characters each in 11 languages |
| Commissioning | Automatic reading of data stored in SENSORPROM |
| Outputs | Analog, pulse/frequency and relay outputs |
| Functions | Low-flow cut-off, flow direction, fault system, operating time, batch control |
| Communication | HART, FOUNDATION Fieldbus H1, DeviceNet, PROFIBUS PA, PROFIBUS DP, Modbus RTU/RS485 |
| Diagnostics | Comprehensive self-diagnostics with fault indication and fault logging |
| Standards / recommendations | NAMUR NE 21, NE 32, NE 43, NE 53 and NE 70 |
| Special features | High signal resolution, extensive communication, SENSORPROM, diagnostic functions, Ex version available |
Practical benefit
The SITRANS FM MAG 6000 I is a powerful transmitter platform for electromagnetic flow measurement systems. The combination of flexible installation, digital signal processing, extensive communication and Ex option makes it particularly suitable for demanding industrial plants with high requirements for availability and operational safety.
