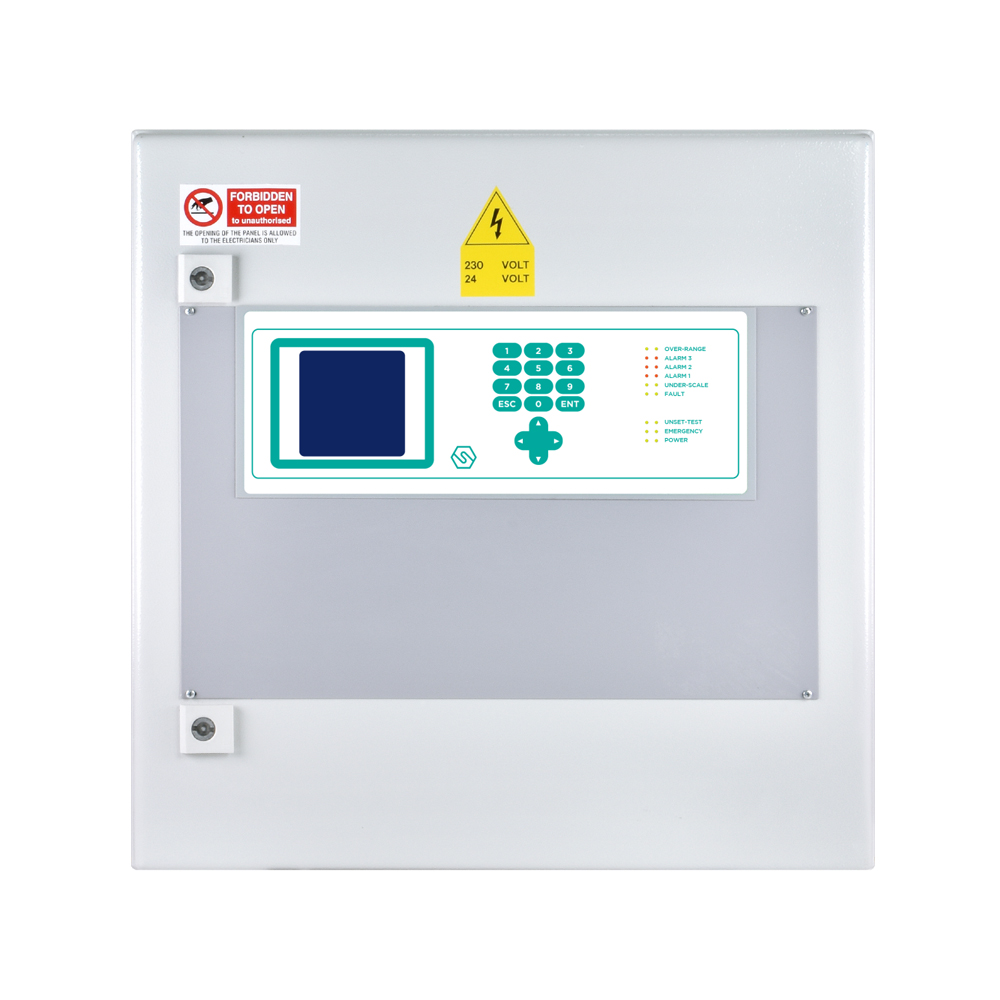

DatenblattThe Multiscan++MED control panel has the capability to manage and monitor up to 64 gas detectors and has been purposely designed and certified to meet with the requirements of the marine industry, certified by the Lloyd’s Register in accordance with MED/3.54 Regulation.
Self-testing
The system’s powerful microprocessor allows a wide range of self testing facilities to take place to detect and localise possible failures.
Highly flexible
The system architecture includes 8 preset relays onboard the units and the possibility to have further 128 open collector outputs via remote STG/OUT16-S2 output cards.
Marine, ATEX and Safety Integrity Level (SIL) certified
The Multiscan++MED system has been certified by the Lloyd’s Register in accordance with MED/3.54 Regulation as well as being ATEX and SIL2 certified.
Specification
| Size | 500 x W500 x D220 mm (19.69 x 19.69 x 8.66ins) |
| Power | 230 Vac box version |
| Operating temperature | 0 – +55°C |
| Humidity | 15 – 85% |
| Inputs | Max. 64 RS485 communication gas detectors loop connected (IDI version) or 4- 20 mA through STG/IN8-S modules |
| Outputs | 8 relays onboard the panel. 128 open collectors on remote modules STG/OUT16-S2 . 8-relay board to connect to STG/OUT16-S2 modules |
| Communication Port | RS485 Modbus communication |
| Event logging | The event log can be visualised from the gas panel or by the software |
| Panel indication | Graphic Liquid Crystal Display (LCD) |
| Approvals | EMC, ATEX |
| Functional Safety | SIL2 |
