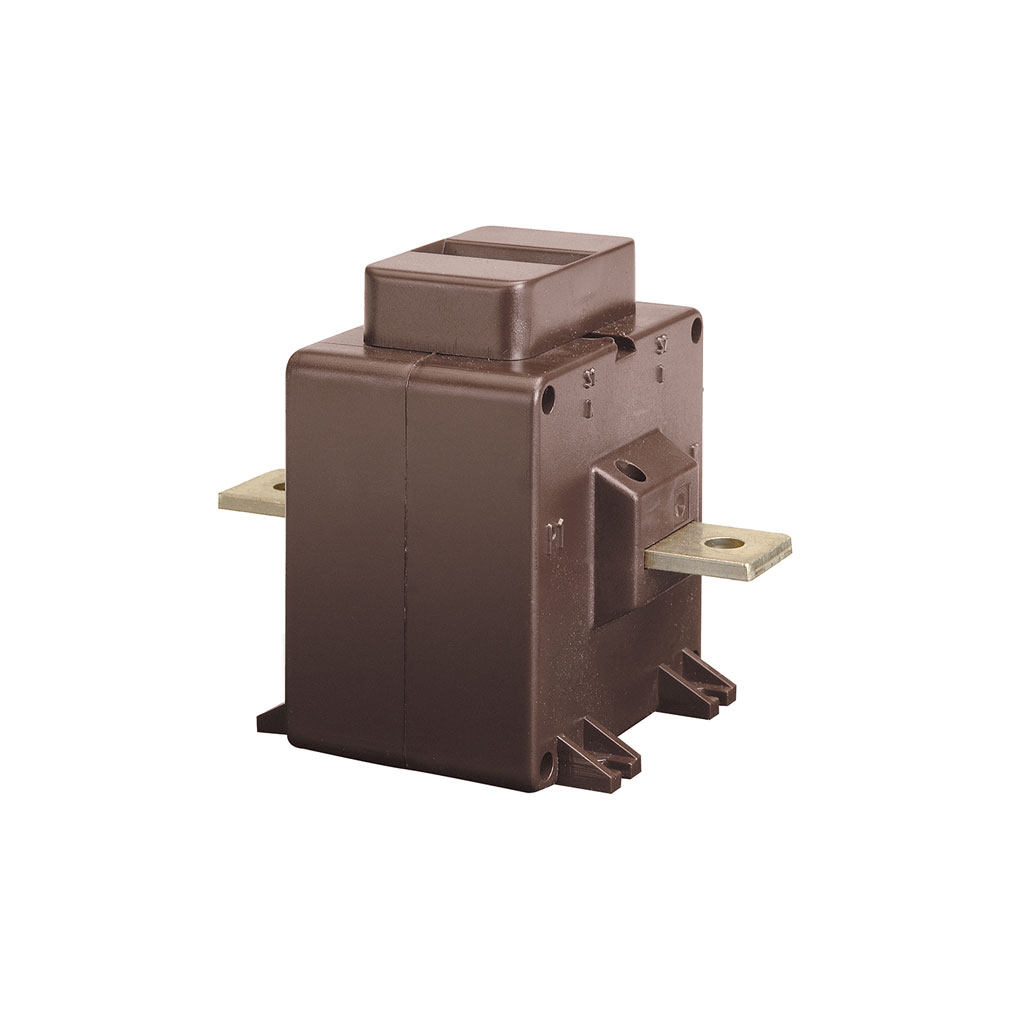

TAQ10P – Single-phase current transformer – protection


  • Current transformer for primary rated currents from 5 A to 300 A
  • Secondary rated current selectable with 5 A or 1 A
  • Suitable for 50 Hz, optionally also for 400 Hz with defined burden
  • Versions with protection class 5P / 5P10 available
  • Burden up to 3 VA at class 5P or 1.5…2 VA at class 5P10
  • Maximum temperature of passing cable or busbar 125 °C
  • Self-powered version without auxiliary supply
  • Optional ATAP015 accessory for protection with open secondary winding
Datasheet
Add to your Quote List

Technical data

Primary rated current Ipr 5…300 A
Rated frequency 50 Hz
Operating frequency 47…63 Hz
Option Rated frequency 400 Hz, burden to be defined
Rated continuous thermal current Icth < 100 % Ipr
Thermal continuous current Ith 90 kA
Dynamic rated current Idyn 2.5 Ith
Secondary rated current Isr 5 / 1 A
Burden 3 VA at class 5P / 1.5…2 VA at class 5P10
Accuracy Class 5P / 5P10
Maximum power loss ≤ 2.5 W
Max. temperature of passing cable / busbar 125 °C
Note on secondary winding With open secondary winding, an operating time of 1 minute is guaranteed.
Accessory ATAP015 (NT710) for automatic short-circuiting of the secondary winding when the limit value is exceeded
Auxiliary supply Not required, self-powered
