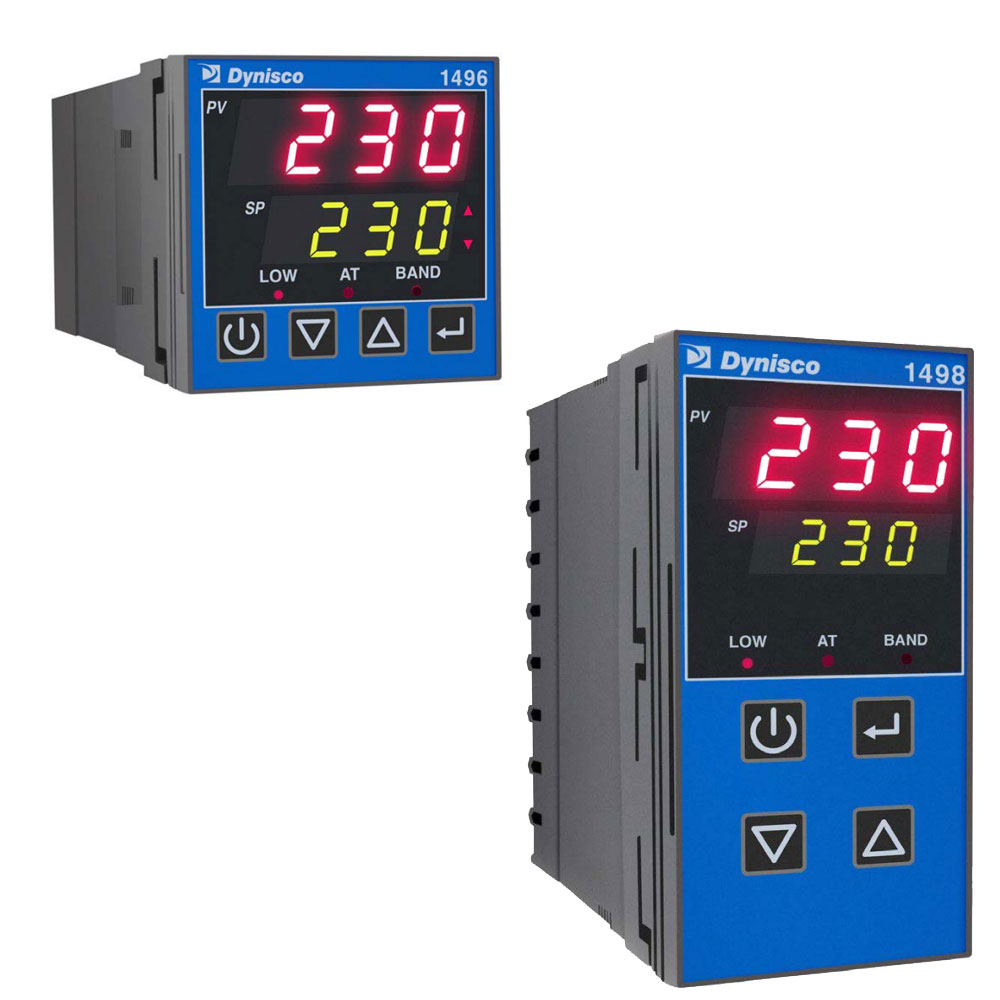

DatasheetDynisco 1496 & 1498 Series Temperature Controllers
The Dynisco 1496 and 1498 Series Temperature Controllers are compact DIN-mounted controllers for precise temperature control of extruders and industrial plastics processing equipment. With two DIN sizes and multiple output configurations, the controllers are suitable for twin and single screw extruders, hot die and adapter zones, additional heat/cool barrel zones and other temperature control applications.
The units can be used either as PID controllers or as indicators. Depending on the application, heat-only control, heat/cool control or indicator/controller operation can be selected. The PID control function supports pre-tune, self-tune and manual-tune, as well as on/off control. This allows the controllers to be quickly matched to specific process requirements and machine configurations.
The 1496 and 1498 Series provide a universal input for various thermocouples and 3-wire RTD sensors. Up to three output configurations are available for flexible implementation of control and alarm functions. Process and loop alarms improve process control security, while Modbus RS485 communication enables integration into higher-level control and monitoring systems.
| Type | DIN-mounted temperature controller |
|---|---|
| Series | Dynisco 1496 & 1498 Series Temperature Controllers |
| Models | 1496 and 1498 |
| Model 1496 format | 1/16 DIN |
| Model 1498 format | 1/8 DIN |
| Application | Temperature control of extruders, hot dies, adapter zones and industrial plastics processes |
| Device modes | PID controller or indicator |
| Control operations | Heat-only or heat/cool |
| Control types | Full PID with pre-tune, self-tune, manual-tune, or on/off control |
| Thermocouple input types | J, K, C, R, S, T, B, L, N and PtRh20% vs. PtRh40% |
| RTD input | PT100, 3-wire, 50 Ω per lead maximum, balanced |
| Accuracy | ±0.1 % of input range ±1 LSD; T/C CJC better than 1 °C |
| Control SSR driver outputs | Drive capability >10 VDC in 500 Ω minimum |
| Output configuration | Up to 3 possible, for control and alarm |
| Alarm types | 3 available: process high, process low, SP deviation, band, logical OR / AND |
| Control and alarm relays | SPDT contacts, 2 A resistive at 240 VAC, >500,000 operations |
| Communications | 2-wire RS485, 1200 to 19200 Baud, Modbus |
| DC linear | 0…20 mA, 4…20 mA, 0…50 mV, 10…50 mV, 0…5 V, 1…5 V, 0…10 V, 2…10 V |
| Triac outputs | 0.01…1 A AC, 20 to 280 Vrms, 47 to 63 Hz |
| Sampling | 4 per second, approximately 14-bit resolution |
| Impedance | >10 MΩ for thermocouple and mV ranges; 47 kΩ for V ranges and 50 Ω for mA ranges |
| Sensor break detection | <2 seconds, except zero-based DC ranges |
| Sensor break behavior | Control outputs turn off; high alarms activate for T/C and mV ranges; low alarms activate for RTD, mA or V ranges |
| AC power supply | 100…240 V, 50/60 Hz, 7.5 VA |
| AC/DC power supply | 20…48 VAC, 7.5 VA; 22…65 VDC, 5 W |
| Auto or manual operation | Selectable from panel with bumpless transfer |
| Control enable | Control ON/OFF selectable from keypad |
| Human interface | 4-button operation |
| LED display | 4-digit 10 mm red upper and 8 mm green lower display, plus 5 indicators |
| Scaling | -1999 to 9999, with adjustable decimal point |
| Front panel protection | IEC IP66; behind-panel protection IP20 |
| Operating temperature | 32…130 °F / 0…55 °C |
| Storage temperature | -4…176 °F / -20…80 °C |
| Relative humidity | 20…95 % RH, non-condensing |
| CE | Directive 2004/108/EC |
| ISO | ISO 9001:2008 production environment |
| UL / ULc | Underwriters Laboratory, USA and Canada |
| Key features | Easy configuration, universal input, controller or indicator mode, process and loop alarms, Modbus RS485, ramping setpoint |
