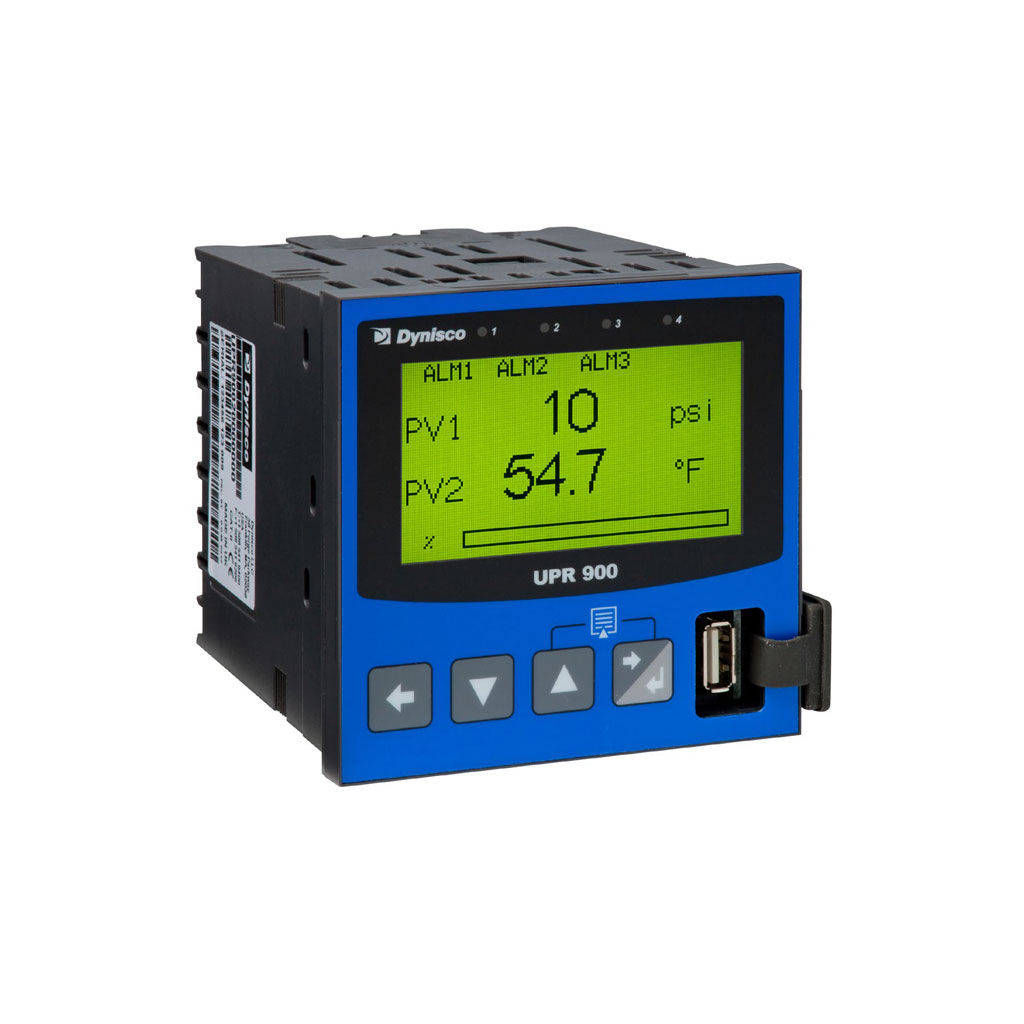

DatasheetDynisco UPR900 Process Indicator
The Dynisco UPR900 is a compact 1/4 DIN process indicator for displaying pressure and/or temperature values. It is especially suitable for plastics processing applications where melt pressure, melt temperature or differential pressure must be displayed clearly on a local panel instrument.
The UPR900 features a 160 × 80 graphical LCD display with backlight. The display supports graphical trend views of process values, alarms and events. On alarm, the LED backlight can change colour from green to red, making critical process conditions immediately visible. A setup wizard supports easy commissioning and configuration.
The process indicator can accept input signals from strain gauge sensors, thermocouples and linear voltage or current signals. An optional secondary input allows differential pressure display or a combination of pressure and temperature measurement in one instrument. Process values can be retransmitted to other devices via analog output. Communication is available through an isolated RS-485 interface with Modbus RTU; Modbus RS-485 and Modbus TCP Ethernet are also supported.
| Type | Digital panel-mounted process indicator |
|---|---|
| Series | Dynisco UPR900 Process Indicator |
| Model | UPR900 |
| Format | 1/4 DIN |
| Application | Display of pressure, temperature and optionally differential pressure in plastics processing equipment |
| Instrument type | Digital panel-mounted PID process indicator |
| Display | 160 × 80 monochromatic graphical LCD with backlight |
| Display function | Graphical/text display, trend view of process, alarms and events |
| Alarm display | LED backlight with colour change from green to red on alarm |
| Thermocouple accuracy | ±0.1 % of full range, ±1 LSD; ±1 °C for internal CJC if enabled |
| DC linear accuracy | ±0.1 % of full range, ±1 LSD |
| Sampling time | 50 ms, typical |
| Inputs | Strain gauge, thermocouple or linear input (VDC, mA) |
| Strain gauge input | 350…5000 Ω, 1.4…4 mV/V, excitation 10 V ±7 % |
| Linear input | 0…5 VDC and 0…10 VDC; 0…20 mA and 4…20 mA |
| Input signal | -25…125 % full scale; approximately -10 mV to +50 mV |
| Input impedance | <10 Ω for linear current input; >165 kΩ for linear voltage input |
| Shunt calibration | With or without resistor, 40…100 % |
| Digital inputs | 4 programmable voltage-free contact closures |
| Alarm outputs | SPST, 2 A max. at 240 VAC resistive load; dual relays have shared common |
| Alarm number | 3 standard |
| Alarm update time | 100 ms, typical |
| Retransmission outputs | 0…5 VDC, 0…10 VDC, 0…20 mA and 4…20 mA |
| Output resolution | 15 3/4 bit |
| Output accuracy | ±0.1 % of output span; mA at <500 Ω, V at >500 Ω |
| Communication interface | Isolated RS-485 |
| Protocol | Modbus RTU |
| Ethernet communication | Modbus TCP Ethernet supported |
| USB interface | For access to configuration and log files |
| Data logging | Option records process values, setpoints and alarms to CSV files |
| BlueControl software | Optional configuration and commissioning software |
| Optional secondary input | For differential pressure measurement or cost-effective combination of several measured variables in one instrument |
| Configuration | Configurable locally or remotely by optional Modbus RTU |
| Key features | Graphical LCD, trend view, alarms and events, USB, data logging, RS-485, Modbus RTU, Modbus TCP Ethernet, optional differential pressure display |
