DatasheetDynisco Cable Assemblies and Connectors

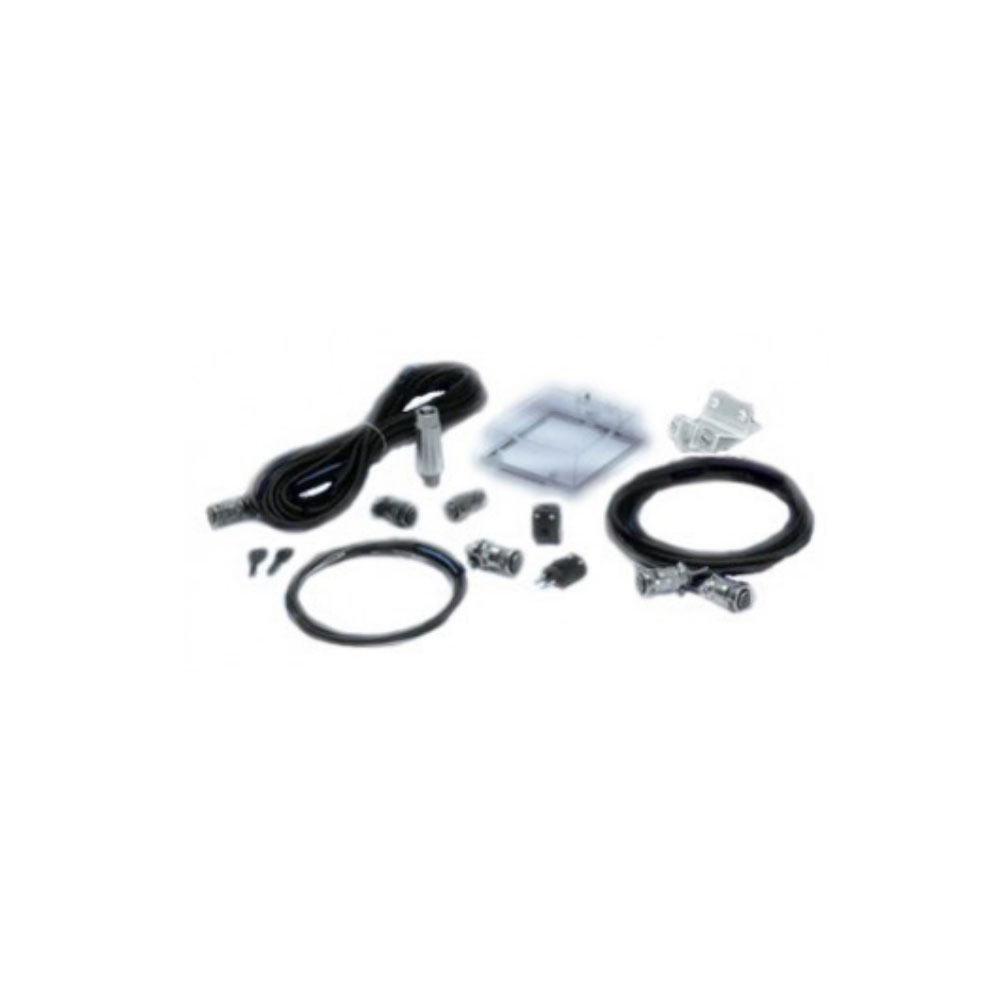

Dynisco cable assemblies and connectors provide the electrical hookup from the transducer to display instrumentation, controllers or other evaluation equipment. The assemblies consist of a transducer mating connector and a length of shielded 6-conductor cable with stripped leads.
The cables and connectors are designed for a wide range of Dynisco pressure transducers and measurement systems. Depending on the sensor series, different mating connectors, cable lengths, bulk cable, adapters, thermocouple connectors, gauge plugs, gaskets and additional mounting accessories are available.
They can be used to extend existing measurement chains, replace damaged cables or set up new installations matched to the respective Dynisco pressure transducer.
| Cable Assemblies with Bendix PT06A-10-6S Connector | ||
|---|---|---|
| Description | Cable Length | Part Number |
| Bendix PT06A-10-6S (SR) Connector | 10 ft | 929008 |
| Bendix PT06A-10-6S (SR) Connector | 20 ft | 929020 |
| Bendix PT06A-10-6S (SR) Connector | 40 ft | 929022 |
| Bendix PT06A-10-6S (SR) Connector | 60 ft | 929024 |
| Bendix PT06A-10-6S (SR) Connector | 80 ft | 929025 |
| Bendix PT06A-10-6S (SR) Connector | 100 ft | 929026 |
These cable assemblies and mating connectors are used with Dynisco transducer models including: PT460E, PT460XL, PT4624, PT100 Series, PT462E, PT462XL, PT4625, PT465XL, PT463E, TPT463XL, PT466, PT444DH, PT467E, PT467XL, TPT4634, FT446H, TPT4635, FT446HM, TPT4636, PT4674, PT4675, PT4676, EPR Series, MRT Series, DYN-X, DYN-X-TC, IPX/PX18X Series and 6-pin connector models except FM versions.
| Transducer Mating Connector Only | |
|---|---|
| Description | Part Number |
| Bendix PT06A-10-6S (SR) 6 Socket, Cable Mount | 711600 |
The following cable assemblies and mating connectors are used with Dynisco transducer models PT420A, PT410, PT412, PT422A, PT450, TPT432A, PT435A and DLX Series.
| Cable Assemblies with Bendix PC06A-12-8S Connector | ||
|---|---|---|
| Description | Cable Length | Part Number |
| Bendix PC06A-12-8S (SR) Connector | 10 ft | 929009 |
| Bendix PC06A-12-8S (SR) Connector | 20 ft | 929010 |
| Bendix PC06A-12-8S (SR) Connector | 40 ft | 929012 |
| Bendix PC06A-12-8S (SR) Connector | 60 ft | 929014 |
| Bendix PC06A-12-8S (SR) Connector | 80 ft | 929015 |
| Bendix PC06A-12-8S (SR) Connector | 100 ft | 929016 |
| Transducer Mating Connector Only | |
|---|---|
| Description | Part Number |
| Bendix PC06A-12-8S (SR) 8 Socket, Cable Mount | 710700 |
| Bulk Cable | |
|---|---|
| Description | Part Number |
| 6 Conductor, 22 AWG, braided RFI shielded cable, thermoplastic rubber jacket | 800024 |
| Cable Assemblies for Use with PT449 Transducer | ||
|---|---|---|
| Description | Cable Length | Part Number |
| Threaded DIN Connector 712000 | 20 ft | 801835 |
| Threaded DIN Connector 712000 and Stripped Wires | 20 ft | 802020 |
| Cable Adapter to Convert 712000 to a Bendix 6 pin Connector | 1 ft | 801919 |
Note: Cable assemblies are also used with DPS732 pressure controller.
| Additional Cables and Connectors | |
|---|---|
| Description | Part Number |
| 6-Socket Twist Lock Connector Bendix PT02W-10-6S (SR) or equivalent weather-tight connector mates with PT1H-10-6P (SR) hermetically sealed connector, reference option B314 | 711610 |
| Cable Mounted 8-Pin Connector | 710070 |
| Cable Mounted 6-Pin Connector | 711170 |
| Threaded DIN Connector, DIN 681/090026097, mates with PT449, DPS732 | 712000 |
| Panel Mounted 8-Pin Connector | 710180 |
| Panel Mounted 6-Pin Connector | 711160 |
| Type J Thermocouple, Female Connector Only | 753000 |
| Type J Thermocouple, Male Connector Only | 753001 |
| Type K Thermocouple, Female Connector Only | 753007 |
| Type K Thermocouple, Male Connector Only | 753008 |
| Teflon-Coated Cable, 6-Conductor for High Temperature Applications | 800005 |
| 1 ft Cable Assembly, Adapts PT462 to PT422 Connector and Wiring | 800860 |
| 1 ft Cable Assembly, Adapts PT422 to PT462 Connector and Wiring | 800861 |
| 20 ft Cable Assembly with 6-Pin Bendix Connector for MTX Models with Type J Thermocouple or B Output Options | 929125 |
| 20 ft Weather-Tight, 6-Conductor Cable Assembly, 711610 Connector on One End, Stripped Wires on Other End | 801850 |
| Armored, 6-Conductor, 20 ft Cable Assembly with PT460 Mating Connector | 912221 |
| Armored, 6-Conductor, 20 ft Cable Assembly with PT420 Mating Connector | 912228 |
| Gaskets and O-Rings | |
|---|---|
| Description | Part Number |
| Flared Copper Spacer for Melt Pressure Transducer Pressure Fitting | 633511 |
| Flared Aluminum Spacer for Melt Pressure | 633523 |
| Transducer Pressure Fitting X243 Silver O-Ring | 652116 |
| Aluminum Gasket for PT241 and PT244 | 450607 |
| Aluminum Gasket for PT290 Series, IPX185/195, PX185/195 | 494602 |
| Flexitallic Gasket for Superior Transducer Seal | 620021 |
| Stainless Steel Gasket for IPX185/195, PX185/195 Stainless Steel Gasket for IPX185/195, PX185/195 | 634004 |
| Gauge Plugs | |
|---|---|
| Description | Part Number |
| 12″ 1/2-20 UNF Gauge Plug | 200908 |
| 6″ 1/2-20 UNF Gauge Plug | 200984 |
| 1 1/2″ Gauge Plug for use with PT435, PT467, PT465 | 435901 |
| 6″ Hole Plug | 201908 |
| M18 Hole Plug | 200960 |
| PT449 Plug Assembly | 449346 |
| Mounting Brackets and Other Accessories | |
|---|---|
| Description | Part Number |
| Mounting Bracket Kit, IPX Series | 195901 |
| 29/64 Pilot Drill, included in Machining Tool Kit | 200924 |
| Mounting Bracket, Flexible Stem Transducers | 200941 |
| Mounting Bracket, PG5XX Series | 200957 |
| PG5XX Water-Tight Strain Relief | 496300 |
| Aluminum Protective Cap, 1/2-20 UNF, 2A Transducer Thread | 598000 |
| Mounting Collar for 1290 and 1400 Series | 820769 |
| Additional Adapters for PCS1000 | |
|---|---|
| Description | Part Number |
| 12″ 1/2-20 UNF Gauge Plug | 200908 |
| M18 – 1.5 Internal Thread | 200965 |
| 1/2-20 UNF – 2B Internal Thread | 200966 |
| 1/8-27 NPT External Thread | 200967 |
| 3/4-16 UNF – 2B Internal Thread | 200968 |
Note: Adapters thread directly into the PCS1000 manifold. The manifold has a 1/2-20 UNF-2B internal thread.
| Replacement Removable Thermocouples for All Transducer Gauges | |
|---|---|
| Description | Part Number |
| Type J Thermocouple, 6″ Stem Version | 234908 |
| Type J Thermocouple, 12 1/2″ Stem Version | 234918 + 232620 |
| Dual Type J Thermocouple, 6″ Stem Version | 234928 + 232620 |
| Dual Type J Thermocouple, 12 1/2″ Stem Version | 234932 + 232620 |
