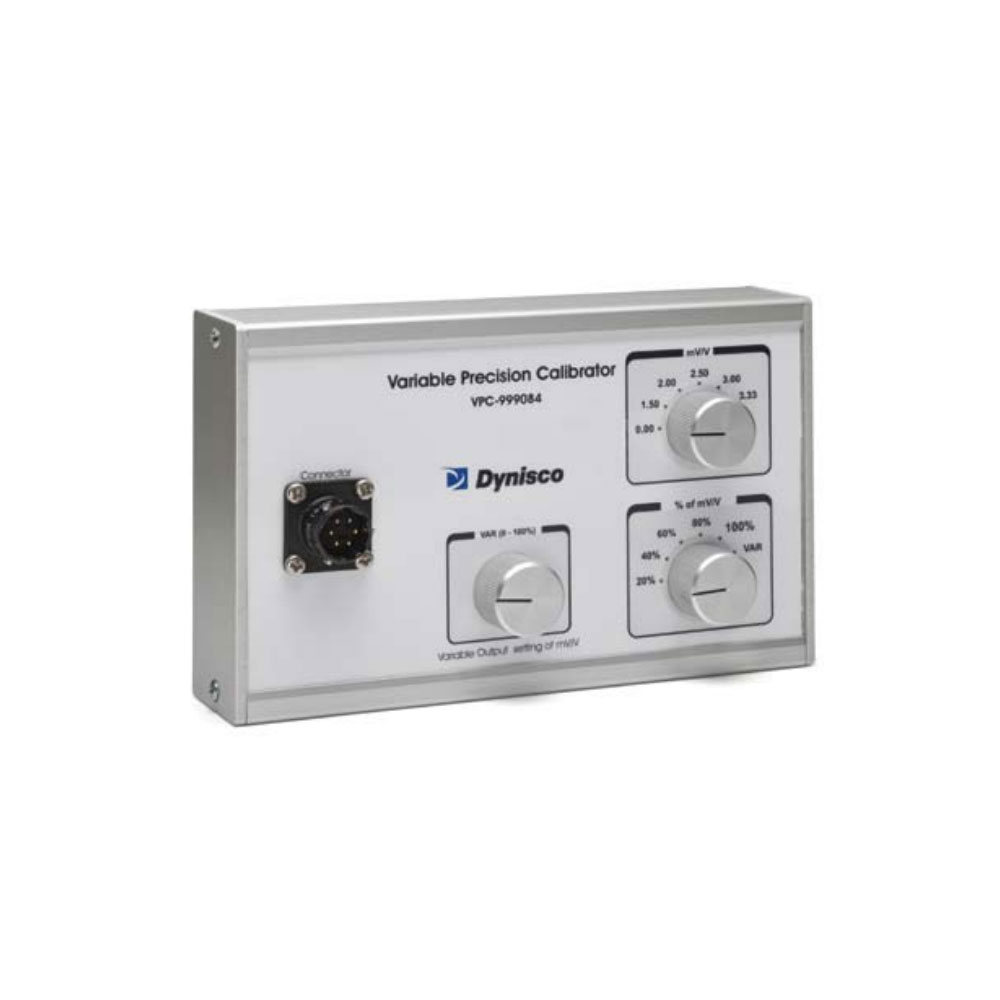

DatasheetDynisco VPC-999084 Transducer Simulator
The Dynisco VPC-999084 is a transducer simulator for fast troubleshooting of strain gauge based measurement loops. The instrument simplifies the checking of Dynisco strain gauge pressure transducers, signal conditioners, indicators and controllers by simulating defined transducer output signals.
The simulator can be connected into the measurement loop to determine whether a fault is caused by the pressure transducer itself, the wiring, the signal conditioner or the display instrument. This makes the VPC-999084 especially useful for service, maintenance, commissioning and quick diagnostics directly at the machine.
The output signal is selectable in 20 % steps and can also be adjusted using a variable trim pot. Different transducer signals can be simulated through the selectable output sensitivity. The standard 6-pin Bendix connector allows easy connection to typical Dynisco measurement chains.
| Type | Transducer simulator / strain gauge simulator |
|---|---|
| Series | Dynisco VPC-999084 |
| Model | VPC-999084 |
| Application | Troubleshooting and functional testing of pressure transducers, strain gauge signal conditioners, indicators and controllers |
| Function | Simulation of defined pressure transducer output signals |
| Output sensitivity | Selectable transducer output sensitivity |
| Linear output | 5-step, 0…100 % |
| Diagnostic function | Identifies faulty components in a measurement loop |
| Transducer simulation | Simulates a variety of transducers and can substitute for many pressure transducers during diagnostics |
| Electrical connector | Standard 6-pin Bendix connector |
| Key features | Checks indicator linearity, selectable output ranges, diagnostic tool for service and commissioning |
| Technical Data / Performance Characteristics | |
|---|---|
| Accuracy | ±0.25 % each full scale range |
| Bridge resistance | Input: 350 Ω ±2.0 %; ±5 % in variable position |
| Full scale output | Rotary switch selected full scale ranges: 0.0 mV/V ±0.25 %; 1.5 mV/V ±0.25 %; 2.0 mV/V ±0.25 %; 2.5 mV/V ±0.25 %; 3.0 mV/V ±0.25 %; 3.33 mV/V ±0.25 %; 0 to 3.0 mV/V ±5.0 % via variable trim pot |
| Configuration | 350 Ω Wheatstone bridge strain gauge |
| Zero balance | ±0.25 % full scale |
| Excitation | 15 VDC maximum |
| Electrical connector | Bendix PT02A-10-6P; substitutes for PT46X, MDA46X and DYN-X Series; excitation + pin C; signal + pin A; excitation − pin D; signal − pin B |
| Weight | 1 lb |
| Note | Each output range has calibrated steps of 20 %, 40 %, 60 %, 80 % and 100 % of the selected mV/V range. |
| Variable position | Provides continuous adjustment from 0 % to 100 % of the 3 mV/V ±5.0 % range. |
