The HySense® RS 3xx is a high-precision frequency sensor that converts the motion of diamagnetic materials
into pulses using the GMR effect. The use of this effect makes precise frequency measurements possible even
with very small gears and low rotational speeds.

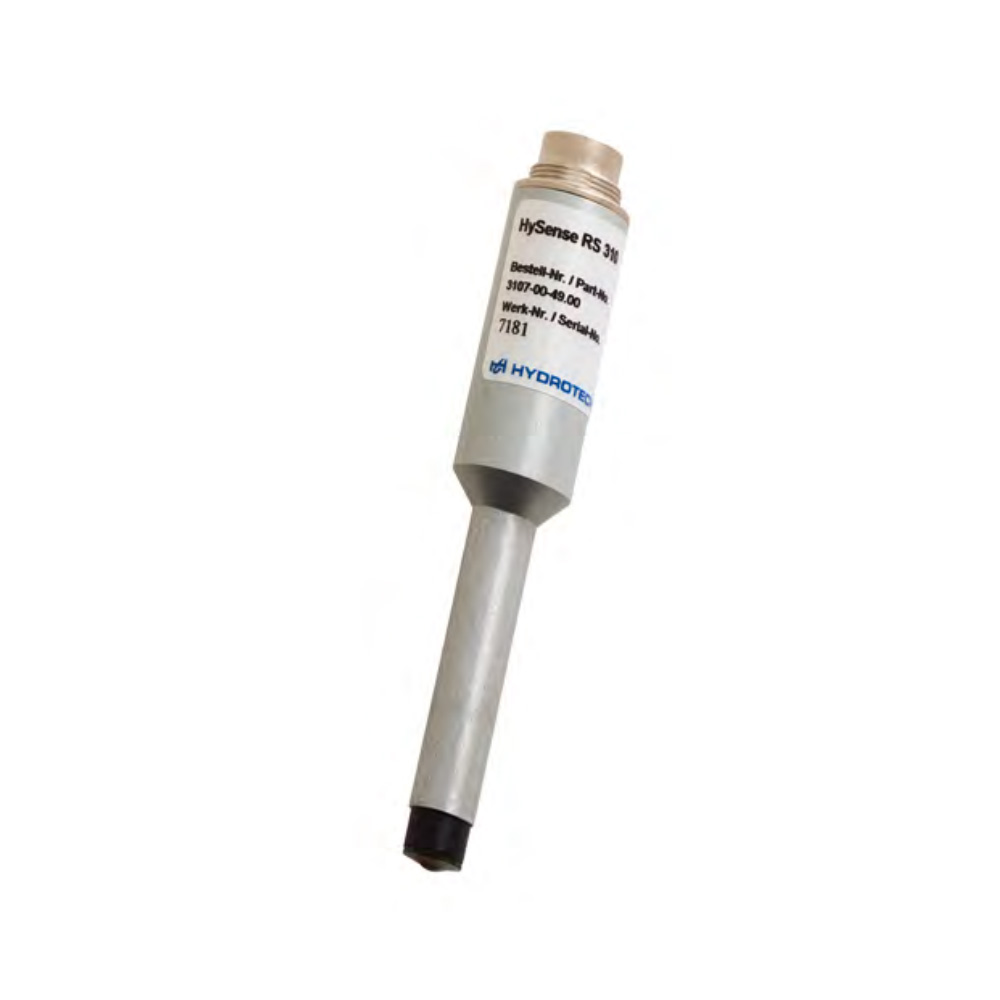

HySense® RS300 / RS310 high-precision frequency sensor
- Sensor principle GMR effect
- Frequency range 0.5 … 1800 Hz
- Measuring accuracy ±1 pulse
- Electrical connector M16 x 0.75, 5-pin / M16 x 0.75, 6-pin
- Body material Aluminum
- Ambient temperature -20 … 85 °C
- IP degree of protection IP65 (DIN EN 60529)
- Weight 60 g
