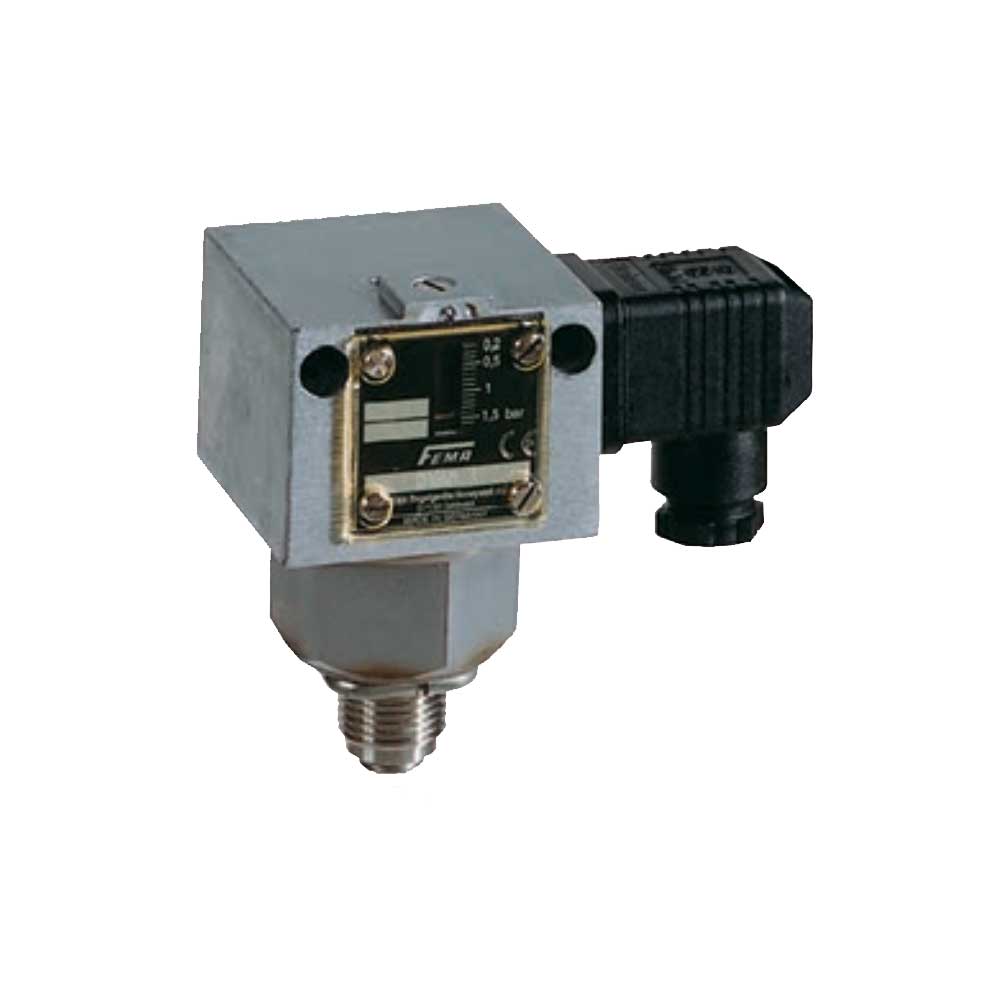

DCM/DNM Pressure switches and pressure monitors for overpressure


This universal pressure switch can be used in general mechanical engineering and the printing machine industry, as well as in pneumatics and hydraulics.
SIL 2 according IEC 61508-2

Datasheet
User Manual
Add to your Quote List
Kind of pressure overpressure, relative
Pressure connection internal thread G1/4, external thread G1/2
Electrical connection Plug DIN EN 175301
IP class IP54
Housing material rugged housing of seawater resistant aluminium die casting GD Al Si 12.
Media temp. -25 … 70 oC
Media temp. limit temperatures up to 85 oC are allowable for short periods. Higher temperatures are possible, provided that the limit is safeguarded by suitable measures (e.g. water tube trap, see Accessories for Pressure Switches / Transmitters)
Ambient temperature -25 … 70 oC
Ambient temp. limit at temperatures below 0 oC, ensure that no water condensation can arise in the sensor and in the switching device
Switch function/capacity SPDT Microswitch 250 Vac; capacity 5 A inductive, 8 A resistive
Optional functions add the type numbers below to the listed type numbers for extra functionality as described

• -301: terminal connection housing, IP65
• -307: two microswitches, switching in parallel or in succession, fixed switching interval, terminal connection case, IP65
• -217: two microswitches, 1 plug, switching in succession, adjustable switching interval
• -213: gold-plated contacts, switching capacity: max. 24 Vdc, 100 mA, min. 5 Vdc, 2 mA. And others not available with adjustable switching difference.
• -351: protection class IP65 and switching housing with surface protection (chemical version)
• -513: gold-plated contacts, switching differential permanent, IP65, switching capacity: max. 24 Vdc, 100 mA, min. 5 Vdc, 2 mA; suitable isolating switching amplifier necessary, degree of protection Ex-i
Certificates SIL 2 according IEC 61508-2
Medium type liquid or gas
Scale calibration falling pressure



Fixed pressure hysteresis
Pressure adjustment range Adj. switching diff. Switching diff. Max. pressure Sensing element material Type
bar bar bar bar
0.04 … 0.25 — 0.03 6 Copper + Brass DCM025
0.1 … 0.6 — 0.04 6 Copper + Brass DCM06
0.2 … 1.6 — 0.04 6 Copper + Brass DCM1
0.2 … 2.5 — 0.1 16 Stainless Steel DCM3
0.5 … 6 — 0.15 16 Stainless Steel DCM6
1 … 10 — 0.3 25 Stainless Steel DCM10
3 … 16 — 0.5 25 Stainless Steel DCM16
4 … 25 — 1 60 Stainless Steel DCM25
8 … 40 — 1.3 60 Stainless Steel DCM40
16 … 63 — 2 130 Stainless Steel DCM63
0.04 … 0.25 — 0.03 6 Stainless Steel DNM025
Adjustable pressure hysteresis
Pressure adjustment range Adj. switching diff. Switching diff. Max. pressure Sensing element material Type
bar bar bar bar
0.04 … 0.25 0.03 … 0.4 — 6 Copper + Brass DCMV025
0.1 … 0.6 0.04 … 0.5 — 6 Copper + Brass DCMV06
0.2 … 1.6 0.07 … 0.55 — 6 Copper + Brass DCMV1
0.2 … 2.5 0.15 … 1.5 — 16 Stainless Steel DCMV3
0.5 … 6 0.25 … 2 — 16 Stainless Steel DCMV6
1 … 10 0.5 … 2.8 — 25 Stainless Steel DCMV10
3 … 16 0.7 … 3.5 — 25 Stainless Steel DCMV16
4 … 25 1.3 … 6 — 60 Stainless Steel DCMV25
8 … 40 2.2 … 6.6 — 60 Stainless Steel DCMV40
16 … 63 3 … 10 — 130 Stainless Steel DCMV63
