DatasheetApplications
- For flowing, heterogeneous media
- Suitable for high pressures up to 1,600 bar
Description
Process connection
Stainless steel 1.4571

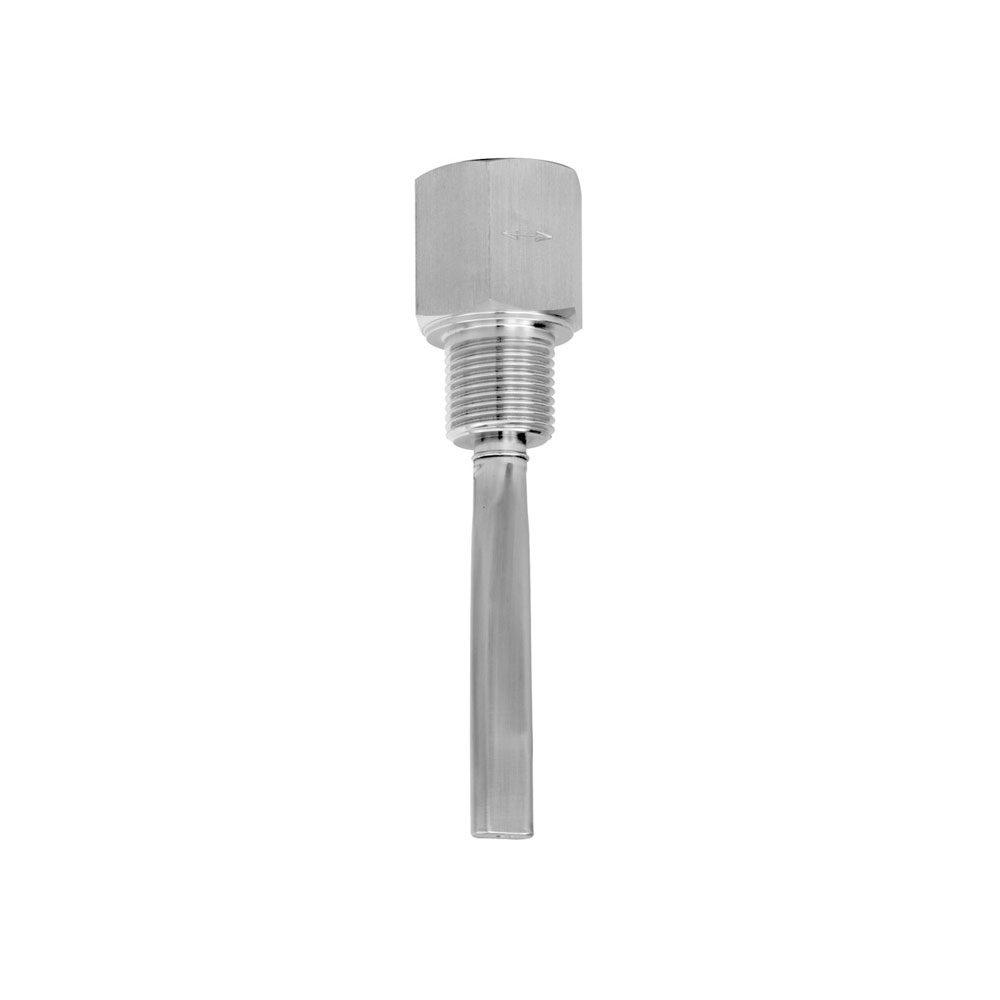

Model 970.10: G ½ B male thread

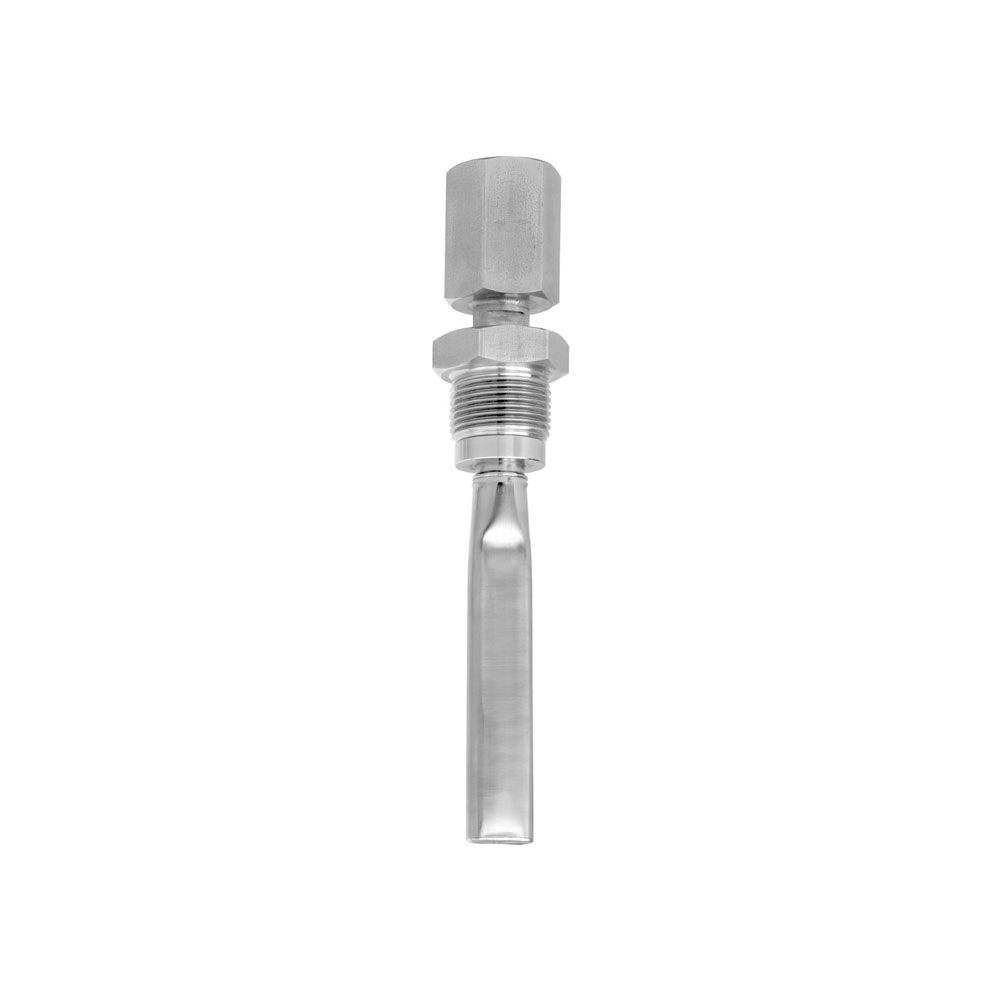

Model 970.11: G ½ B male running nut

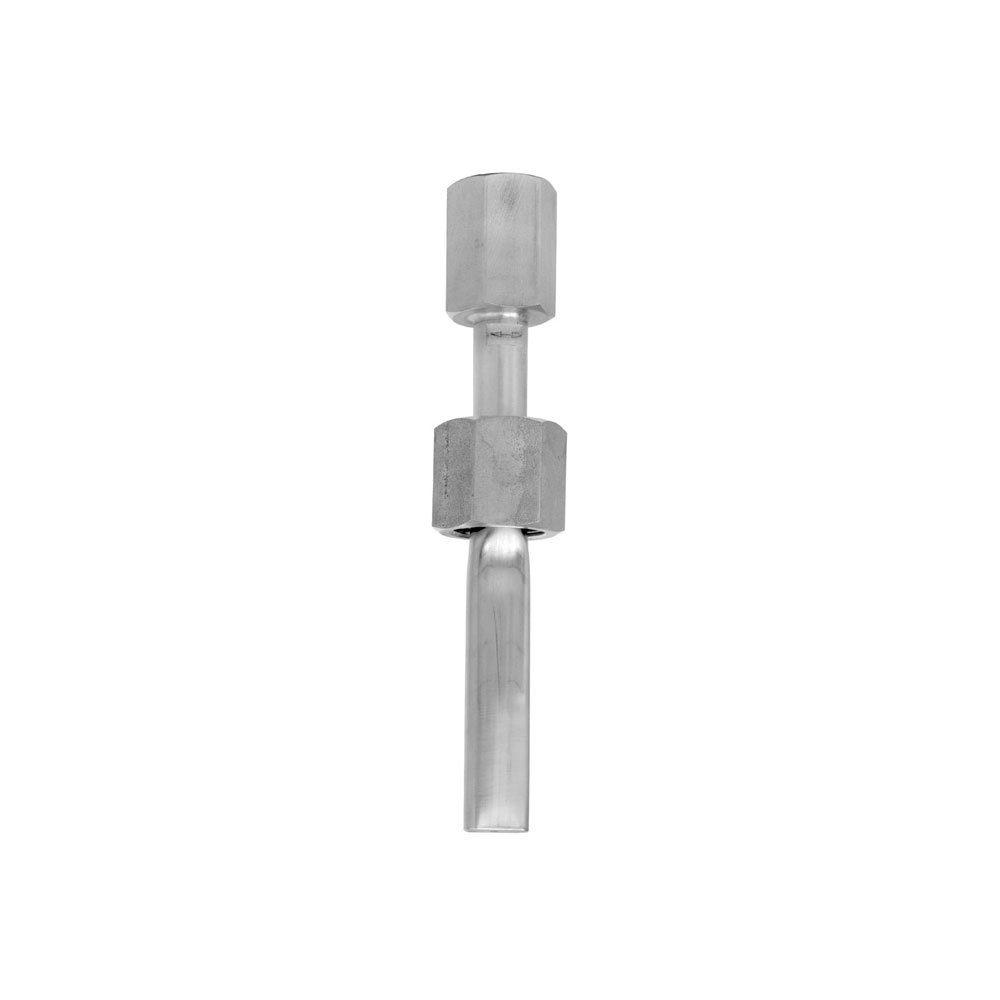

Model 970.12: G ½ female union nut
Pressure rating
PN 600
Pressure ranges
0 … 10 to 0 … 600 bar
Capsule sensor
Stainless steel 1.4571, welded with body
Dimension: 75 x 13 x 6 mm
Instrument connection
Stainless steel 1.4571, G ½ female per EN 837-1
Options
Process connection
- Model 970.10: G ¾ B, M20 x 1.5 male
- Model 970.11: G ¾ B, M20 x 1.5 male
- Model 970.12: G ¾, G 1 female
Capsule sensor
- Dimension: 100 x 18 x 7 mm
(requires minimum ¾ in. process connection)
Instrument connection
- Capillary (welded with body) and gauge adapter G ½ female to fit surface mounting bracket complete of stainless steel
- Cooling tower (for directly mounted gauge when fluid temperature > 100 °C)
