The push-rod technology provides a design suitable for applications where a filled system may not be desirable. The EPR4 transmitters provide the industry standard 4 – 20 mA amplified signal designed to work with DCS and PLCs. The EPR4 comes equipped with adjustable zero and span pots. Optional thermocouple or RTD configurations are available to provide melt temperature. The EPR4 can feature either the standard push rod configuration (see mechanical drawing) or a 1/2-20 UNF thread for simple and easy installation in standard transducer mounting holes (M561).

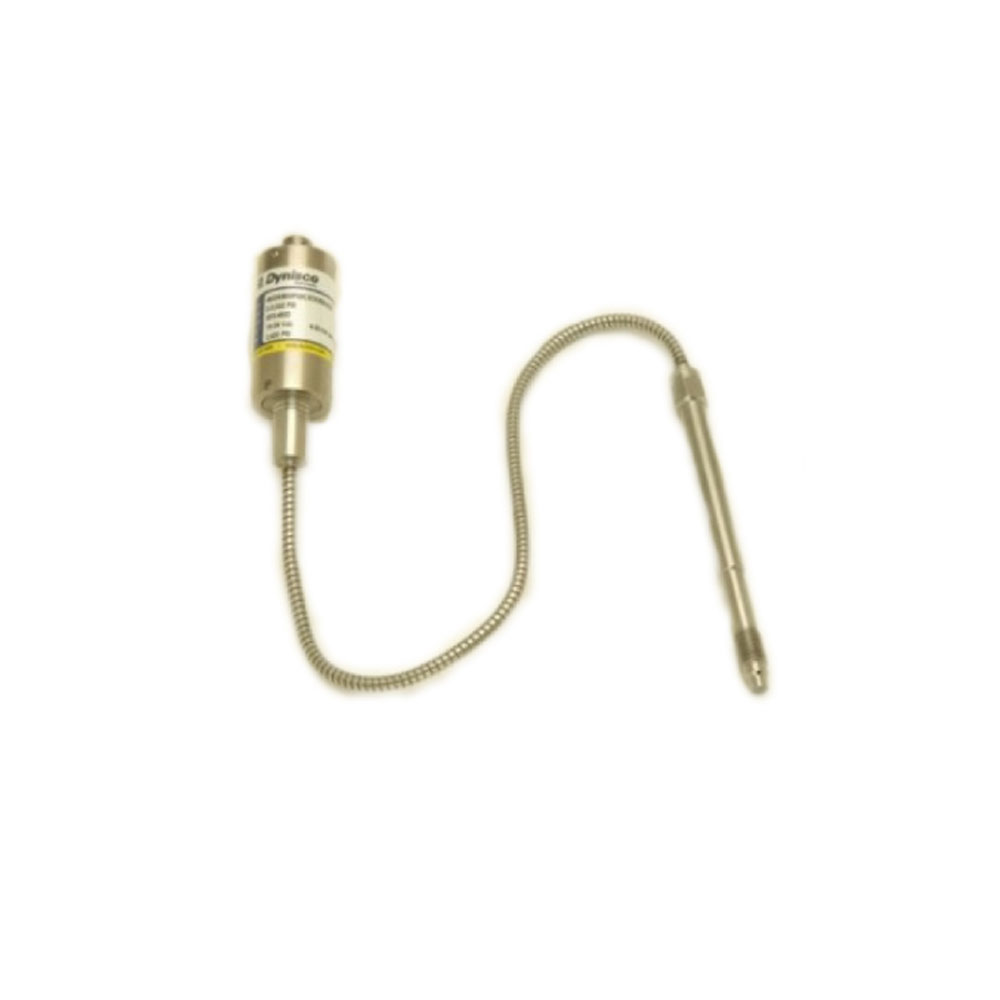

EPR4 Push Rod Sensors
- Adjustable zero and span
- Push-rod technology, non-liquid filled system
- Accuracy better than +/- 0.5%
- DyMax® coated convoluted SST wetted parts
- 4 – 20 mA output
- Internal 80% shunt calibration
 User Manual |
The push-rod technology provides a design suitable for applications where a filled system may not be desirable. The EPR4 transmitters provide the industry standard 4 – 20 mA amplified signal designed to work with DCS and PLCs. The EPR4 comes equipped with adjustable zero and span pots. Optional thermocouple or RTD configurations are available to provide melt temperature. The EPR4 can feature either the standard push rod configuration (see mechanical drawing) or a 1/2-20 UNF thread for simple and easy installation in standard transducer mounting holes (M561).
Technical advice: 03303 / 50 40 66
Technical advice for this product
