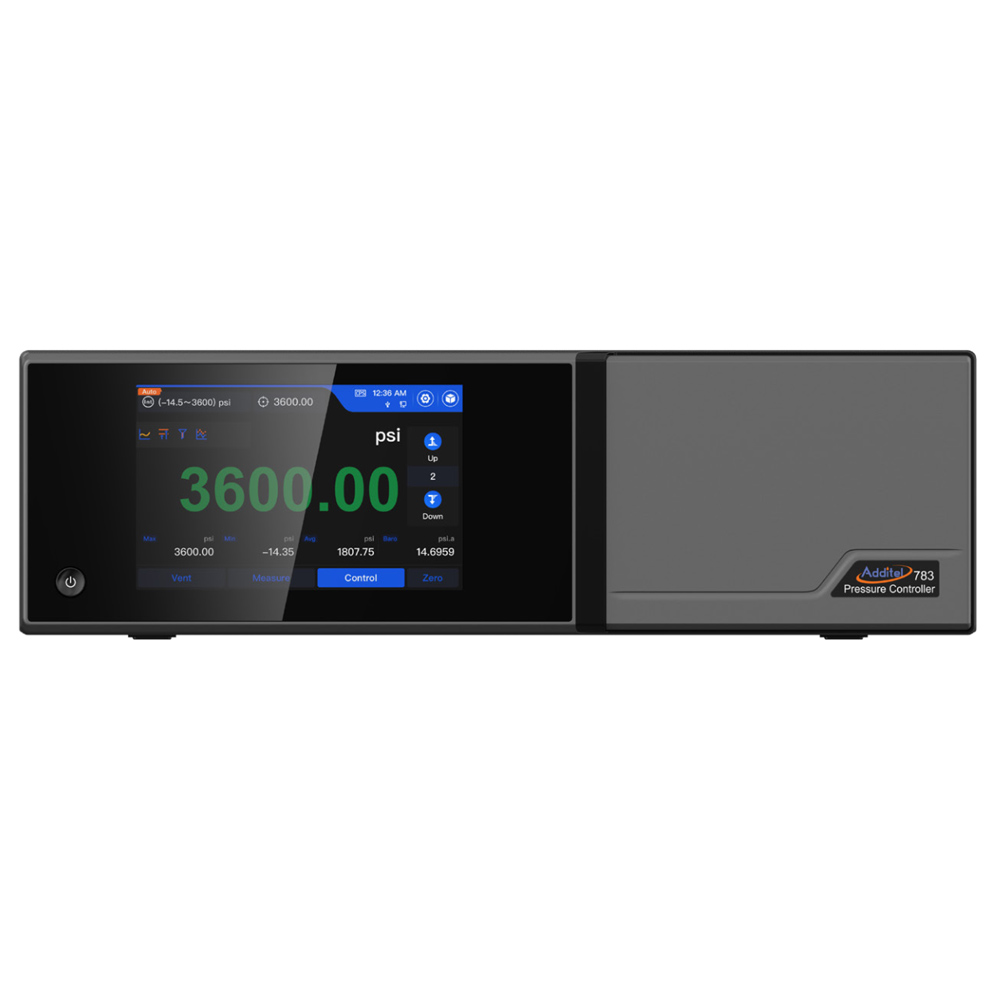

Additel 783 Pressure Controller


  • Pressure ranges from -14.35 psi (-0.99 bar) to 3600 psi (250 bar).
  • Two removable internal pressure modules with multi-range selection.
  • Available accuracies of 0.02% FS, 0.1% FS, and 0.011% RD.
  • Control stability of 0.003% FS.
  • Ultra-fast pressure control.
  • Absolute and gauge pressure measurement.
  • WiFi-enabled communication.
  • Large 7-inch color touchscreen.
  • Optional barometric module.
  • User-friendly, icon-driven interface.
  • I/O alarm function.
Datasheet
Datasheet

.

.

Add to your Quote List
Videos

These modular pressure controllers combine state-of-the-art control and measurement technology,
modular design and user-friendly features. The Additel 783 controller series is optimized for
high-speed pressure generation without compromising accuracy and stability. For users who need
automated production, testing and calibration, Additel has you covered with these controllers.
The ADT783 can be quickly equipped with two control modules and a reference barometric module
to cover a wide pressure range. The Additel 783 series offers three base units to choose from,
ranging from 3500 psi (250 bar) down to low differential pressure.

ADT783-D
The ADT783-D is designed for the calibration of differential and gauge pressure from ±2 inH2O (±5 mbar) up to 36 psi (2.5 bar). Choose between one or two pressure control modules. Each module features dual-range calibration, which extends measurement accuracy within each module. This unit has a control stability of 0.003%FS. In addition to the two control modules, an optional barometric module can be added to enable gauge and absolute pressure measurements.

ADT783-1K
The ADT783-1K is designed for the calibration of gauge pressure from -14.35 psi (-0.99 bar) up to 1000 psi (70 bar). Choose between one or two pressure control modules. Each module features dual-range calibration, which extends measurement accuracy within each module. This unit has a control stability of 0.003%FS. In addition to the two control modules, an optional barometric module can be added to enable gauge and absolute pressure measurements.

ADT783-3.5K
The ADT783-3.5K is designed for the calibration of gauge pressure from -14.35 psi (-0.99 bar) up to 3500 psi (250 bar). Choose between one or two pressure control modules. Each module features dual-range calibration, which extends measurement accuracy within each module. This unit has a control stability of 0.003%FS. In addition to the two control modules, an optional barometric module can be added to enable gauge and absolute pressure measurements.

Application Images of the Additel 783

Flexible modular design

To cover a wide range of pressures and simplify calibration tasks,
the ADT783 can be quickly equipped with two control modules and a reference
barometric module. Each module provides a dual range or dual accuracy.
Such a flexible modular design allows users to configure different modules
according to their cost, pressure range and accuracy requirements.
The quick-connect function greatly simplifies the controller’s calibration work.

adt783 with modules visible

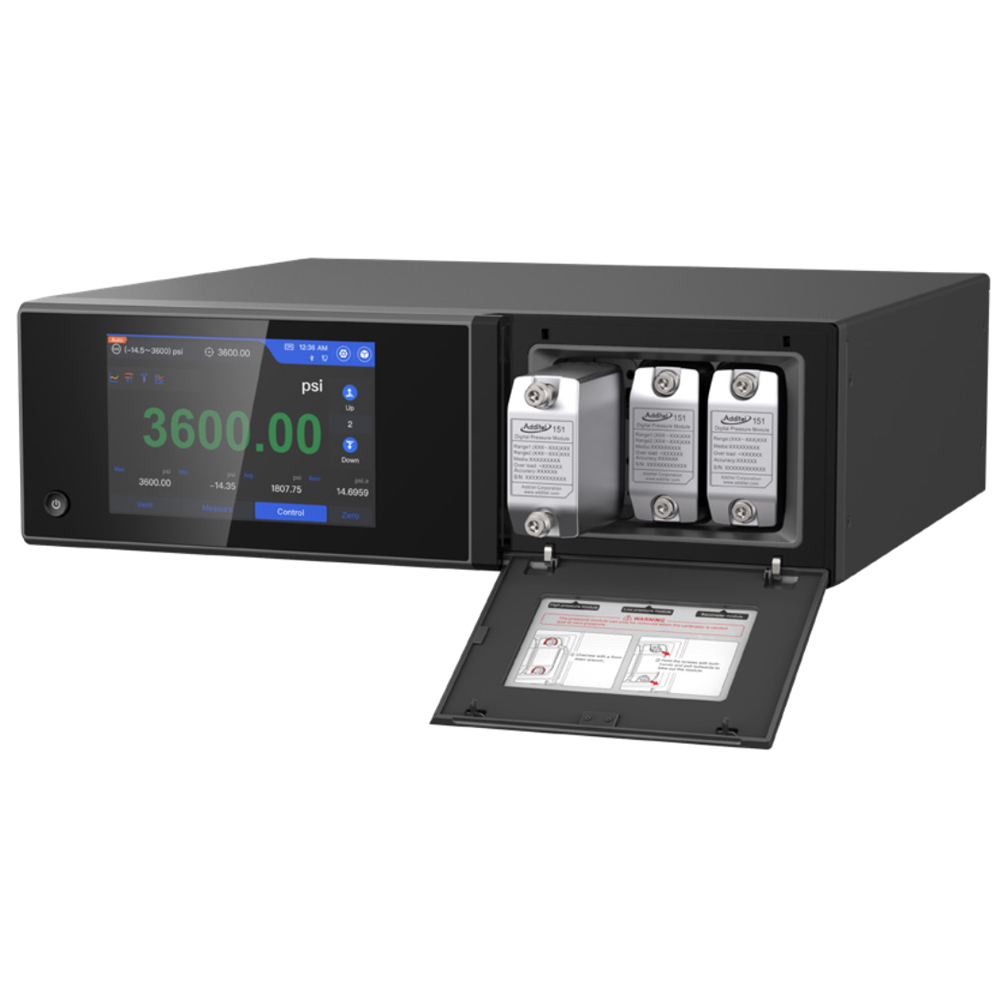

Quick-change pressure modules (30 seconds)

The Additel 151 pressure control modules can be installed or replaced
in 30 seconds or less. Simply open the top edge of the housing. When the
door opens, the controller automatically releases pressure, allowing safe
removal and insertion of the ADT151 modules.

adt783 while pulling a module out

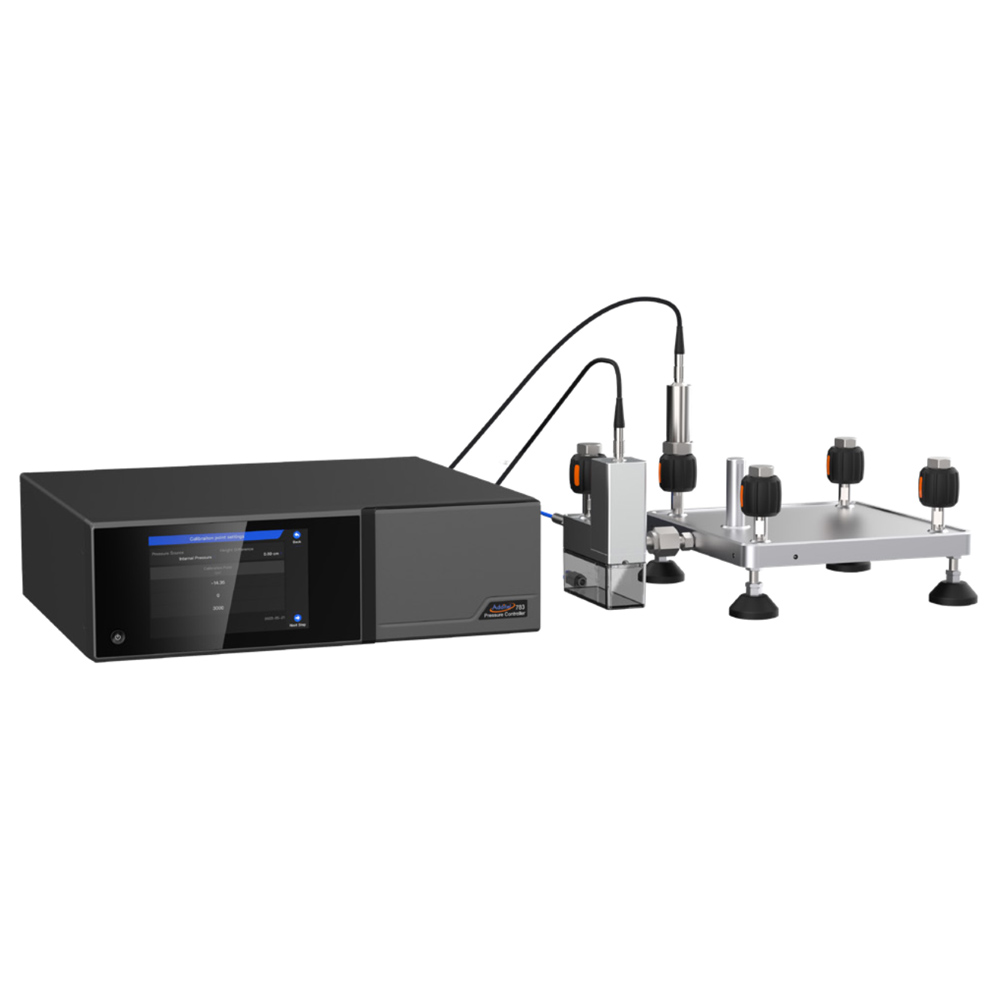

Convenient automatic calibration of the internal pressure control module

For users on the production line, frequent calibration and comparison of the
pressure control module is an important method to improve test and calibration
uncertainty. The ADT783 can be connected to an external high-precision pressure
module, which can be used for regular comparisons of the internal pressure control
module and also enables automatic calibration of the internal pressure control module.

adt783 with manifold

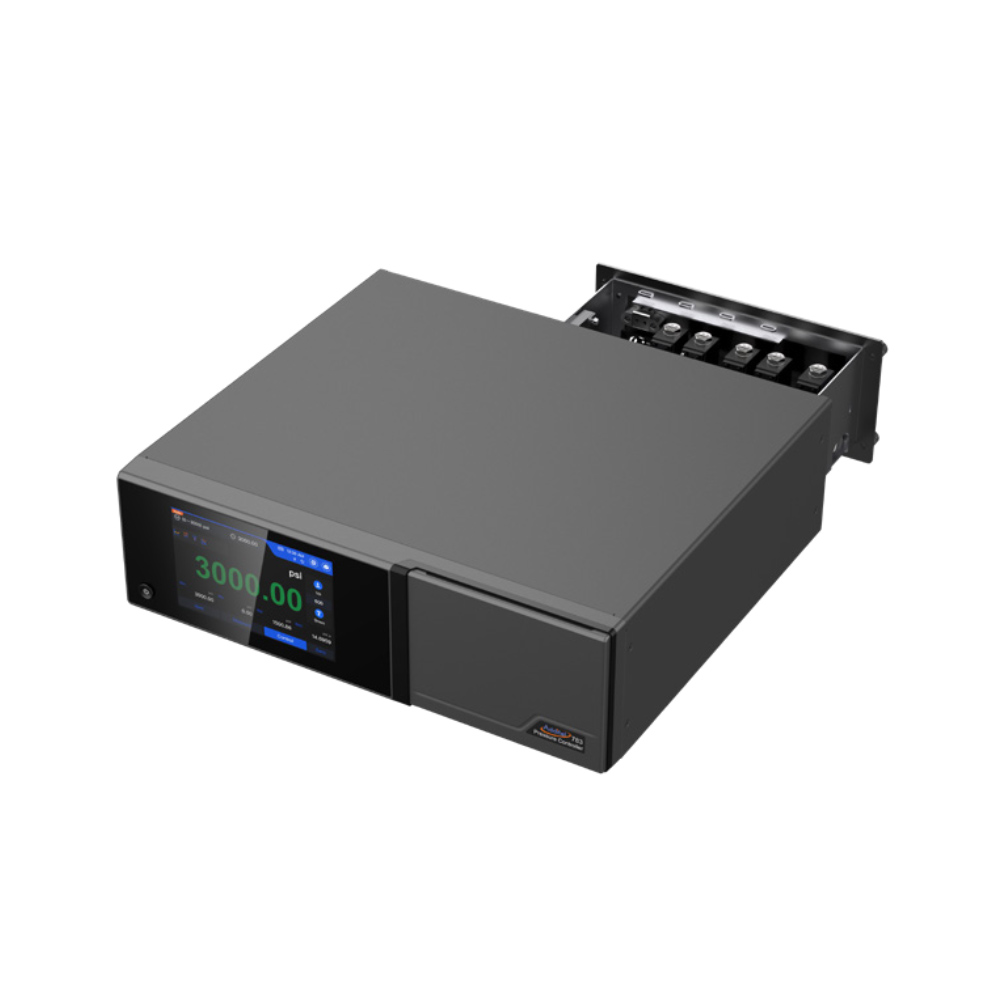

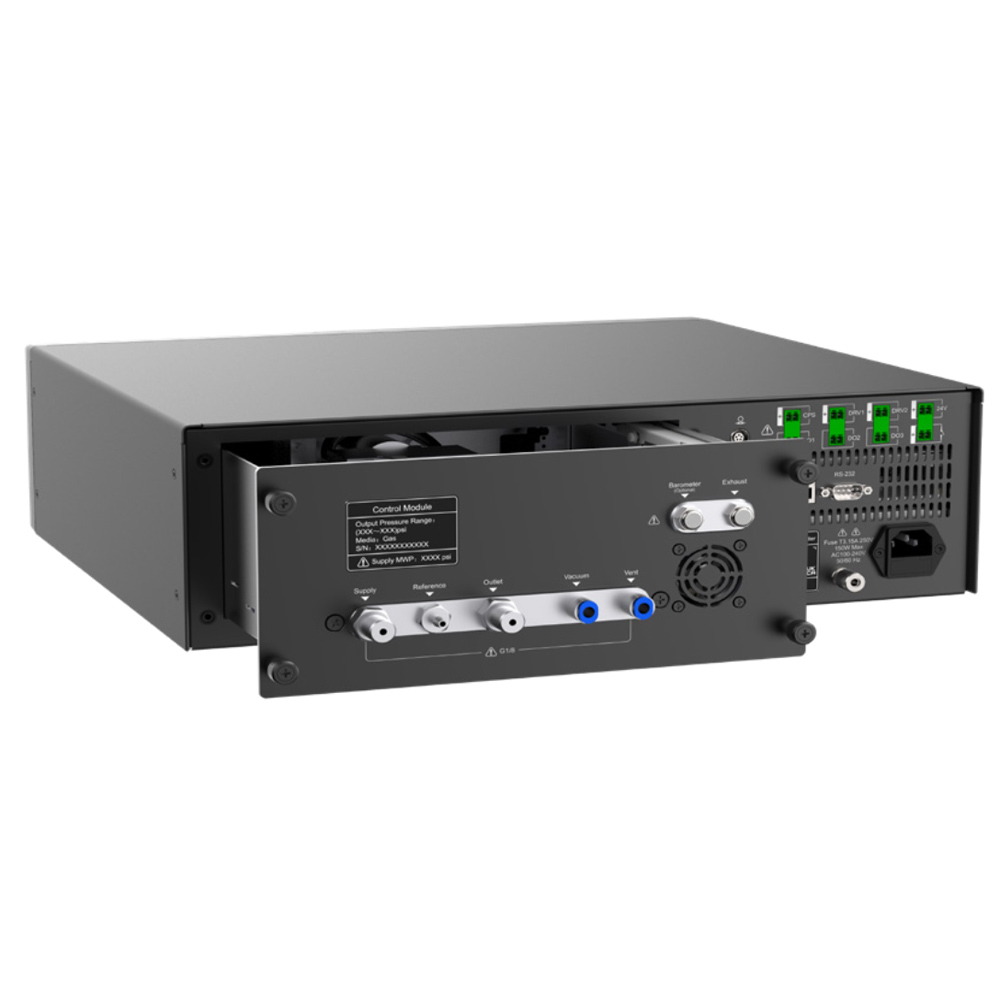

Modular design, easy maintenance

The ADT783 uses various design methods for easy maintenance, such as quick
replacement of the pressure control module, quick replacement of the control
component, easy cleaning of the solenoid valve and fine filtration of
contamination particles.

the adt783 has a modular design

20% pressure step within 10 seconds

For efficient and fast production line testing, verification and calibration,
users have strict requirements for the speed of pressure controllers.
The ADT783 uses advanced control technology to effectively improve control
rate and stability: control response time (typical) ≤10 seconds,
control stability (typical) ≤±(0.001~0.003)%FS.
For more details, refer to the specifications.

the adt783 performing a pressure step

Volt Free Contacts (VFC)

Volt Free Contacts allow control of peripheral devices such as vacuum pumps,
ovens and more. Each VFC option has three independent potential-free
switching contacts (NO/NC). In an Additel instrument, multiple conditions
can be set to trigger a relay and change its contacts, enabling various
actions or control processes.

volt free contacts

Specification for ADT783 pressure modules

The following tables provide information about our ADT151 modular pressure sensors,
which are specifically designed for easy installation in the front bays of the
ADT783 pressure controller. Our specifications for differential pressure modules (DP)
and gauge pressure modules (GP) include accuracy statements for linearity, hysteresis,
repeatability, temperature compensation and annual drift. Both the DP and GP pressure
modules can occasionally be zeroed by the controller to minimize the effect of zero drift.
The specifications apply over a temperature range of 15°C to 35°C. We recommend that
these pressure modules be calibrated annually.

Specification ADT783-D ADT783-1K ADT783-3.5K
Maximum pressure range [1] 36 psi (2.5 bar) 1000 psi (70 bar) 3500 psi (250 bar)
Minimum pressure range -14.35 psi (-0.99 bar)
Accuracy 0.02% FS 0.02% FS or 0.01% FS or 0.01% RD
Control stability [2] < 0.003% FS, typically 0.001% FS
Control response time [3] < 10 seconds
Pressure type Differential pressure Gauge pressure
Switchability between gauge and absolute pressure [4] Optional
Replaceable pressure module bays 2
Maximum pressure control range of internal module -14.5 to 36 psi (-1 to 2.5 bar) -14.5 to 1000 psi (-1 to 70 bar) -14.5 to 3500 psi (-1 to 250 bar)
Minimum pressure control range of internal module ±2 inH2O (±2.5 mbar) ±10 psi (±0.7 bar) -15 psi to 150 psi (-1~10 bar)
Maximum ratio between high and low range N/A 20:1 N/A
Range switching mode Fixed or automatic
Supply source [5] External air source
Maximum supply pressure [6] 4 bar 80 bar 280 bar
Control mode Fast, Standard, Custom
Maximum overshoot < 1% FS
Maximum load volume 1000 ml
Contamination protection system (CPS) Optional
Pressure connection 1/8 BSP F
Air connection – safety pressure limit [7] Air port: 10 bar, vacuum port: 5 bar Air port: 140 bar, vacuum port: 5 bar Air port: 300 bar, vacuum port: 5 bar
Connection filter [8] Optional
[1] The minimum negative pressure range is specified based on an atmospheric pressure value of 1 bar.
[2] To achieve a control stability of 0.001% FS, additional settling time at the target pressure may be required depending on configuration and pressure level.
[3] Air pressure performance is tested with an external load volume of 50 ml, a 20% step, and by measuring the time to reach a stability of 0.005% FS.
[4] After installation of the reference barometric module, users can select between gauge and absolute pressure.
[5] Gas refers to clean, dry nitrogen or air.
[6] For best control performance, the pump source pressure should be set to approximately 110% of the maximum range of the internal pressure control module or 1 bar, whichever is greater.
[7] To prevent the inlet pressure of the air source from exceeding the safety limit, it is recommended to install a suitable pressure relief valve at the outlet of the air source.
[8] All pressure ports are equipped with 40 ~ 100 μm filters.
Standard Compound Gauge Pressure Modules for ADT783-1K / 3.5K
Model Compound gauge pressure [1] [2] Measurement type Medium Precision [2] (% FS) Accuracy [3] [4] (% FS)
1st range 2nd range
ADT151-XX-CP3.5K (-15~3500) psi / (-1~250) bar (-15~1500) psi / (-1~100) bar Sealed gauge G, L 0.007 (0.01) 0.01 (0.02)
ADT151-XX-CP2K (-15~2000) psi / (-1~160) bar (-15~1000) psi / (-1~70) bar
ADT151-XX-CP1K (-15~1000) psi / (-1~70) bar (-15~500) psi / (-1~35) bar Gauge
ADT151-XX-CP500 (-15~500) psi / (-1~35) bar (-15~300) psi / (-1~20) bar
ADT151-XX-CP300 (-15~300) psi / (-1~20) bar (-15~150) psi / (-1~10) bar
ADT151-XX-CP150 (-15~150) psi / (-1~10) bar (-15~60) psi / (-1~4) bar
ADT151-XX-CP100 (-15~100) psi / (-1~7) bar (-15~50) psi / (-1~3.5) bar
ADT151-XX-CP50 (-15~50) psi / (-1~3.5) bar (-15~30) psi / (-1~2) bar 0.01 (0.025)
ADT151-XX-CP30 (-15~30) psi / (-1~2) bar (-15~15) psi / (-1~1) bar
ADT151-XX-CP15 (-15~15) psi / (-1~1) bar (-10~10) psi / (-0.7~0.7) bar
[1] The overpressure limit of all pressure modules is 110% FS and the burst pressure is 200% FS. The burst pressure of CP15M, CP1.5K and CP150 is 130% FS.
[2] Precision: Error components include linearity, hysteresis, repeatability, resolution and temperature compensation.
[3] For full-scale accuracy, FS refers to the upper range limit minus the lower range limit.
[4] Accuracy: Error components include linearity, hysteresis, repeatability, resolution, reference standard measurement uncertainty, annual drift and temperature compensation, k=2.

Differential Pressure Modules for the ADT783-D
Model [1] Differential pressure Measurement type Pressure medium Precision [3] [4] (% FS) Accuracy [5] (% FS)
1st range [1] 2nd range
ADT151-XX-DP1K (-400~1000) inH2O (-1000~2500) mbar (-400~400) inH2O (-1000~1000) mbar DP G 0.015 0.02
ADT151-XX-DP800 (-400~800) inH2O (-1000~2000) mbar (-400~400) inH2O (-1000~1000) mbar
ADT151-XX-DP400 (-400~400) inH2O (-1000~1000) mbar (-200~200) inH2O (-500~500) mbar
ADT151-XX-DP300 (-300~300) inH2O (-700~700) mbar (-150~150) inH2O (-350~350) mbar
ADT151-XX-DP200 (-200~200) inH2O (-500~500) mbar (-100~100) inH2O (-250~250) mbar
ADT151-XX-DP150 (-150~150) inH2O (-350~350) mbar (-100~100) inH2O (-250~250) mbar
ADT151-XX-DP100 (-100~100) inH2O (-250~250) mbar (-50~50) inH2O (-125~125) mbar
ADT151-XX-DP50 (-50~50) inH2O (-125~125) mbar (-30~30) inH2O (-75~75) mbar
ADT151-XX-DP30 (-30~30) inH2O (-75~75) mbar (-20~20) inH2O (-50~50) mbar
ADT151-XX-DP20 [6] (-20~20) inH2O (-50~50) mbar (-10~10) inH2O (-25~25) mbar
ADT151-XX-DP10 [6] (-10~10) inH2O (-25~25) mbar (-5~5) inH2O (-10~10) mbar
ADT151-XX-DP5 [6] (-5~5) inH2O (-10~10) mbar (-2~2) inH2O (-5~5) mbar 0.025 0.05
ADT151-XX-DP2 [6] (-2~2) inH2O (-5~5) mbar (-1~1) inH2O (-2.5~2.5) mbar
[1] DP300 to DP1000 …
[2] The overpressure limit …
[3] FS means …
[4] Precision …
[5] Accuracy …
[6] Recommended calibration interval: 180 days.

High-precision Compound Gauge Pressure Module Specification for ADT783-1K / 3.5K
Model Gauge pressure range [1] Absolute pressure range [2] Measurement type Pressure medium Precision [3] [4] Accuracy [5] [6]
ADT151-XX-CP3.5KM (-15~3500) psi (0~3515) psi Sealed gauge G, L 0.008% of reading or 0.004% FS (whichever is greater) 0.01% of reading or 0.005% FS (whichever is greater)
ADT151-XX-CP2KM (-15~2000) psi (0~2015) psi
ADT151-XX-CP1.5KM (-15~1500) psi (0~1515) psi Gauge
ADT151-XX-CP1KM (-15~1000) psi (0~1015) psi
ADT151-XX-CP500M (-15~500) psi (0~515) psi
ADT151-XX-CP300M (-15~300) psi (0~315) psi
ADT151-XX-CP150M (-15~150) psi (0~165) psi
ADT151-XX-CP100M (-15~100) psi (0~115) psi
ADT151-XX-CP50M (-15~50) psi (0~65) psi
ADT151-XX-CP30M (-15~30) psi (0~45) psi
[1] Overpressure limit …
[2] Absolute pressure is …
[3] FS refers …
[4] Precision …
[5] Accuracy …
[6] Accuracy: Error components …

Barometric Specifications
Model [1] Absolute pressure range Accuracy
ADT151-BP (60~110) kPa ±22 Pa
ADT151-BPH ±10 Pa
[1] Optional barometric pressure module …

General Specifications
Specification Description
Power requirements AC100~240 V, 50/60 Hz
Fuse: T3.15A 250 V AC
Max. power consumption: 150 W
Size / weight Chassis size: 440(W) × 133(H) × 380(D) mm
Rack mount: 3U-19” rack, horizontal
Chassis weight: 16.9 kg
Pressure module weight: 0.4 kg
Environment Operating ambient: 10°C ~ 50°C
Storage temperature: -20°C ~ 70°C
Operating humidity: 5%RH ~ 95%RH, non-condensing
Altitude (operation): < 2000 m
Ingress protection: IP20, indoor use only
Vibration level: 2 G
Impact intensity: 4 G
Warmup time: 15 minutes
Machine drop height: 250 mm
Conformity CE, UKCA

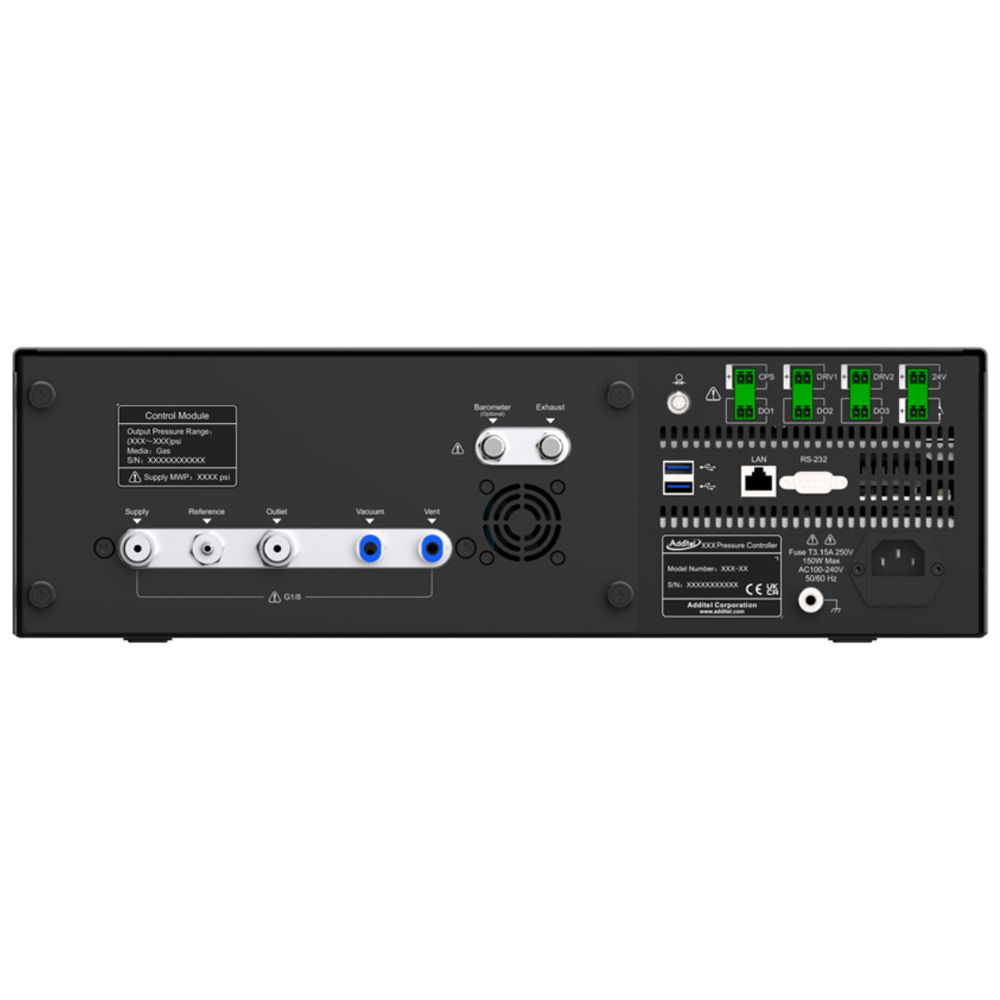

Communications RS232, USB-A × 2, LAN
Supports USB-based peripherals (WiFi, Bluetooth, GPIB, mouse, keyboard, etc.)
SCPI command set compatible with ADT780, PACE5000/6000, DRUCK DPI520; user customizable
External drive valve port 3-channel external drive valves, green terminal connector with lock
Maximum drive capability 24 V / 12 W, 30 V max
One channel fixed for the CPS contamination prevention device; remaining two channels can control an external vacuum pump and isolation valve
I/O alarm port 3-channel, green terminal connector with lock
Volt-free NO/NC relay, max. 24 V / 0.5 A, 30 V max
Pressure switch test port One channel, green terminal connector with lock
Maximum load 24 V / 0.1 A, 30 V max
Supports mechanical and electronic switch testing

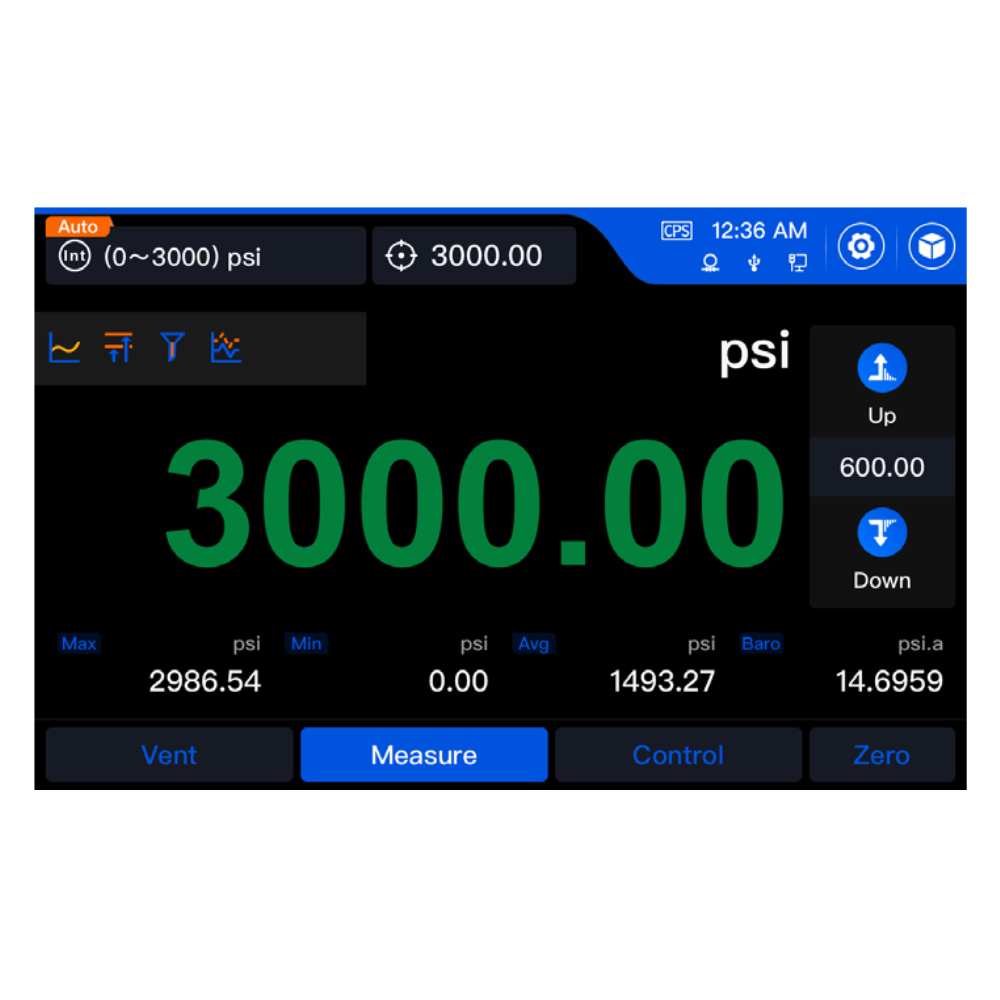

Display 7-inch capacitive touch screen, 1280 × 800 resolution, reflective panel, switchable black/white background
Communication update rate: 10 times per second
Display refresh rate: 5 times per second
Maximum pressure value display: +9,999,999; number of digits adjustable
External pressure module Measurement only
Internal pressure control module port Opening the cabin door automatically releases pressure; inside the cabin there are 3 module bays (high pressure, low pressure and barometric module bays)


Additel 783 Pressure Controller
Additel 783 Pressure Controller - Image 2

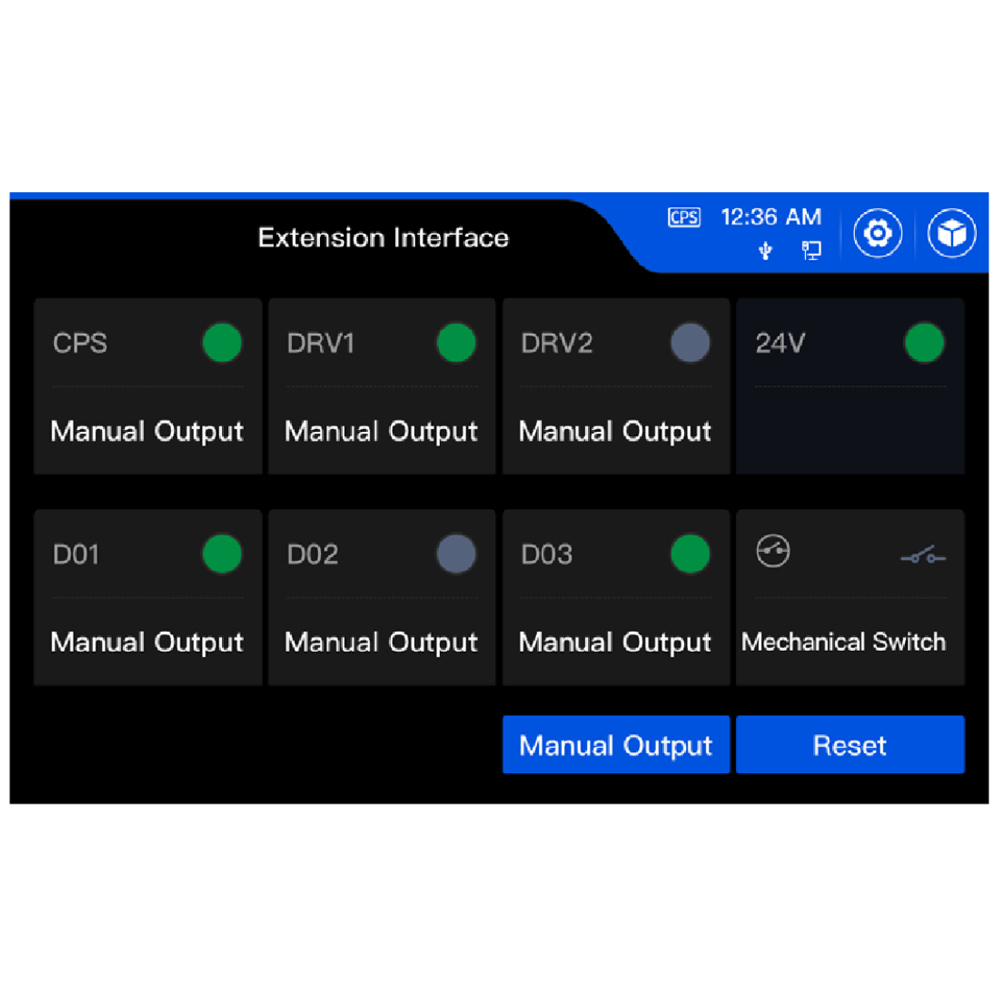

Additel 783 Pressure Controller - Image 3
Additel 783 Pressure Controller - Image 4
Additel 783 Pressure Controller - Image 5
Additel 783 Pressure Controller - Image 6
Additel 783 Pressure Controller - Image 7
Additel 783 Pressure Controller - Image 8
Technical advice: 03303 / 50 40 66

Technical advice for this product


    In accordance with the General Data Protection Regulation (GDPR), we are obliged to inform you about the collection of data. We meet this obligation by referring to our privacy notice.



    Additel 783 Pressure Controller

    Additel 783 Pressure Controller
    Additel 783 Pressure Controller - Image 2
    Additel 783 Pressure Controller - Image 3
    Additel 783 Pressure Controller - Image 4
    Additel 783 Pressure Controller - Image 5
    Additel 783 Pressure Controller - Image 6
    Additel 783 Pressure Controller - Image 7
    Additel 783 Pressure Controller - Image 8
    • Pressure ranges from -14.35 psi (-0.99 bar) to 3600 psi (250 bar).
    • Two removable internal pressure modules with multi-range selection.
    • Available accuracies of 0.02% FS, 0.1% FS, and 0.011% RD.
    • Control stability of 0.003% FS.
    • Ultra-fast pressure control.
    • Absolute and gauge pressure measurement.
    • WiFi-enabled communication.
    • Large 7-inch color touchscreen.
    • Optional barometric module.
    • User-friendly, icon-driven interface.
    • I/O alarm function.
    Datasheet
    Datasheet

    .

    .

    Add to your Quote List
    Videos

    These modular pressure controllers combine state-of-the-art control and measurement technology,
    modular design and user-friendly features. The Additel 783 controller series is optimized for
    high-speed pressure generation without compromising accuracy and stability. For users who need
    automated production, testing and calibration, Additel has you covered with these controllers.
    The ADT783 can be quickly equipped with two control modules and a reference barometric module
    to cover a wide pressure range. The Additel 783 series offers three base units to choose from,
    ranging from 3500 psi (250 bar) down to low differential pressure.

    ADT783-D
    The ADT783-D is designed for the calibration of differential and gauge pressure from ±2 inH2O (±5 mbar) up to 36 psi (2.5 bar). Choose between one or two pressure control modules. Each module features dual-range calibration, which extends measurement accuracy within each module. This unit has a control stability of 0.003%FS. In addition to the two control modules, an optional barometric module can be added to enable gauge and absolute pressure measurements.

    ADT783-1K
    The ADT783-1K is designed for the calibration of gauge pressure from -14.35 psi (-0.99 bar) up to 1000 psi (70 bar). Choose between one or two pressure control modules. Each module features dual-range calibration, which extends measurement accuracy within each module. This unit has a control stability of 0.003%FS. In addition to the two control modules, an optional barometric module can be added to enable gauge and absolute pressure measurements.

    ADT783-3.5K
    The ADT783-3.5K is designed for the calibration of gauge pressure from -14.35 psi (-0.99 bar) up to 3500 psi (250 bar). Choose between one or two pressure control modules. Each module features dual-range calibration, which extends measurement accuracy within each module. This unit has a control stability of 0.003%FS. In addition to the two control modules, an optional barometric module can be added to enable gauge and absolute pressure measurements.

    Application Images of the Additel 783

    Flexible modular design

    To cover a wide range of pressures and simplify calibration tasks,
    the ADT783 can be quickly equipped with two control modules and a reference
    barometric module. Each module provides a dual range or dual accuracy.
    Such a flexible modular design allows users to configure different modules
    according to their cost, pressure range and accuracy requirements.
    The quick-connect function greatly simplifies the controller’s calibration work.

    		adt783 with modules visible

    Quick-change pressure modules (30 seconds)

    The Additel 151 pressure control modules can be installed or replaced
    in 30 seconds or less. Simply open the top edge of the housing. When the
    door opens, the controller automatically releases pressure, allowing safe
    removal and insertion of the ADT151 modules.

    		adt783 while pulling a module out

    Convenient automatic calibration of the internal pressure control module

    For users on the production line, frequent calibration and comparison of the
    pressure control module is an important method to improve test and calibration
    uncertainty. The ADT783 can be connected to an external high-precision pressure
    module, which can be used for regular comparisons of the internal pressure control
    module and also enables automatic calibration of the internal pressure control module.

    		adt783 with manifold

    Modular design, easy maintenance

    The ADT783 uses various design methods for easy maintenance, such as quick
    replacement of the pressure control module, quick replacement of the control
    component, easy cleaning of the solenoid valve and fine filtration of
    contamination particles.

    		the adt783 has a modular design

    20% pressure step within 10 seconds

    For efficient and fast production line testing, verification and calibration,
    users have strict requirements for the speed of pressure controllers.
    The ADT783 uses advanced control technology to effectively improve control
    rate and stability: control response time (typical) ≤10 seconds,
    control stability (typical) ≤±(0.001~0.003)%FS.
    For more details, refer to the specifications.

    		the adt783 performing a pressure step

    Volt Free Contacts (VFC)

    Volt Free Contacts allow control of peripheral devices such as vacuum pumps,
    ovens and more. Each VFC option has three independent potential-free
    switching contacts (NO/NC). In an Additel instrument, multiple conditions
    can be set to trigger a relay and change its contacts, enabling various
    actions or control processes.

    		volt free contacts

    Specification for ADT783 pressure modules

    The following tables provide information about our ADT151 modular pressure sensors,
    which are specifically designed for easy installation in the front bays of the
    ADT783 pressure controller. Our specifications for differential pressure modules (DP)
    and gauge pressure modules (GP) include accuracy statements for linearity, hysteresis,
    repeatability, temperature compensation and annual drift. Both the DP and GP pressure
    modules can occasionally be zeroed by the controller to minimize the effect of zero drift.
    The specifications apply over a temperature range of 15°C to 35°C. We recommend that
    these pressure modules be calibrated annually.

    Specification ADT783-D ADT783-1K ADT783-3.5K
    Maximum pressure range [1] 36 psi (2.5 bar) 1000 psi (70 bar) 3500 psi (250 bar)
    Minimum pressure range -14.35 psi (-0.99 bar)
    Accuracy 0.02% FS 0.02% FS or 0.01% FS or 0.01% RD
    Control stability [2] < 0.003% FS, typically 0.001% FS
    Control response time [3] < 10 seconds
    Pressure type Differential pressure Gauge pressure
    Switchability between gauge and absolute pressure [4] Optional
    Replaceable pressure module bays 2
    Maximum pressure control range of internal module -14.5 to 36 psi (-1 to 2.5 bar) -14.5 to 1000 psi (-1 to 70 bar) -14.5 to 3500 psi (-1 to 250 bar)
    Minimum pressure control range of internal module ±2 inH2O (±2.5 mbar) ±10 psi (±0.7 bar) -15 psi to 150 psi (-1~10 bar)
    Maximum ratio between high and low range N/A 20:1 N/A
    Range switching mode Fixed or automatic
    Supply source [5] External air source
    Maximum supply pressure [6] 4 bar 80 bar 280 bar
    Control mode Fast, Standard, Custom
    Maximum overshoot < 1% FS
    Maximum load volume 1000 ml
    Contamination protection system (CPS) Optional
    Pressure connection 1/8 BSP F
    Air connection – safety pressure limit [7] Air port: 10 bar, vacuum port: 5 bar Air port: 140 bar, vacuum port: 5 bar Air port: 300 bar, vacuum port: 5 bar
    Connection filter [8] Optional
    [1] The minimum negative pressure range is specified based on an atmospheric pressure value of 1 bar.
    [2] To achieve a control stability of 0.001% FS, additional settling time at the target pressure may be required depending on configuration and pressure level.
    [3] Air pressure performance is tested with an external load volume of 50 ml, a 20% step, and by measuring the time to reach a stability of 0.005% FS.
    [4] After installation of the reference barometric module, users can select between gauge and absolute pressure.
    [5] Gas refers to clean, dry nitrogen or air.
    [6] For best control performance, the pump source pressure should be set to approximately 110% of the maximum range of the internal pressure control module or 1 bar, whichever is greater.
    [7] To prevent the inlet pressure of the air source from exceeding the safety limit, it is recommended to install a suitable pressure relief valve at the outlet of the air source.
    [8] All pressure ports are equipped with 40 ~ 100 μm filters.
    Standard Compound Gauge Pressure Modules for ADT783-1K / 3.5K
    Model Compound gauge pressure [1] [2] Measurement type Medium Precision [2] (% FS) Accuracy [3] [4] (% FS)
    1st range 2nd range
    ADT151-XX-CP3.5K (-15~3500) psi / (-1~250) bar (-15~1500) psi / (-1~100) bar Sealed gauge G, L 0.007 (0.01) 0.01 (0.02)
    ADT151-XX-CP2K (-15~2000) psi / (-1~160) bar (-15~1000) psi / (-1~70) bar
    ADT151-XX-CP1K (-15~1000) psi / (-1~70) bar (-15~500) psi / (-1~35) bar Gauge
    ADT151-XX-CP500 (-15~500) psi / (-1~35) bar (-15~300) psi / (-1~20) bar
    ADT151-XX-CP300 (-15~300) psi / (-1~20) bar (-15~150) psi / (-1~10) bar
    ADT151-XX-CP150 (-15~150) psi / (-1~10) bar (-15~60) psi / (-1~4) bar
    ADT151-XX-CP100 (-15~100) psi / (-1~7) bar (-15~50) psi / (-1~3.5) bar
    ADT151-XX-CP50 (-15~50) psi / (-1~3.5) bar (-15~30) psi / (-1~2) bar 0.01 (0.025)
    ADT151-XX-CP30 (-15~30) psi / (-1~2) bar (-15~15) psi / (-1~1) bar
    ADT151-XX-CP15 (-15~15) psi / (-1~1) bar (-10~10) psi / (-0.7~0.7) bar
    [1] The overpressure limit of all pressure modules is 110% FS and the burst pressure is 200% FS. The burst pressure of CP15M, CP1.5K and CP150 is 130% FS.
    [2] Precision: Error components include linearity, hysteresis, repeatability, resolution and temperature compensation.
    [3] For full-scale accuracy, FS refers to the upper range limit minus the lower range limit.
    [4] Accuracy: Error components include linearity, hysteresis, repeatability, resolution, reference standard measurement uncertainty, annual drift and temperature compensation, k=2.

    Differential Pressure Modules for the ADT783-D
    Model [1] Differential pressure Measurement type Pressure medium Precision [3] [4] (% FS) Accuracy [5] (% FS)
    1st range [1] 2nd range
    ADT151-XX-DP1K (-400~1000) inH2O (-1000~2500) mbar (-400~400) inH2O (-1000~1000) mbar DP G 0.015 0.02
    ADT151-XX-DP800 (-400~800) inH2O (-1000~2000) mbar (-400~400) inH2O (-1000~1000) mbar
    ADT151-XX-DP400 (-400~400) inH2O (-1000~1000) mbar (-200~200) inH2O (-500~500) mbar
    ADT151-XX-DP300 (-300~300) inH2O (-700~700) mbar (-150~150) inH2O (-350~350) mbar
    ADT151-XX-DP200 (-200~200) inH2O (-500~500) mbar (-100~100) inH2O (-250~250) mbar
    ADT151-XX-DP150 (-150~150) inH2O (-350~350) mbar (-100~100) inH2O (-250~250) mbar
    ADT151-XX-DP100 (-100~100) inH2O (-250~250) mbar (-50~50) inH2O (-125~125) mbar
    ADT151-XX-DP50 (-50~50) inH2O (-125~125) mbar (-30~30) inH2O (-75~75) mbar
    ADT151-XX-DP30 (-30~30) inH2O (-75~75) mbar (-20~20) inH2O (-50~50) mbar
    ADT151-XX-DP20 [6] (-20~20) inH2O (-50~50) mbar (-10~10) inH2O (-25~25) mbar
    ADT151-XX-DP10 [6] (-10~10) inH2O (-25~25) mbar (-5~5) inH2O (-10~10) mbar
    ADT151-XX-DP5 [6] (-5~5) inH2O (-10~10) mbar (-2~2) inH2O (-5~5) mbar 0.025 0.05
    ADT151-XX-DP2 [6] (-2~2) inH2O (-5~5) mbar (-1~1) inH2O (-2.5~2.5) mbar
    [1] DP300 to DP1000 …
    [2] The overpressure limit …
    [3] FS means …
    [4] Precision …
    [5] Accuracy …
    [6] Recommended calibration interval: 180 days.

    High-precision Compound Gauge Pressure Module Specification for ADT783-1K / 3.5K
    Model Gauge pressure range [1] Absolute pressure range [2] Measurement type Pressure medium Precision [3] [4] Accuracy [5] [6]
    ADT151-XX-CP3.5KM (-15~3500) psi (0~3515) psi Sealed gauge G, L 0.008% of reading or 0.004% FS (whichever is greater) 0.01% of reading or 0.005% FS (whichever is greater)
    ADT151-XX-CP2KM (-15~2000) psi (0~2015) psi
    ADT151-XX-CP1.5KM (-15~1500) psi (0~1515) psi Gauge
    ADT151-XX-CP1KM (-15~1000) psi (0~1015) psi
    ADT151-XX-CP500M (-15~500) psi (0~515) psi
    ADT151-XX-CP300M (-15~300) psi (0~315) psi
    ADT151-XX-CP150M (-15~150) psi (0~165) psi
    ADT151-XX-CP100M (-15~100) psi (0~115) psi
    ADT151-XX-CP50M (-15~50) psi (0~65) psi
    ADT151-XX-CP30M (-15~30) psi (0~45) psi
    [1] Overpressure limit …
    [2] Absolute pressure is …
    [3] FS refers …
    [4] Precision …
    [5] Accuracy …
    [6] Accuracy: Error components …

    Barometric Specifications
    Model [1] Absolute pressure range Accuracy
    ADT151-BP (60~110) kPa ±22 Pa
    ADT151-BPH ±10 Pa
    [1] Optional barometric pressure module …

    General Specifications
    Specification Description
    Power requirements AC100~240 V, 50/60 Hz
    Fuse: T3.15A 250 V AC
    Max. power consumption: 150 W
    Size / weight Chassis size: 440(W) × 133(H) × 380(D) mm
    Rack mount: 3U-19” rack, horizontal
    Chassis weight: 16.9 kg
    Pressure module weight: 0.4 kg
    Environment Operating ambient: 10°C ~ 50°C
    Storage temperature: -20°C ~ 70°C
    Operating humidity: 5%RH ~ 95%RH, non-condensing
    Altitude (operation): < 2000 m
    Ingress protection: IP20, indoor use only
    Vibration level: 2 G
    Impact intensity: 4 G
    Warmup time: 15 minutes
    Machine drop height: 250 mm
    Conformity CE, UKCA
    Communications RS232, USB-A × 2, LAN
    Supports USB-based peripherals (WiFi, Bluetooth, GPIB, mouse, keyboard, etc.)
    SCPI command set compatible with ADT780, PACE5000/6000, DRUCK DPI520; user customizable
    External drive valve port 3-channel external drive valves, green terminal connector with lock
    Maximum drive capability 24 V / 12 W, 30 V max
    One channel fixed for the CPS contamination prevention device; remaining two channels can control an external vacuum pump and isolation valve
    I/O alarm port 3-channel, green terminal connector with lock
    Volt-free NO/NC relay, max. 24 V / 0.5 A, 30 V max
    Pressure switch test port One channel, green terminal connector with lock
    Maximum load 24 V / 0.1 A, 30 V max
    Supports mechanical and electronic switch testing
    Display 7-inch capacitive touch screen, 1280 × 800 resolution, reflective panel, switchable black/white background
    Communication update rate: 10 times per second
    Display refresh rate: 5 times per second
    Maximum pressure value display: +9,999,999; number of digits adjustable
    External pressure module Measurement only
    Internal pressure control module port Opening the cabin door automatically releases pressure; inside the cabin there are 3 module bays (high pressure, low pressure and barometric module bays)


    Technical advice: 03303 / 50 40 66

    Technical advice for this product


      In accordance with the General Data Protection Regulation (GDPR), we are obliged to inform you about the collection of data. We meet this obligation by referring to our privacy notice.



      Diese Website benutzt Cookies. Wenn du die Website weiter nutzt, gehen wir von deinem Einverständnis aus.
      More info
